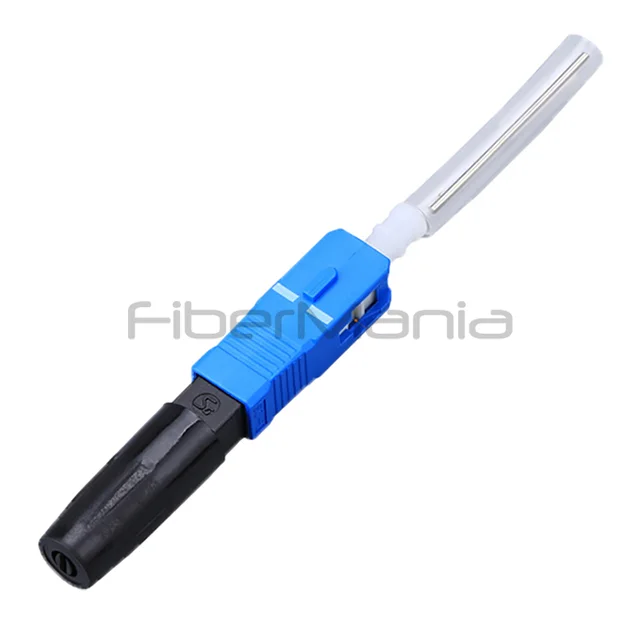

SC/UPC Quick Assembly Connector Hot Melt Type, Single Mode 9/125, Blue

Name: SC/UPC Quick Assembly Connector Hot Melt | FiberMania
SKU: QCSCSMBLH

P/N: QCSCSMBLH

Categories:

Quick Connectors

Product Highlights:

Fast, field-friendly hot-melt SC/UPC quick-assembly connector for single-mode 9/125µm fiber — terminate in minutes with no epoxy or polishing.
Universal cable support (0.9 / 2.0 / 3.0 mm) and a factory-preinstalled fiber stub deliver consistent low loss (≤0.30 dB) and high return loss for reliable on-site links.
Re-terminable up to three times and RoHS-compliant — ideal for FTTH, patch panels and rapid restoration work.

Description

FiberMania SC/UPC Quick Assembly Connector (Hot-Melt Type) is a professional field-termination solution designed to speed up single-mode fiber deployments and repairs. The connector ships with a factory-preinstalled fiber stub and uses a hot-melt mechanical splice method so installers can complete precise terminations without epoxy, polishing or expensive fusion splicing equipment. Its universal design accepts 0.9 mm tight-buffered fibers as well as 2.0 mm and 3.0 mm jacketed drop cables, making it versatile for FTTH drop, indoor cabling and patch-panel terminations.

Specification

Connector type	SC/UPC simplex (hot-melt quick assembly)
Fiber type / mode	Single-mode 9/125 µm
Compatible cable diameters	0.9 mm (tight buffer), 2.0 mm, 3.0 mm
Insertion loss (typical / max)	≤0.30 dB (1310 nm & 1550 nm)
Return loss	≥50 dB (UPC, typical)
Operation / termination time	≈100 seconds (no fiber cut required)
Re-termination capability	Up to 3 attempts
Mechanical durability (mating cycles)	~500 cycles
Boot sizes available	0.9 mm, 2.0 mm, 3.0 mm
Applicable use	FTTH drop cable, indoor cable, patch panels
Splice method	Hot-melt mechanical splice with pre-installed stub
Max optical input power	(typical) 500–1000 mW — confirm for high-power apps
Operating temperature	−20°C to +70°C (industry typical; available extended ranges on request)
Storage temperature	−40°C to +85°C
Tensile strength	Industry-typical (≥10 N recommended) — testable per request
Housing color	Blue
Compliance	RoHS; designed per Telcordia/IEC connector guidelines

Features

Pre-installed fiber stub for repeatable optical performance.
Hot-melt mechanical splice — no epoxy, no polishing, no specialized tools required.
Wide cable compatibility: 0.9 mm / 2.0 mm / 3.0 mm.
Low insertion loss: ≤0.30 dB (1310 nm & 1550 nm).
High return loss typical for UPC: ≥50 dB (factory verified).
Fast operation time: ≈100 seconds (no fiber cutting required).
Allows up to three re-terminations for field correction.
Mechanical durability: ~500 mating cycles.
RoHS compliant; packed for safe field transport.

Applications

FTTH drop cable termination and customer-premises installations.
Fiber patch panels and distribution frames.
Rapid restoration and emergency repair of fiber links.
LAN / access network wiring and indoor backbone connections.
Industrial and military comms where fast on-site termination is required.

Frequently Asked Questions (FAQ)

Q: What cable diameters does this connector accept?
A: It accepts 0.9 mm tight-buffered fiber and 2.0 mm / 3.0 mm jacketed drop cables (select boot accordingly).

Q: Do I need a fusion splicer or polishing tools?
A: No — the hot-melt mechanical splice design eliminates epoxy, polishing and fusion splicing for field terminations.

Q: How long does termination take?
A: Typical on-site termination time is about 100 seconds (varies with operator experience).

Q: What are the optical performance figures?
A: Insertion loss ≤0.30 dB (1310 & 1550 nm); typical return loss for UPC style ≥50 dB (factory measured).

Q: Can I re-terminate if the first attempt fails?
A: Yes — the connector supports up to three re-termination attempts before replacement is recommended.
