FC/UPC Quick Assembly Connector, OM1 62.5/125, For Black, 0.9mm, 2.0mm, 3.0mm Cable

Name: FC/UPC Quick Assembly Connector OM1 | FiberMania
SKU: QCFCM1BK

P/N: QCFCM1BK

Categories:

Quick Connectors

Product Highlights:

FC/UPC OM1 quick assembly connector designed for fast, low-loss termination of multimode fiber.
Supports 0.9mm, 2.0mm, and 3.0mm cables with integrated strain relief for mechanical protection.
Provides reliable optical performance for LAN, telecom, broadband, CATV, and FTTx applications.
FiberMania offers OEM/ODM customization and private-label solutions

Description

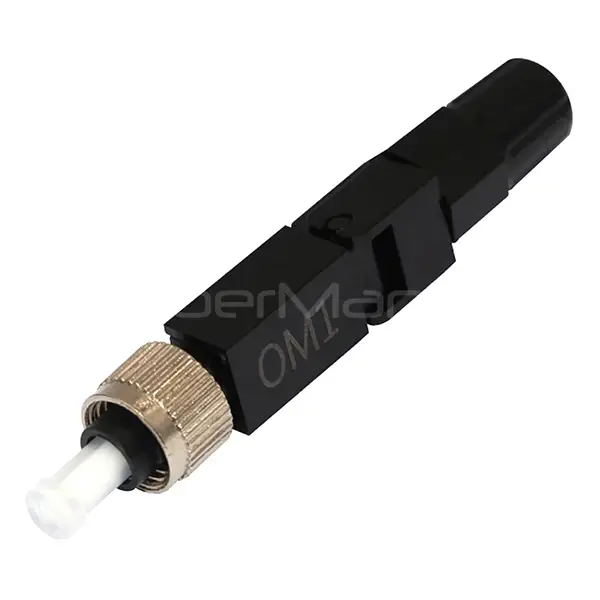

The FC/UPC Quick Assembly Connector for OM1 62.5/125µm multimode fiber is designed to streamline field termination while ensuring reliable optical performance. Pre-polished and equipped with a factory-installed fiber stub filled with index-matching gel, this connector delivers precise alignment, low insertion loss, and stable return loss suitable for LAN, WAN, and FTTx applications. Its robust black housing provides mechanical protection and is paired with a strain-relief boot to prevent micro-bending and mechanical stress on the fiber.

This connector supports multiple cable diameters including 0.9mm, 2.0mm, and 3.0mm, making it versatile for patch cords, indoor cabling, and FTTx installations. The FC interface enables secure threaded connections, ensuring reliable mating and minimal signal reflection. Designed for fast field termination, it allows technicians to quickly install multimode connections without complex tools or polishing procedures, improving productivity while maintaining network performance.

Specification

Connector Type	FC/UPC Quick Assembly
Fiber Mode	OM1 62.5/125
Ferrule Diameter	2.5 mm
Housing Material	Plastic
Boot Diameter	0.9/2.0/3.0 mm
Ferrule Material	Ceramic
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Durability	≥ 1000 mating cycles
Alignment Sleeve	Ceramic
Operating Temperature	-40°C to +85°C
Compliance	RoHS compliant
Color	Black

Features

FC/UPC interface for OM1 62.5/125µm multimode fiber
Quick, tool-free field termination
Pre-polished ferrule with factory-installed fiber stub
Built-in strain-relief boot for mechanical protection
Compatible with 0.9mm, 2.0mm, and 3.0mm cables
Low-loss and precise optical alignment with index-matching gel
RoHS compliant

Application

LAN and WAN network deployments
Telecommunications infrastructure
Broadband and CATV systems
FTTx distribution and customer-premise installations
Fiber patch cord and pigtail assembly
Optical testing and measurement equipment

FAQ

Q: Does this connector require polishing during installation?
A: No, it is pre-polished with a factory-installed fiber stub for quick termination.

Q: Which cable diameters are supported?
A: Supports 0.9mm, 2.0mm, and 3.0mm multimode fibers.

Q: Can the housing or boot color be customized?
A: Yes, FiberMania provides OEM/ODM customization including colors, logos, and packaging.

Q: What applications is this connector best suited for?
A: Ideal for fast field termination, patch cord assembly, FTTx, LAN, and telecom networks.

Q: How durable is this connector?
A: Supports over 1,000 mating cycles while maintaining low insertion loss and high return loss.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
