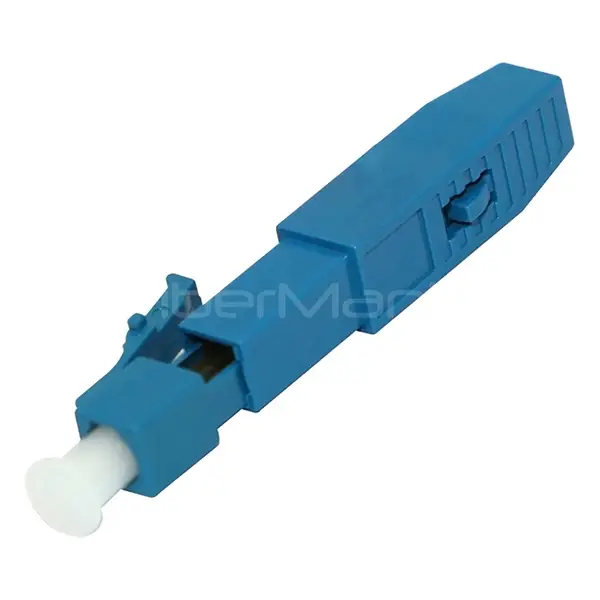

LC/UPC Quick Assembly Connector, Single Mode 9/125, Blue, For 0.9mm Cable
Categories:
Product Highlights:
-
Quick field termination for 0.9mm single-mode fibers without epoxy or polishing.
-
Low insertion loss ≤0.30 dB, high return loss (UPC >50 dB, APC >65 dB).
-
Pre-installed stub enables fast installation and up to three re-terminations.
Table of Contents
Description
The LC/UPC Quick Assembly Connector (Single Mode 9/125, Blue) is designed for rapid field termination of 0.9mm tight buffer fibers. With a pre-installed fiber stub, this connector eliminates the need for epoxy or polishing, allowing installers to complete high-quality terminations in minutes without special tools. It is ideal for FTTH deployments, fiber patch panels, and access networks, providing reliable single-mode connections with low insertion loss and high return loss.
Specification
| Connector Type | LC/UPC Simplex |
|---|---|
| Fiber Type | Single-mode 9/125 µm |
| Boot Size | 0.9 mm |
| Insertion Loss | ≤ 0.30 dB (1310 nm & 1550 nm) |
| Return Loss | UPC >50 dB, APC >65 dB |
| Applicable Cable | FTTH drop cable / Indoor cable |
| Operation Time | ~100 seconds (no fiber cut) |
| Mechanical Durability | 500 mating cycles |
| Color | Blue |
| Compliance | UL, RoHS |
Features
-
Pre-installed fiber stub for easy and fast termination.
-
No epoxy or polishing required; installation without special tools.
-
Supports up to three re-terminations.
-
Quick field assembly, allowing direct connection to 0.9mm FTTH drop cables.
-
RoHS-compliant materials.
-
Can be installed on-site without splicing or specialized equipment.
Applications
-
Fiber patch panels and distribution frames.
-
FTTH and access network terminations.
-
LAN and enterprise fiber connections.
-
Industry and military fiber deployments.
-
FTTH outlet and on-site fiber connections.
Frequently Asked Questions
Q1: What fiber type does this connector support?
A1: Single-mode 9/125 µm tight buffer fiber, 0.9 mm diameter.
Q2: Does it require epoxy or polishing?
A2: No, the connector has a pre-installed fiber stub and requires no epoxy or polishing.
Q3: What is the insertion loss?
A3: ≤0.30 dB at 1310 nm & 1550 nm.
Q4: How durable is the connector?
A4: Mechanical durability is at least 500 mating cycles.
Q5: Can it be used for FTTH drop cables?
A5: Yes, it is designed for direct connection to 0.9 mm FTTH drop cables.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
