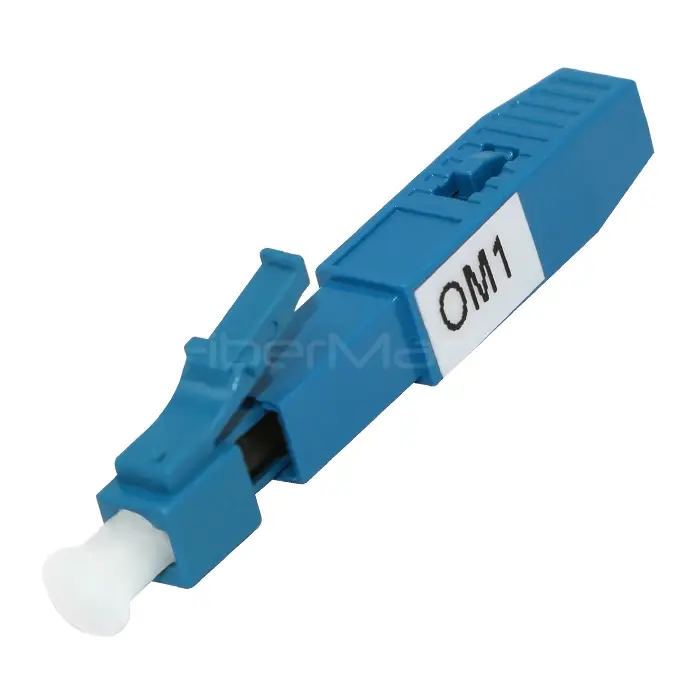

LC/UPC Quick Assembly Connector, OM1 62.5/125, Blue, For 0.9mm Cable
Categories:
Product Highlights:
-
LC/UPC quick assembly connector for OM1 62.5/125 µm multimode fiber with 0.9 mm blue boot for fast, low-loss field termination.
-
Pre-installed fiber stub ensures precise alignment and reliable optical performance.
-
Ideal for FTTH, LAN, WAN, and indoor network applications.
-
FiberMania offers OEM/ODM services including custom boot sizes, colors, branding, and pre-terminated assemblies.
Table of Contents
Description
The LC/UPC Quick Assembly Connector from FiberMania is designed for fast, efficient termination of OM1 62.5/125 µm multimode fibers in the field. Specifically engineered for 0.9 mm tight-buffered fiber, this connector enables installers to create reliable fiber connections in minutes without epoxy, polishing, or special tools. The pre-installed fiber stub with gel ensures precise alignment and low insertion loss, making it ideal for FTTH drop cables, patch panels, and indoor network deployments.
Its compact LC simplex design simplifies high-density installations, while the 0.9 mm boot provides strain relief and mechanical protection. Suitable for both professional and on-site applications, it supports repeated re-terminations up to three times, allowing flexibility in fiber network installations. Fully RoHS compliant, the connector guarantees environmentally safe and long-lasting performance in fiber optic networks.
Specification
| Connector Type | LC/UPC Quick Assembly |
|---|---|
| Fiber Mode | OM1 62.5/125 |
| Ferrule Diameter | 2.5 mm |
| Housing Material | Plastic |
| Boot Diameter | 0.9 mm |
| Ferrule Material | Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Alignment Sleeve | Ceramic |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS compliant |
| Color | Blue |
Features
-
Pre-installed fiber stub for fast and precise termination
-
No epoxy or polishing required; no special tools needed
-
Allows up to three re-termination cycles
-
Quick and easy fiber termination in the field
-
Can be installed on-site without splicing connectors
-
Compatible with FTTH drop cable Φ0.9 mm
-
LC/UPC simplex design for compact high-density installations
-
RoHS compliant
-
Mechanical durability up to 500 matings
Application
-
Fiber patch panels
-
Distribution frames
-
FTTH outlets
-
LAN and access networks
-
Industry and military fiber applications
FAQ
Q: What fiber type is compatible?
A: OM1 multimode 62.5/125 µm fiber.
Q: Can this connector be installed on-site without tools?
A: Yes, no epoxy or polishing is required.
Q: What is the typical insertion loss?
A: ≤0.30 dB.
Q: How many re-terminations are supported?
A: Up to three times.
Q: Is the connector RoHS compliant?
A: Yes, it meets all RoHS standards.
