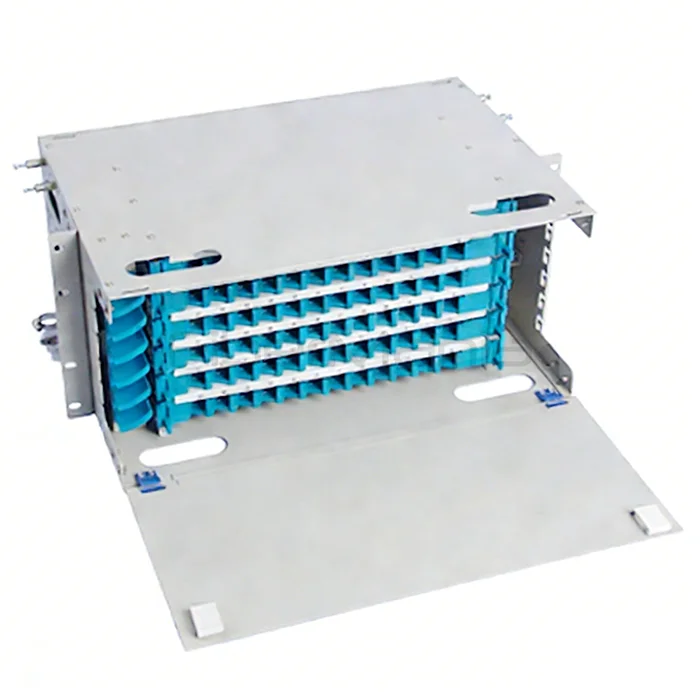

Optical Distribution Frame, with 6 12F Splice Module Inside, 72 Ports, SC Type
Categories:
Product Highlights:
-
19” rack mountable ODF with 72-port capacity for high-density fiber management.
-
Comes with 6 pre-installed 12F splice modules, allowing quick and organized fiber splicing.
-
Durable steel construction with electrostatic paint, ensuring strong protection and aesthetic appearance.
-
Easy installation and expandable capacity, adapters angled at 30° for convenient patching.
Table of Contents
Description
FiberMania’s Optical Distribution Frame (ODF) is designed for high-density fiber optic termination, distribution, and management. The 19” rack mount frame is ideal for data centers, telecom networks, and enterprise optical infrastructure.
Equipped with six 12F splice modules, the ODF accommodates up to 72 SC-type ports and organizes pigtails and patch cords efficiently. The durable metal body with electrostatic coating ensures protection of fibers and enhances the overall appearance. Its flexible design allows easy expansion, secure installation, and convenient maintenance.
Specification
| Material | Metal with electrostatic painted cover |
|---|---|
| Dimensions | 480 × 300 × 4U mm |
| Capacity | 72 fibers |
| Adapter Type | SC (FC, ST, LC optional) |
| Pigtails Type | 1.5m, 12 fibers × 6 modules |
| Fusion Tray | 12 cores × 6 modules |
| Relative Humidity | ≤ 85% (30°) |
| Air Pressure | 70–106 kPa |
| Working Temperature | -10℃ to +60℃ |
| Storage Temperature | -25℃ to +85℃ |
| Installation Method | 19” Rack Mount |
| Adapter Obliquity | 30° |
| RoHS Compliant | Yes |
| OEM/ODM | Custom branding, pre-loaded modules, packaging options |
| Applications | Fiber patching, termination, protection, data centers, telecom |
Features
-
Rack mountable for standard 19” racks
-
Fully stable patch panel with no movement risk
-
Protected environment for adapters, patch cords, and pigtails
-
Top-quality steel construction with electrostatic painted cover
-
Six 12F fusion splice modules included, each with 1.5m pigtails
-
Adapter obliquity: 30° for easy fiber patching
-
Expandable capacity and modular design
-
RoHS compliant
Applications
-
Optical fiber patching and distribution
-
Fiber optic cable termination
-
Protection of optical fibers and pigtails
-
Optical cable fixation and management
-
Data centers, telecom networks, LAN/WAN installations
Frequently Asked Questions (FAQ)
Q1: How many fibers can this ODF accommodate?
It can hold up to 72 fibers with 6 pre-installed 12F splice modules.
Q2: Are the adapters included?
Yes, SC type adapters are included; FC, ST, and LC adapters are available on request.
Q3: Can it be installed in standard 19” racks?
Yes, it is designed for standard 19” rack installation.
Q4: What is the material of the ODF body?
High-quality metal with electrostatic painted finish for durability and protection.
Q5: Is OEM service available?
Yes, FiberMania provides custom branding, fully loaded pre-installed modules, and OEM packaging.
