Optical Distribution Frame, with 2 12F Splice Module Inside, 24 Ports, SC Type
Categories:
Product Highlights:
-
19” rack mount ODF, 24 ports with 2×12F splice modules
-
SC adapters (FC, ST, LC optional) for flexible connectivity
-
Durable steel construction with electrostatic paint, 30° oblique adapters
-
FiberMania offers OEM/ODM customization for adapter type, capacity, and branding
Table of Contents
Description

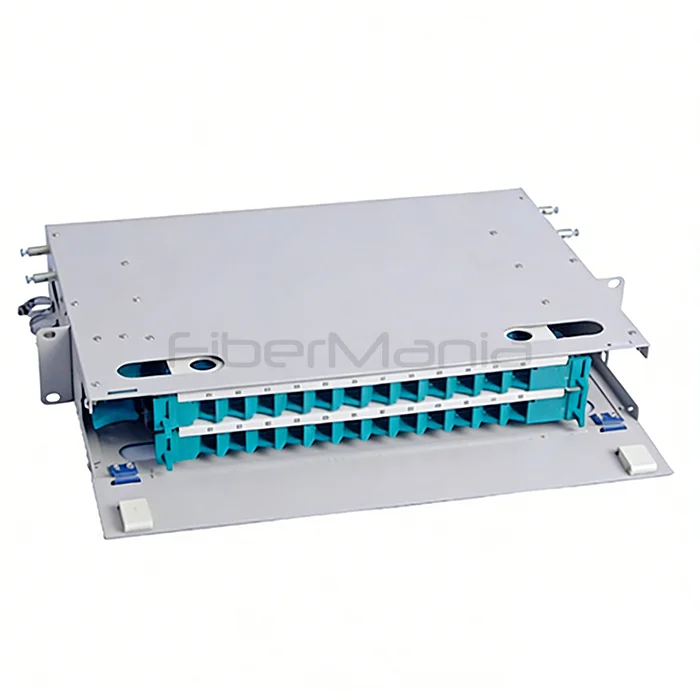

The FiberMania 19” Rack Mount Optical Distribution Frame (ODF) is a high-quality solution designed for secure and organized fiber optic distribution in data centers, telecom networks, and enterprise applications. Constructed from top-grade steel with an electrostatically painted finish, this ODF provides a durable, stable, and aesthetically pleasing enclosure for optical adapters, patch cords, and pigtails.
Inside the frame are two 12-fiber splice modules, allowing for a total of 24 fibers to be efficiently managed and protected. The ODF’s SC adapter type (with options for FC, ST, and LC) supports versatile connectivity, while the 30° oblique adapter design facilitates easy insertion and removal of patch cords. Designed for standard 19” racks, the ODF ensures a fully stable, movement-free setup, ideal for high-density and high-reliability applications.
This ODF also provides protection and strain relief for optical cables and pigtails, maintaining the integrity of the fiber network while simplifying future expansion. Its wide operating temperature range (-10°C to +60°C) and storage range (-25°C to +85°C) make it suitable for various indoor network environments. FiberMania welcomes customized solutions to meet your specific network requirements.
Specification
| Splice Module | 2 × 12F |
|---|---|
| Fiber Ports | 24 |
| Adapter Type | SC |
| Rack Mount | 19'' |
| Housing Material | Metal |
| Features | Compact, supports 24 fibers, internal splice module |
| Applications | Telecom, data center, FTTH |
| Cable Compatibility | 0.9mm pigtails, 2.0/3.0mm patch cords |
| Customization | OEM/ODM available |
| Installation | 19'' Rack mount |
Features
-
Standard 19” rack mount design for easy installation
-
Capacity: 24 fibers, with 2×12F splice modules
-
SC adapter type (FC, ST, LC optional) for flexible connectivity
-
Top-quality steel body with electrostatic paint for durability and aesthetics
-
30° oblique adapter angle for convenient patch cord installation
-
Fully stable patch panel, preventing movement
-
Provides secure protection for adapters, patch cords, and pigtails
-
RoHS compliant
Applications
-
Patching of optical fiber connections
-
Optical cable termination and management
-
Protection and fixation of optical fibers and pigtails
-
Expansion of fiber distribution capacity in data centers and telecom racks
-
Indoor network environments requiring high-density, organized fiber management
FAQ
Q: Can the ODF support other adapter types besides SC?
A: Yes, FC, ST, and LC adapters are available upon request for customization.
Q: How many fibers can be accommodated in this ODF?
A: Standard configuration supports 24 fibers with 2×12F splice modules, and custom capacities are available.
Q: Can this frame be used in high-humidity environments?
A: Yes, it operates reliably at up to 85% relative humidity at 30° inclination.
Q: Is OEM/ODM customization possible for branding or color?
A: Absolutely, FiberMania provides OEM/ODM services including custom colors, labels, and branding.
Q: What is the advantage of the 30° oblique adapter design?
A: The angled design allows easy insertion and removal of patch cords, reducing strain and improving ergonomics.
