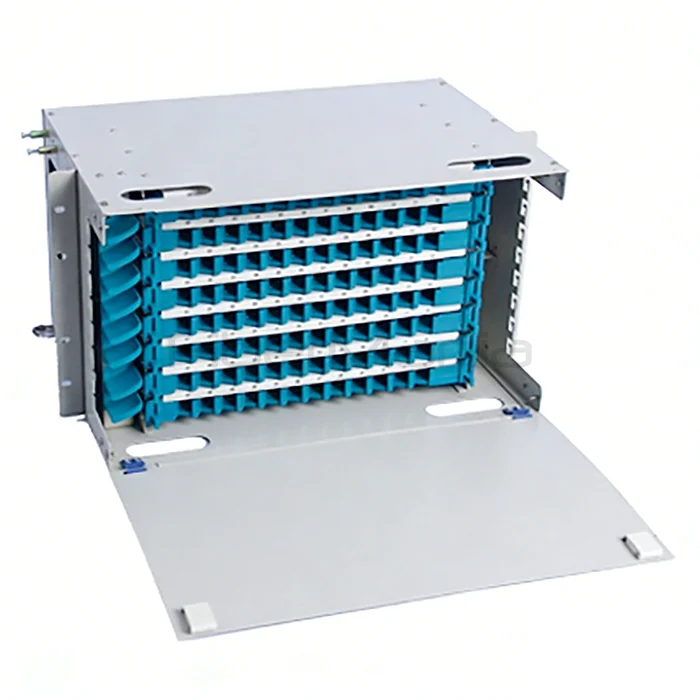

19” Optical Distribution Frame, 96 Ports, SC Type, 8×12F Splice Module
Categories:
Product Highlights:
-
19” Optical Distribution Frame with 96 SC ports and 8×12F splice modules
-
Durable steel construction with electrostatic painted finish for professional appearance
-
Secure and convenient fiber management for patching, termination, and protection
-
FiberMania offers OEM/ODM customization for adapter types, splice modules, and pigtail lengths
Table of Contents
Description
This 19” Optical Distribution Frame (ODF) is designed for efficient and secure fiber management in high-density optical networks. Equipped with eight 12-fiber splice modules, it provides a total of 96 SC-type ports for terminating and distributing optical fibers. The ODF features a durable steel body with electrostatic painted cover, ensuring both strength and a professional appearance.
The frame is compatible with standard 19” racks and allows convenient installation of patch cords, adapters, and pigtails. Its oblique 30° adapter design improves accessibility and facilitates rapid network maintenance. FiberMania also offers OEM customization options to meet project-specific requirements, including adapter type, pigtail length, and module configuration.
Specification
| Splice Module | 8 × 12F |
|---|---|
| Fiber Ports | 96 |
| Adapter Type | SC |
| Rack Mount | 19'' |
| Housing Material | Metal |
| Features | High density, 96 fibers, 8 splice modules |
| Applications | High-density telecom, data center, FTTH |
| Cable Compatibility | 0.9mm pigtails, 2.0/3.0mm patch cords |
| Customization | OEM/ODM available |
| Installation | 19'' Rack mount |
Features
-
Designed for standard 19” rack installation
-
Stable patch panel with minimal movement risk
-
Secure environment for adapters, patch cords, and pigtails
-
Top-quality steel construction with electrostatic painted finish
-
Easy installation and capacity expansion
-
30° oblique adapter design for better accessibility
-
RoHS compliant
Applications
-
Fiber patching and distribution
-
Optical cable termination
-
Protection and organization of optical fibers and pigtails
-
Optical cable fixation and network management
Q&A
Q1: Can the ODF support other adapter types besides SC?
A1: Yes, FiberMania offers LC, FC, and ST adapter options as OEM/ODM customizations.
Q2: What is the maximum fiber capacity?
A2: This ODF has 96 fiber ports via eight 12-fiber splice modules.
Q3: Is the frame suitable for outdoor deployment?
A3: This ODF is primarily designed for indoor rack installation; outdoor use requires additional weatherproof enclosure.
Q4: Can pigtail lengths be customized?
A4: Yes, FiberMania can provide custom pigtail lengths according to your project requirements.
Q5: Does the frame comply with international standards?
A5: Yes, it is certified by ISO9001, TUV, CE, FCC, CAS, UL, and RoHS compliant.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
