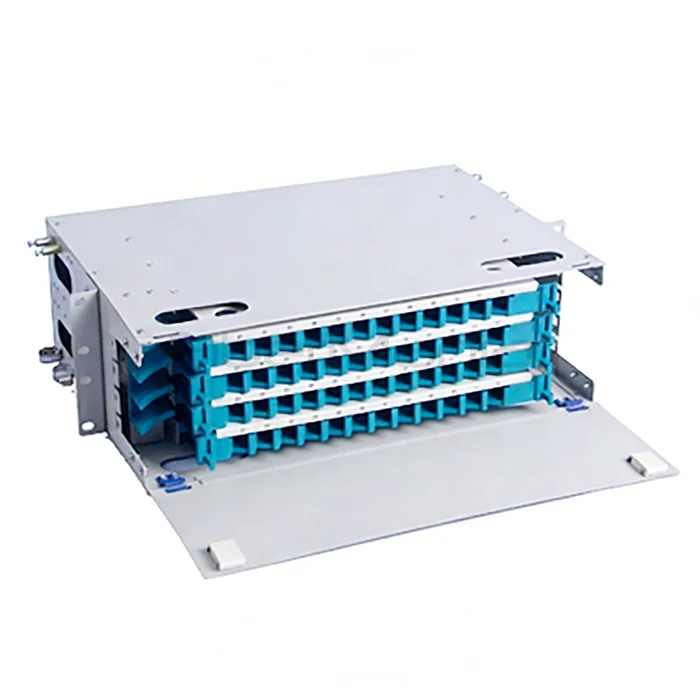

Optical Distribution Frame, with 4 12F Splice Module Inside, 48 Ports, SC Type
Categories:
Product Highlights:
-
19” rack mount optical distribution frame with 48 ports and 4×12F splice modules
-
SC adapters with FC, ST, LC optional for flexible connectivity
-
Top-quality metal construction with electrostatic paint, 30° oblique adapters
-
FiberMania provides customized OEM/ODM options for adapter type, fiber count, and branding
Table of Contents
Description
The FiberMania 19” Rack Mount Optical Distribution Frame (ODF) is engineered for secure, organized, and high-density fiber optic management. Designed to fit standard 19” racks, this ODF is widely used in data centers, enterprise networks, and telecommunication facilities for optical fiber distribution, patching, and termination.
This model includes four 12-fiber splice modules, accommodating a total of 48 fibers. The SC adapter type provides reliable connectivity, with FC, ST, and LC adapters available upon request for flexible network configurations. The 30° oblique adapter design allows convenient insertion and removal of patch cords, ensuring smooth and ergonomic operations.
Constructed from top-quality metal and finished with electrostatic paint, the ODF offers both mechanical stability and a professional appearance. The patch panel protects adapters, pigtails, and patch cords from dust, strain, and accidental damage, while enabling easy expansion of network capacity. Its robust design ensures stability and prevents movement within racks. Operating reliably across a wide temperature range (-10°C to +60°C) and humidity conditions (≤85%), the ODF is suitable for diverse indoor network environments. FiberMania also provides customized solutions to meet specific deployment requirements.
Specification
| Splice Module | 4 × 12F |
|---|---|
| Fiber Ports | 48 |
| Adapter Type | SC |
| Rack Mount | 19'' |
| Housing Material | Metal |
| Features | Medium density, 48 fibers, internal splice modules |
| Applications | Telecom, data center, FTTH |
| Cable Compatibility | 0.9mm pigtails, 2.0/3.0mm patch cords |
| Customization | OEM/ODM available |
| Installation | 19'' Rack mount |
Features
-
Standard 19” rack mount design for easy installation
-
Capacity for 48 fibers with 4×12F splice modules
-
SC adapters (FC, ST, LC optional) for flexible connectivity
-
Top-quality metal construction with electrostatic paint for durability and aesthetics
-
30° oblique adapter design for convenient patch cord management
-
Fully stable patch panel, preventing movement
-
Provides secure protection for adapters, patch cords, and pigtails
-
RoHS compliant
Applications
-
Optical fiber patching and interconnect
-
Optical cable termination and management
-
Protection and fixation of optical fibers and pigtails
-
Expansion of fiber distribution in high-density environments
-
Indoor network infrastructure including data centers and telecom racks
FAQ
Q: Can I use LC or ST adapters instead of SC?
A: Yes, FiberMania provides custom adapter types including LC, ST, or FC.
Q: How many fibers can this ODF support?
A: Standard configuration supports 48 fibers with 4×12F splice modules; custom capacities are available.
Q: Is this ODF suitable for humid environments?
A: Yes, it reliably operates up to 85% relative humidity.
Q: Can I request a custom color or finish?
A: FiberMania provides OEM/ODM customization including custom colors, labeling, and branding.
Q: What is the advantage of the 30° oblique adapter design?
A: The angled design allows easy insertion and removal of patch cords, reducing strain and improving ergonomics.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
