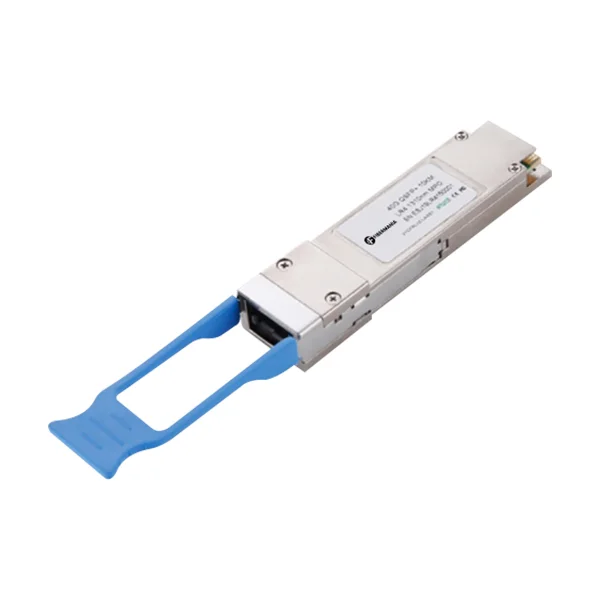

40GB QSFP+ Transceiver IR4 PSM, Single Mode 1310nm Band, 12 Fibers MPO, 10KM
Categories:
Product Highlights:
-
40G QSFP+ IR4 PSM transceiver with 1310nm DFB lasers and PIN photodetector array, supporting 12-fiber MPO links up to 2km over SMF.
-
Hot-pluggable QSFP+ footprint with differential AC-coupled high-speed interface and digital diagnostics for real-time monitoring.
-
Ideal for 40G Ethernet, Fiber Channel, Infiniband, data center, and storage array applications.
-
FiberMania provides OEM/ODM customization
Table of Contents
Description
The 40G QSFP+ IR4 PSM Transceiver is a high-performance, low-power, long-reach optical module designed for 40G Ethernet, Fiber Channel, and PCIe interconnect applications. Operating over single-mode fiber at the 1310nm band, this module delivers an aggregated data rate of 40Gb/s using four full-duplex lanes, each capable of 10Gb/s. The transceiver provides reliable, high-speed connectivity for data centers, storage arrays, and high-performance computing environments.
Compliant with QSFP MSA and 40GbE PSM4 standards, this module integrates a 4-channel DFB laser array and PIN photodetector array, enabling parallel optical transmission over 12-fiber MPO connectors. Its low power consumption, hot-pluggable design, and differential AC-coupled electrical interface make it ideal for high-density network deployments. Built-in digital diagnostics allow real-time monitoring of optical power, temperature, and voltage, ensuring optimal network reliability.
Engineered to operate between 0°C and 70°C, this transceiver provides a robust and reliable solution for demanding environments while maintaining high signal integrity and low error rates over distances up to 2 kilometers on G.652 single-mode fiber.
Specification
| Data Rate | 40Gbps |
|---|---|
| Wavelength | 1310nm |
| Fiber Type | Single Mode (SMF) |
| Transmission Distance | 10KM |
| Connector Type | 12-fiber MPO |
| Compliance | QSFP+ MSA, Class I laser, RoHS |
| Temperature Range | 0°C to +70°C |
| Features | Hot-pluggable, DDM |
Features
-
4-channel 1310nm parallel full-duplex QSFP+ module
-
Data rate up to 11.3Gb/s per channel (aggregate 40Gb/s)
-
Compliant with SFF-8436 QSFP+ and 40GbE PSM4 standards
-
Hot-pluggable electrical interface for easy installation
-
Differential AC-coupled high-speed data interface
-
4-channel DFB laser transmitter and PIN photodetector array
-
Maximum link length up to 2km on G.652 single-mode fiber
-
Maximum power consumption 3.5W with 3.3V supply voltage
-
Housing isolated from connector ground
-
Operating temperature range: 0°C to +70°C
-
RoHS 6 compliant
Application
-
Infiniband connectivity (SDR/DDR/QDR)
-
10/40 Gigabit Ethernet networks
-
2/4/8 Gbps Fiber Channel interconnects
-
Data centers, storage arrays, and high-performance computing
-
High-density optical switch and aggregation systems
FAQ
Q: What is the maximum transmission distance of this QSFP+ IR4 transceiver?
A: Up to 2 kilometers over G.652 single-mode fiber.
Q: How many lanes does this module support and at what speed?
A: It supports 4 full-duplex lanes, each capable of 10Gb/s, for an aggregate 40Gb/s data rate.
Q: Is this module hot-pluggable?
A: Yes, it can be inserted or removed without shutting down network equipment.
Q: Can FiberMania provide OEM or private-label solutions?
A: Yes, we offer full OEM/ODM services, including custom specifications and branding.
Q: Does this module support digital diagnostics monitoring?
A: Yes, it provides real-time monitoring of optical power, temperature, and voltage.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
