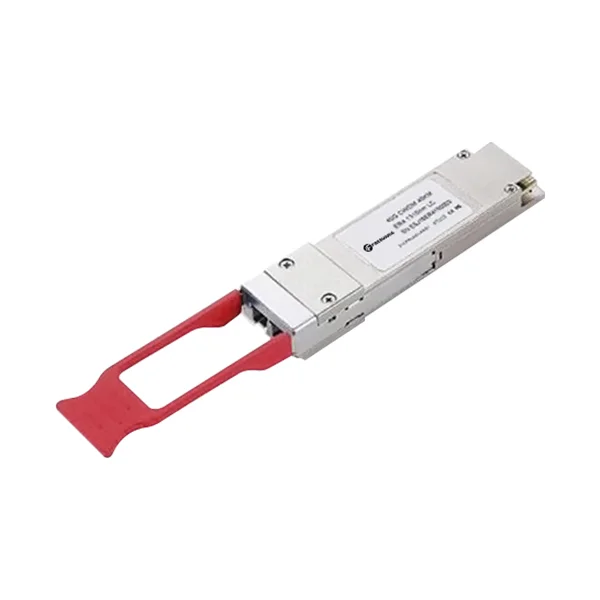

40GB QSFP+ Transceiver ER4, 1310nm, 30KM
Categories:
Product Highlights:
-
Parallel 40Gbps QSFP+ transceiver with 4 independent 10Gbps channels.
-
Supports long-distance transmission up to 30KM over single-mode fiber.
-
Digital diagnostics and low power consumption (1.5W max) for efficient network management.
-
QSFP+ MSA compliant, suitable for high-density data center applications.
Table of Contents
Description
FiberMania’s 40GB QSFP+ ER4 transceiver is a high-performance optical module designed for long-distance single-mode fiber transmission. It features four independent full-duplex channels, each supporting up to 11.2Gbps, delivering a total aggregate data rate of 40Gbps.
This transceiver is ideal for interconnecting switches, routers, and servers in data centers, providing reliable, low-latency, and cost-effective high-speed connectivity. It uses a standard MTP/MPO connector interface, ensuring compatibility with existing QSFP+ MSA-compliant systems.
Specification
| Data Rate | 40Gbps (4x10Gbps) |
|---|---|
| Wavelength | 1310nm |
| Fiber Type | Single Mode Fiber (SMF) |
| Connector Type | MTP/MPO |
| Compliance | QSFP+ MSA, RoHS-6 |
| Digital Diagnostics | Supported (DDM) |
| Operating Case Temperature | 0~70°C |
| Storage Temperature | -40~85°C (typical) |
| Power Supply | +3.3V |
| Power Consumption | 1.5W Max |
| Channel Count | 4 Full-Duplex Channels |
| Applications | 40G Ethernet, Rack-to-Rack, Infiniband QDR/DDR/SDR, Data Center |
| Housing | Standard QSFP+ module |
| OEM/ODM Options | Custom branding, labeling, packaging, cable breakout options |
Features
-
4 independent full-duplex channels, 10Gbps per channel, aggregate 40Gbps
-
ER4 1310nm wavelength for single-mode fiber
-
MTP/MPO optical connector for high-density cabling
-
Digital diagnostic monitoring for real-time performance tracking
-
QSFP+ MSA compliant
-
Low power operation: 1.5W max, +3.3V power supply
-
Operating case temperature: 0~70℃
-
RoHS-6 compliant
Applications
-
Rack-to-rack connectivity in data centers
-
40G Ethernet networks
-
Infiniband QDR, DDR, SDR systems
-
High-density optical networks in enterprise and telecommunication environments
Frequently Asked Questions (FAQ)
Q1: What is the maximum transmission distance?
Up to 30KM on single-mode fiber (SMF) at 1310nm.
Q2: Is this module compatible with QSFP+ switches?
Yes, it is fully QSFP+ MSA compliant.
Q3: What is the total power consumption?
Maximum 1.5W, powered by a +3.3V supply.
Q4: Does it support digital diagnostics?
Yes, real-time monitoring of temperature, voltage, and optical performance is supported.
Q5: Can this transceiver be customized for OEM/ODM?
Yes, FiberMania supports custom branding, labeling, and packaging for B2B clients.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
