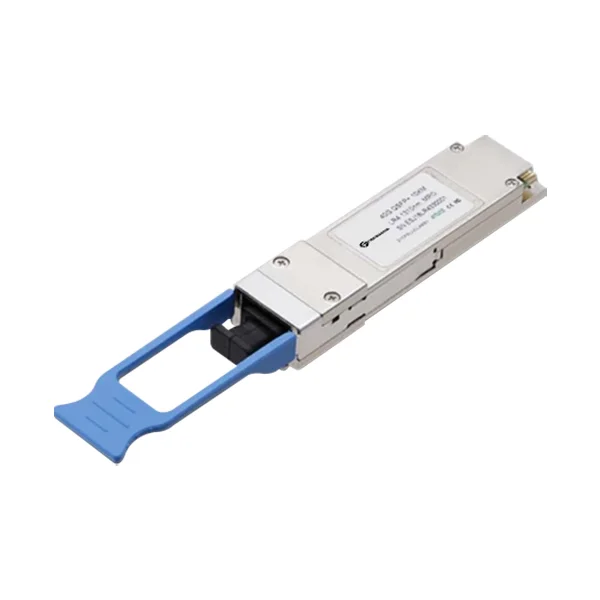

40GB QSFP+ Transceiver IR4 PSM, Single Mode 1310nm Band, 12 Fibers MPO, 2KM
Categories:
Product Highlights:
-
High-performance 40G QSFP+ IR4 transceiver for single-mode fiber up to 2KM.
-
Full-duplex 4-lane 1310nm module, aggregated data rate 40Gb/s.
-
Hot-pluggable QSFP+ form factor with low power consumption (<3.5W).
-
12-fiber MPO connector, ideal for Ethernet, Fiber Channel, and PCIe interconnects.
Table of Contents
Description
The FiberMania 40G QSFP+ IR4 PSM Transceiver is a high-speed, low-power optical module designed for 40GbE Ethernet, fiber channel, and PCIe applications. Utilizing a 4-lane parallel design, each lane supports up to 10Gb/s, delivering an aggregated 40Gb/s throughput.
This transceiver supports long-reach single-mode fiber up to 2KM, using 12-fiber MPO connectors for efficient parallel optical data transmission. Compliant with QSFP MSA and 40GbE PSM4 standards, it ensures seamless integration into modern data center and storage network infrastructures.
Specification
| Data Rate (max) | 41.2Gb/s |
|---|---|
| Maximum Distance | 2KM |
| Fiber Type | Single Mode Fiber (SMF) |
| Wavelength | 1310nm Band |
| Transmitter | 4x DFB Laser |
| Receiver | 4x PIN Photodetector |
| Connector | 12-fiber MPO |
| Form Factor | QSFP+ |
| Digital Diagnostic | Yes |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Power Supply Voltage | 3.3V |
| Power Consumption | ≤3.5W |
| Standards | QSFP MSA, 40GbE PSM4, SFF-8436 |
| Certifications | ISO9001, TUV, CE, FCC, CAS, UL, RoHS |
| Applications | 40GbE Ethernet, Fiber Channel, Infiniband, Data Centers, HPC |
Features
-
QSFP+ 4-lane parallel 1310nm IR4 module
-
Data rate up to 11.3Gbps per channel, aggregated 41.2Gb/s
-
SFF-8436 QSFP+ compliant, hot-pluggable
-
Differential AC-coupled high-speed electrical interface
-
4-channel DFB laser transmitter, 4-channel PIN photodetector
-
Maximum link distance: 2KM on G652 single-mode fiber
-
Low power consumption: ≤3.5W
-
3.3V power supply voltage, RoHS 6 compliant
-
Operating case temperature: 0°C ~ 70°C
-
Isolated housing for EMI protection
Applications
-
10/40 Gigabit Ethernet networks
-
2/4/8 Gbps Fiber Channel connections
-
Infiniband SDR/DDR/QDR interconnects
-
Data centers and storage arrays requiring high-speed, low-latency links
-
PCIe interconnects and high-performance computing (HPC) clusters
Frequently Asked Questions (FAQ)
Q1: What is the maximum link distance?
Up to 2KM over single-mode fiber (G652).
Q2: Can this module be hot-swapped?
Yes, it supports hot-pluggable QSFP+ installation.
Q3: How many fibers are required?
Uses 12-fiber MPO connector, 4 lanes parallel transmission.
Q4: Is it compatible with 40GbE switches?
Yes, fully compatible with QSFP MSA-compliant 40GbE switches and fiber channel equipment.
Q5: What is the operating temperature range?
0°C ~ 70°C, suitable for standard commercial and data center environments.
