50G SFP56 LR 1310nm 10km Optical Transceiver
Categories:
Product Highlights:
- 50Gb/s SFP56 optical transceiver
- 1310nm DFB laser for stable transmission
- Up to 10km over single-mode fiber
- Built-in DDM for real-time diagnostics
- Compact solution for high-density 50GbE networks
Table of Contents
Description
The 50G SFP56 LR Optical Transceiver is a high-performance 50Gb/s optical module designed for long-distance Ethernet transmission over single-mode fiber. Featuring an SFP56 form factor and a 1310nm DFB laser transmitter, it supports transmission distances of up to 10km while providing stable and reliable optical performance. The module includes Digital Diagnostic Monitoring (DDM) via a 2-wire serial interface for real-time monitoring of key operating parameters. It is well suited for high-speed data center networks, enterprise infrastructure, Ethernet aggregation, and other applications requiring reliable 50Gb/s connectivity.

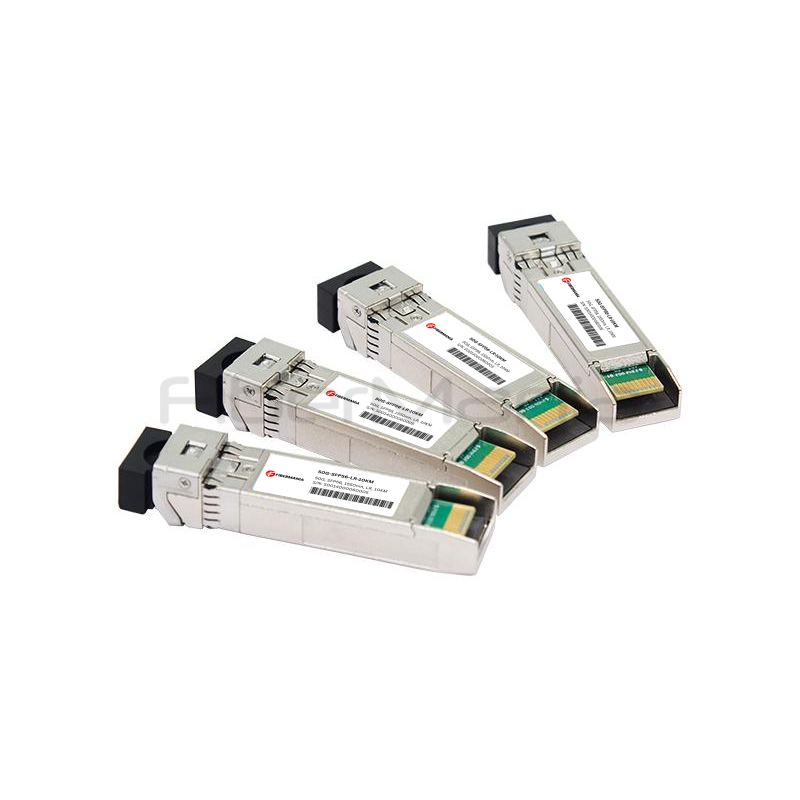

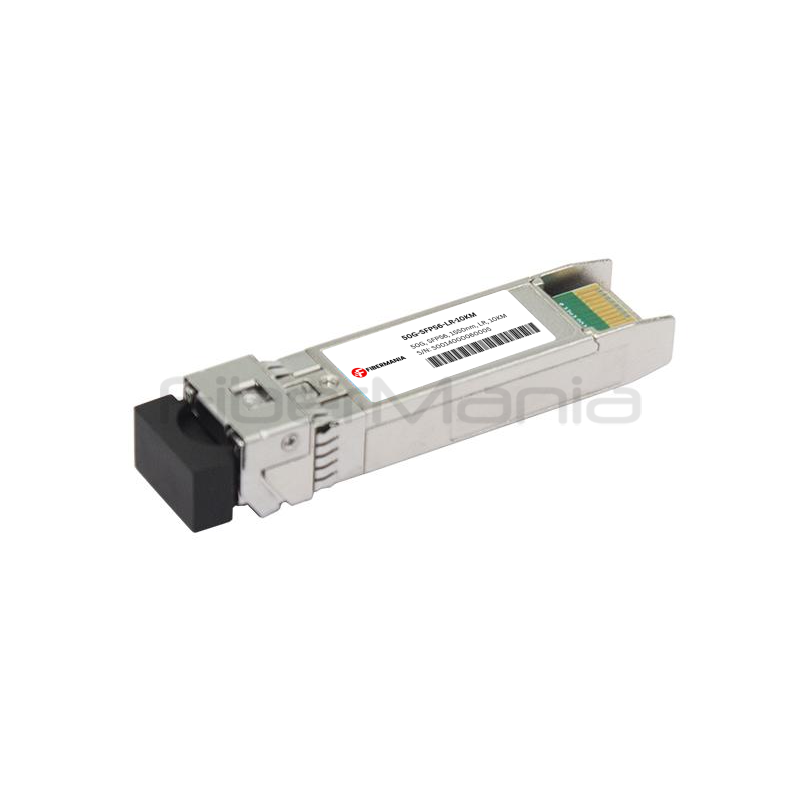

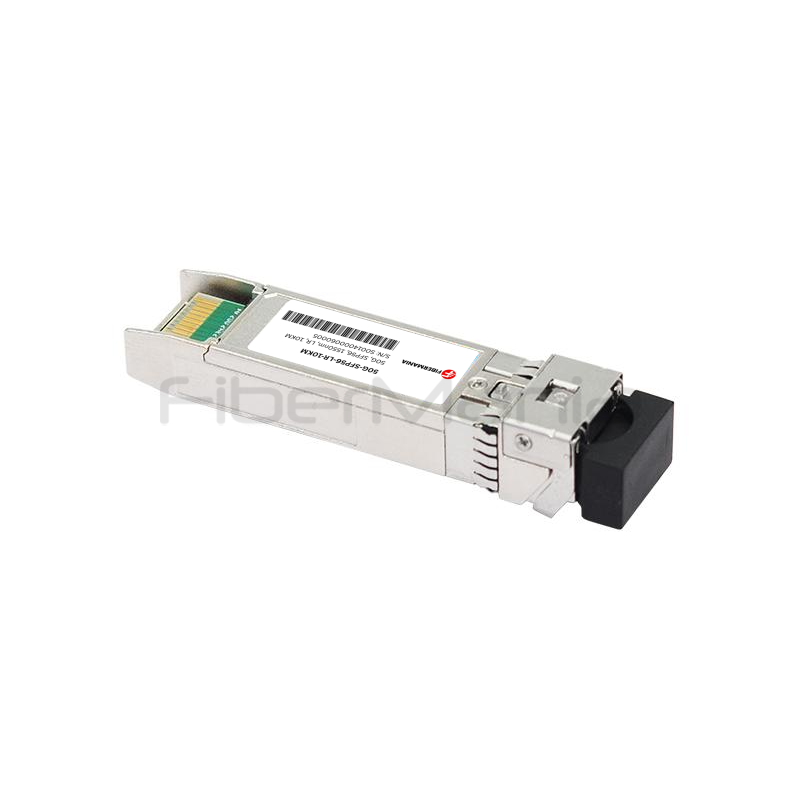

50G SFP56 LR 10km 1310nm DFB Optical Transceiver
Specification
| Ethernet Data Rate | 50Gb/s |
|---|---|
| Form Factor | SFP56 |
| Maximum Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Operating Wavelength | 1310nm |
| Transmitter Type | DFB Laser |
| Optical Interface | SFP56 Optical Interface |
| Receiver Type | PIN Receiver (Typical) |
| Digital Diagnostics | DDM Supported |
| Management Interface | 2-Wire Serial Interface |
| Electrical Interface | SFP56 High-Speed Electrical Interface |
| Power Supply | Single +3.3V |
| Modulation | PAM4 (Typical for 50G Ethernet Applications) |
Features
- 50Gb/s Ethernet data rate
- SFP56 pluggable form factor
- 1310nm DFB laser transmitter
- Supports up to 10km transmission over single-mode fiber
- Digital Diagnostic Monitoring (DDM)
- 2-wire serial interface for monitoring and management
- Designed for high-density Ethernet networking
Applications
- 50GbE data center networks
- Enterprise network infrastructure
- Ethernet aggregation and uplinks
- High-speed server connectivity
- Data center interconnects
- Network upgrades from 25G and 40G Ethernet
FAQ
What fiber type does it use?
The module is designed for transmission over single-mode fiber (SMF) and supports a maximum reach of up to 10km.
What wavelength does the transceiver operate at?
It operates at a nominal wavelength of 1310nm and uses a DFB laser transmitter for stable long-distance optical transmission.
Does it support optical monitoring?
Yes. The transceiver integrates Digital Diagnostic Monitoring (DDM) through a 2-wire serial interface, allowing real-time monitoring of operating parameters.
What form factor does it use?
The transceiver uses the compact SFP56 form factor, making it suitable for high-density 50GbE networking equipment.
Can it be used for network upgrades?
Yes. It can be deployed as part of a network upgrade from 25GbE or 40GbE infrastructure to higher-speed 50GbE connectivity, provided the host equipment supports the SFP56 interface and 50GbE operation.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
