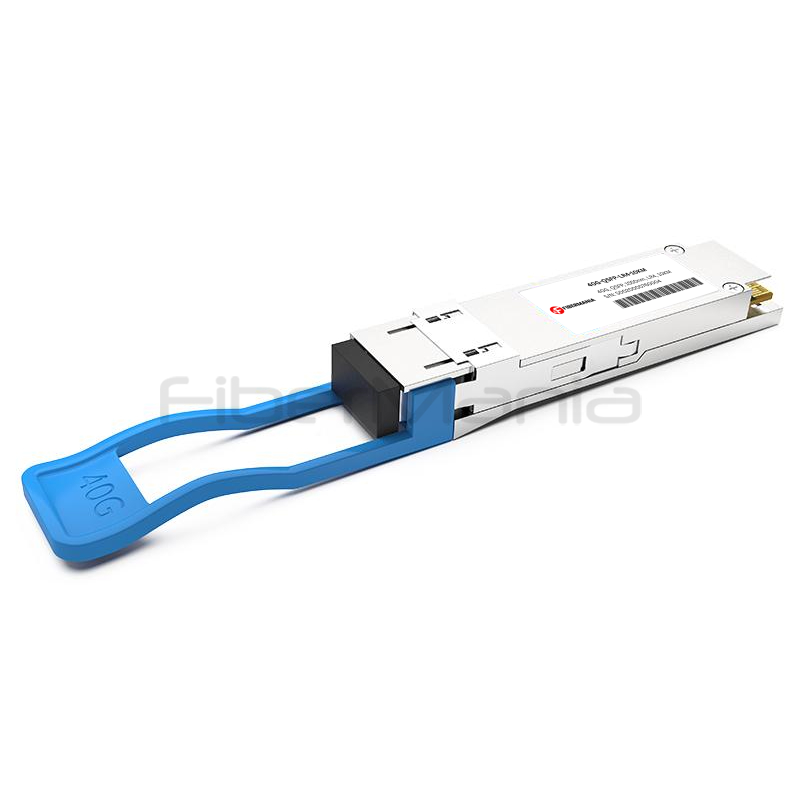

40G QSFP+ LR4 Industrial 10km Optical Transceiver 1310nm Duplex LC SMF
Categories:
Product Highlights:
- 40Gbps LR4 transmission up to 10km
- 1310nm four-channel CWDM architecture
- Integrated MUX/DEMUX technology
- Duplex LC interface for SMF
- Industrial-grade design for demanding environments
- Supports 40G Ethernet and OTU3
Table of Contents
Description
The 40G QSFP+ LR4 Industrial Optical Transceiver is a 40Gbps long-reach optical module designed for reliable Ethernet and optical transport transmission over single-mode fiber. Operating in the 1310nm wavelength band, it uses a four-channel CWDM architecture with integrated MUX/DEMUX technology to combine and separate the optical channels for transmission distances of up to 10km. The QSFP+ hot-pluggable form factor and Duplex LC optical interface enable straightforward integration with compatible network equipment and existing SMF infrastructure. Designed for demanding operating environments, the industrial-grade module is suitable for 40G Ethernet, OTU3 transport, data center connections, enterprise backbone networks, and other applications requiring stable long-distance optical connectivity.
Specification
| Optical Transport Standard | OTU3 |
|---|---|
| Form Factor | QSFP+ |
| Data Rate | 40Gb/s |
| Maximum Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Architecture | 4-Lane CWDM MUX/DEMUX |
| Wavelength Band | 1310nm CWDM |
| Channel Bandwidth | Up to 11.2Gbps per Channel |
| Number of Optical Channels | 4 Channels |
| Optical Connector | Duplex LC |
| Transmitter Type | CWDM Laser |
| Receiver Type | PIN/APD Receiver (Optional Based on Design) |
| Power Supply | Single +3.3V |
| Digital Diagnostics | Optional DDM Support |
| Fiber Compatibility | OS2 Single-Mode Fiber |
Features
- 40Gbps aggregate data rate
- Transmission distance up to 10km
- 1310nm operating wavelength band
- Four-channel CWDM optical architecture
- Integrated CWDM MUX/DEMUX
- QSFP+ hot-pluggable form factor
- Duplex LC optical interface
- Single-mode fiber transmission
- Designed for industrial networking environments
- Supports 40G Ethernet and OTU3 applications
- Suitable for long-distance, low-latency connectivity
Applications
- 40G Ethernet networks
- Industrial Ethernet networks
- OTU3 optical transport systems
- Data center connections
- Enterprise backbone networks
- Long-distance switch-to-switch links
- Industrial communication infrastructure
FAQs
What is the maximum transmission distance?
The module supports transmission distances of up to 10km over standard single-mode fiber.
How does the LR4 architecture work?
The transceiver uses four CWDM optical channels in the 1310nm wavelength band. Integrated MUX/DEMUX technology combines the four channels for transmission and separates them at the receiving end.
What optical connector does it use?
It features a Duplex LC optical interface for connection to standard single-mode fiber infrastructure.
Is this transceiver suitable for industrial environments?
Yes. The module is designed for industrial networking applications where stable optical performance is required under demanding operating conditions.
Can it support OTU3 applications?
Yes. In addition to 40G Ethernet, the transceiver is suitable for compatible OTU3 optical transport applications.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
