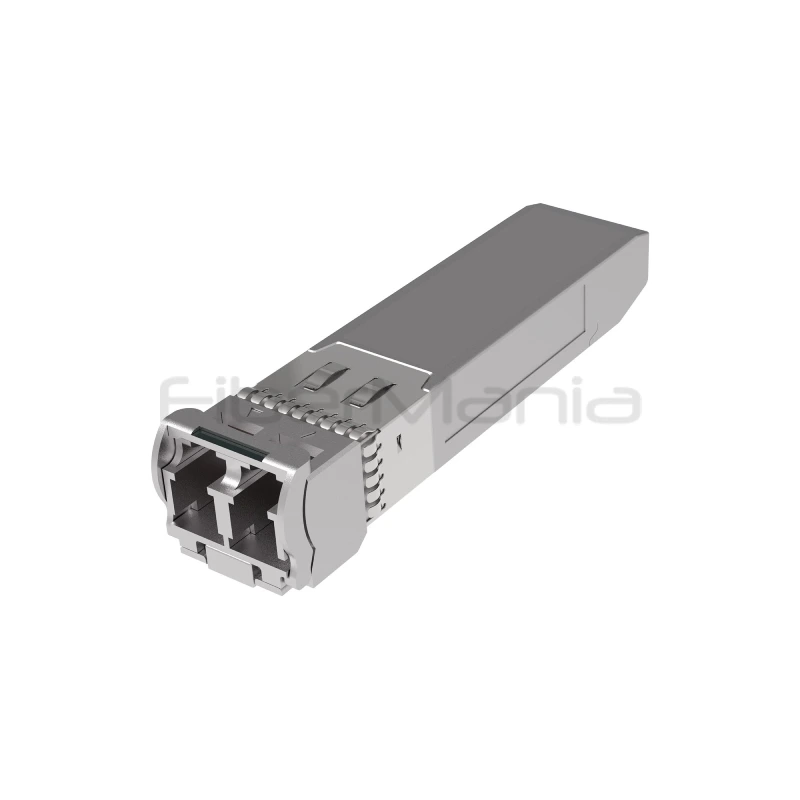

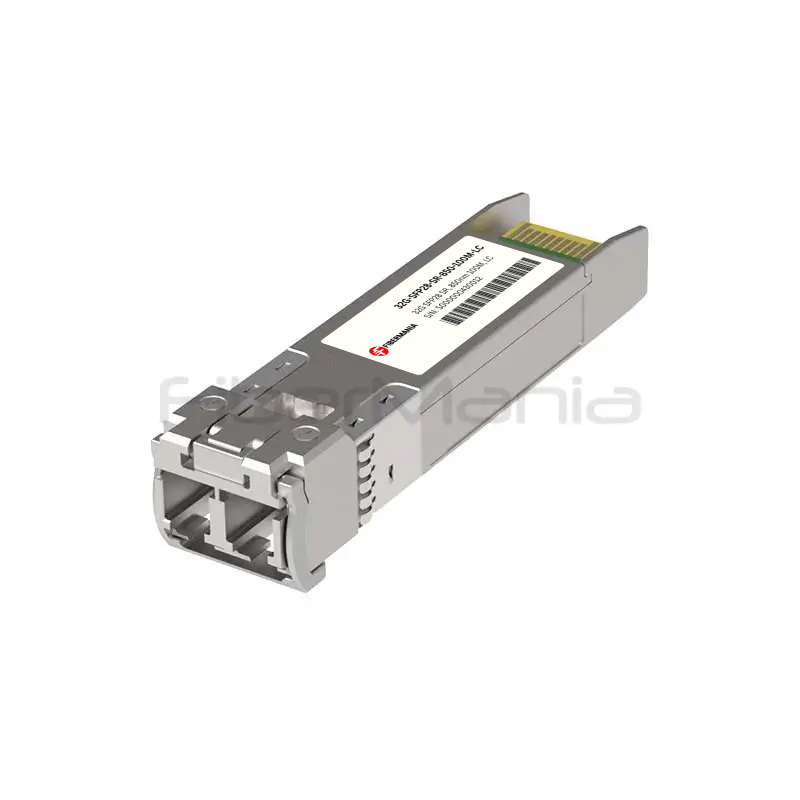

25G SFP28 SR Optical Transceiver, 850nm, 100M, Multi-Mode Fiber, LC
Categories:
Product Highlights:
-
25G SFP28 SR optical transceiver operating at 850nm over multi-mode fiber
-
Supports data rates up to 25Gbps with short-reach transmission up to 100m
-
Hot-pluggable SFP28 form factor with duplex LC interface for easy deployment
-
FiberMania provides OEM, ODM, and private-label services with flexible customization and stable mass production capabilities
Table of Contents
Description
The 25G SFP28 SR 850nm optical transceiver is a high-speed, short-reach module designed for next-generation data center and enterprise network applications. Operating at a nominal wavelength of 850nm over laser-optimized multi-mode fiber, it supports data rates of up to 25Gbps and delivers reliable, low-latency optical connectivity for 25G Ethernet environments.
This transceiver provides a maximum transmission distance of up to 100 meters on OM4 multi-mode fiber and up to 70 meters on OM3 fiber, while also supporting shorter distances on OM2 fiber. Its short-reach architecture makes it ideal for intra-data-center links such as switch-to-switch, switch-to-server, and top-of-rack connections where performance and cost efficiency are critical.
Built in a hot-pluggable SFP28 form factor with a duplex LC optical interface, the module ensures seamless integration with existing SFP28 and backward-compatible SFP+ network equipment. Compliant with IEEE and MSA standards, it offers stable signal performance, low power consumption, and excellent interoperability for scalable 25G network deployments.
Specification
| Form Factor | SFP28 |
|---|---|
| Data Rate | Up to 25.78Gbps |
| Wavelength | 850nm |
| Transmission Distance | 100m (OM4), 70m (OM3), 20m (OM2) |
| Fiber Type | Multi-Mode Fiber (OM4 / OM3 / OM2) |
| Connector | Duplex LC |
| Laser Type | VCSEL |
| Receiver Type | PIN photodiode |
| Diagnostic Function | Digital Diagnostic Monitoring |
| Power Supply | Single +3.3V |
| Power Consumption | Low |
| Operating Temperature | 0°C to +70°C |
| Compliance | IEEE 802.3by, SFP28 MSA, SFF-8402, SFF-8431, SFF-8472, RoHS |
Features
-
Supports data rates up to 25.78Gbps
-
850nm VCSEL laser and PIN photodiode
-
Transmission up to 100m over OM4 multi-mode fiber
-
Supports OM3 and OM2 multi-mode fiber
-
Hot-pluggable SFP28 form factor
-
Duplex LC optical interface
-
Real-time Digital Diagnostic Monitoring function
-
Single +3.3V power supply
-
Low power consumption
-
RoHS compliant
Applications
-
25G Ethernet switches and routers
-
Data center short-reach optical links
-
Top-of-rack and end-of-row switching
-
Server and storage connectivity
-
High-density enterprise network environments
FAQ
What is the maximum transmission distance of this transceiver?
It supports up to 100 meters on OM4 fiber, 70 meters on OM3 fiber, and up to 20 meters on OM2 fiber.
Is this module compatible with existing SFP+ ports?
Yes, the SFP28 form factor is backward compatible with SFP+ ports, subject to host device support and speed configuration.
Which standards does this transceiver comply with?
It complies with IEEE 802.3by, SFP28 MSA, SFF-8402, SFF-8431, and SFF-8472 standards.
Does this transceiver support monitoring and diagnostics?
Yes, Digital Diagnostic Monitoring enables real-time access to key operating parameters such as temperature, voltage, and optical power.
Can FiberMania provide OEM or private-label versions of this product?
Yes, FiberMania offers OEM, ODM, and private-label manufacturing services, including customized labeling, firmware coding, and performance specifications.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
