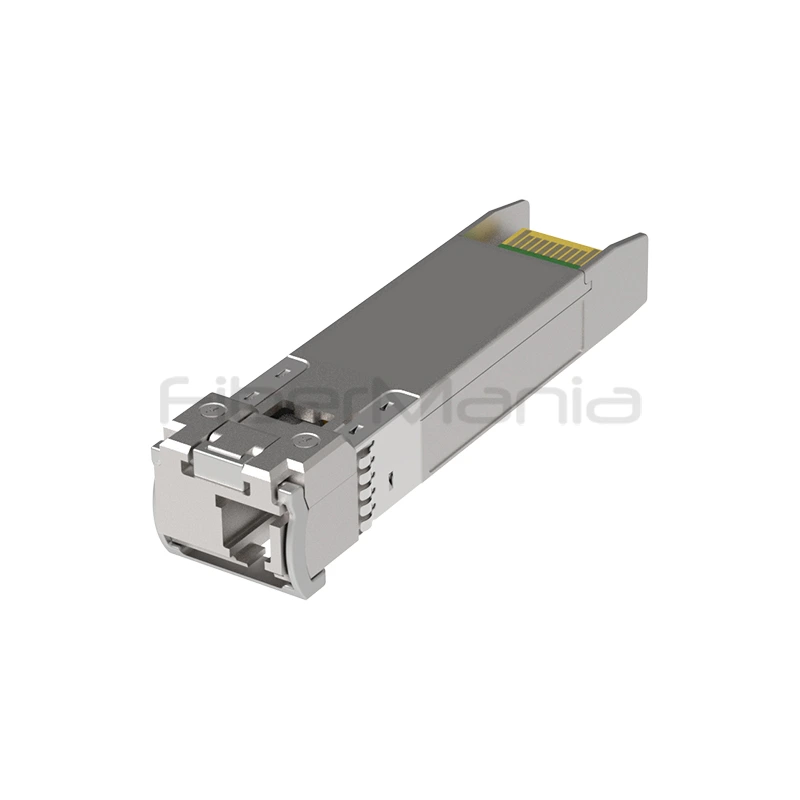

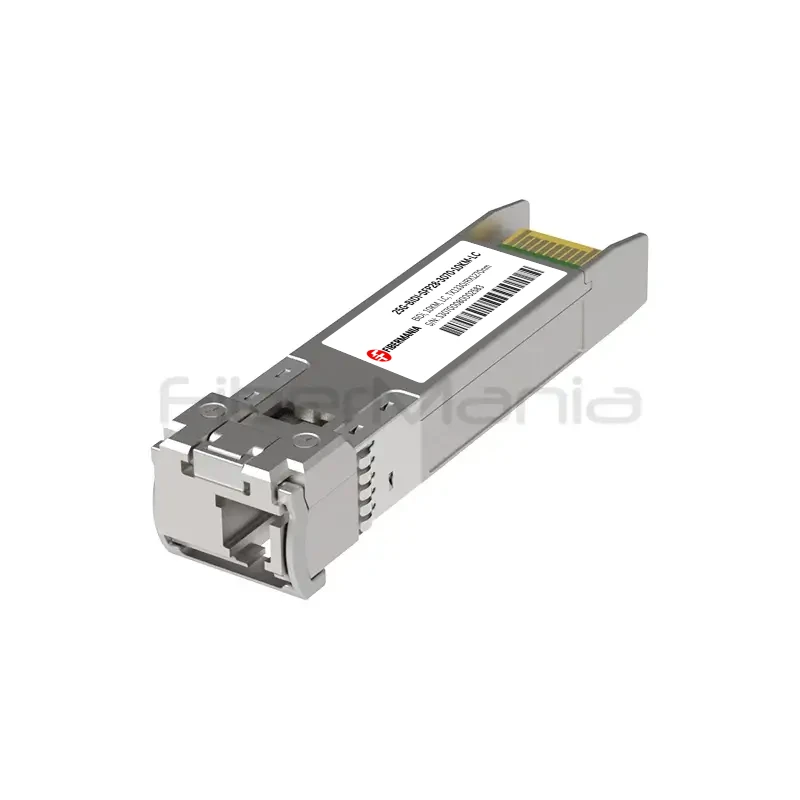

25G BiDi SFP28 TX1330/RX1270nm 10km LC Optical Transceiver
Categories:
Product Highlights:
-
25G BiDi SFP28 optical transceiver for single-fiber bidirectional transmission
-
Supports 25Gbps data rates with up to 10km reach over single-mode fiber
-
Operates at TX1330/RX1270nm with DFB transmitter and PIN photodiode receiver
-
FiberMania provides OEM, ODM, and private-label services with flexible customization and reliable production
Table of Contents
Description
The 25G BiDi SFP28 TX1330/RX1270nm optical transceiver is a high-performance, compact module designed for short- to medium-reach single-fiber bidirectional transmission. Using 1330nm and 1270nm wavelengths, it supports 25Gbps data rates over distances up to 10 kilometers on standard G.652 single-mode fiber, providing a cost-effective solution that reduces fiber cabling while maintaining reliable high-speed connectivity.
Ideal for 25G Ethernet and 32G Fibre Channel applications, this transceiver features a hot-pluggable SFP28 form factor with a duplex LC connector for seamless integration with existing network infrastructure. Its DFB laser transmitter and PIN photodiode receiver ensure stable signal quality, while Digital Diagnostic Monitoring (DDM) enables real-time tracking of critical parameters such as temperature, voltage, bias current, and optical power.
Designed for commercial deployment, the module operates efficiently with low power consumption and is fully compliant with SFP+ MSA, SFF-8472, and RoHS standards, ensuring reliability and regulatory compliance.
Specification
| Form Factor | SFP28 |
|---|---|
| Data Rate | Up to 25.78Gbps |
| Wavelength | TX1330nm / RX1270nm (Bidirectional) |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (G.652 SMF) |
| Connector | Duplex LC |
| Transmitter | DFB Laser |
| Receiver | PIN Photodiode |
| Electrical Interface | 25GAUI |
| Diagnostic Function | Digital Diagnostic Monitoring (SFF-8472) |
| Power Supply | Single +3.3V |
| Power Consumption | ≤1.5W |
| Housing | All-metal |
| Operating Temperature | Standard 0°C~70°C |
| Compliance | SFP+ MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 25.78Gbps
-
Bidirectional wavelengths: TX1330nm / RX1270nm
-
Transmission distance up to 10km over G.652 single-mode fiber
-
DFB laser transmitter and PIN photodiode receiver
-
Hot-pluggable SFP28 form factor with duplex LC interface
-
Digital Diagnostic Monitoring (SFF-8472)
-
Power supply: Single +3.3V
-
Operating temperature: Standard 0°C~70°C
-
RoHS compliant
Applications
-
25G Ethernet networks
-
32G Fibre Channel deployments
-
Data center interconnects
-
Metro and access networks requiring single-fiber bidirectional links
-
High-density 25G optical connectivity
FAQ
What does BiDi mean in this module?
BiDi stands for bidirectional, enabling simultaneous transmission and reception over a single fiber using two different wavelengths.
Which wavelengths does this transceiver operate on?
TX: 1330nm, RX: 1270nm, using a duplex LC single-fiber connection.
What is the maximum transmission distance?
Up to 10km over standard G.652 single-mode fiber.
Does it support real-time monitoring?
Yes, Digital Diagnostic Monitoring (DDM) provides real-time information on temperature, voltage, bias current, and optical power.
Can FiberMania provide OEM or private-label BiDi transceivers?
Yes, FiberMania offers OEM, ODM, and private-label services including wavelength customization, labeling, and performance tuning.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
