25G SFP28 CWDM 40KM LC single-mode optical transceiver

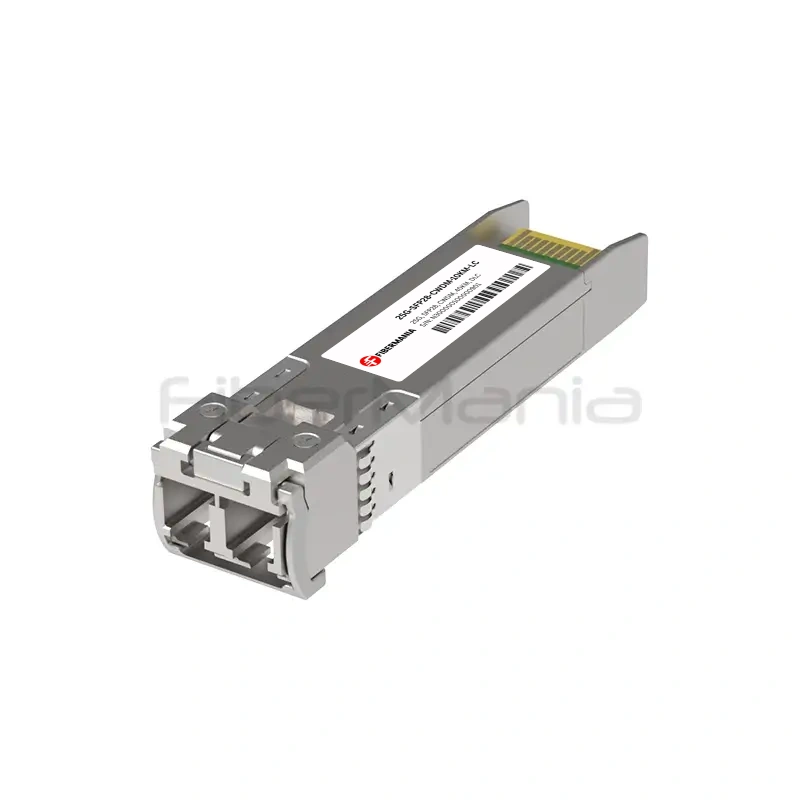

25G SFP28 CWDM Optical Transceiver, 40KM, Single-Mode Fiber, LC

Name: 25G SFP28 CWDM Optical Transceiver 40KM Single-Mode
SKU: 25G-SFP28-CWDM-40KM-LC

P/N: 25G-SFP28-CWDM-40KM-LC

Categories:

25G SFP28

Product Highlights:

25G SFP28 CWDM optical transceiver for long-reach, high-density deployments
Supports 25Gbps data rate with transmission up to 40km over single-mode fiber
CWDM wavelengths provide multiple channels for efficient fiber utilization
FiberMania provides OEM, ODM, and private-label services with flexible customization and reliable mass production

Description

The 25G SFP28 CWDM 40KM optical transceiver is a high-performance module designed for long-reach, cost-effective optical transmission over single-mode fiber. Supporting CWDM wavelengths from 1270nm to 1370nm (DML) or 1470nm to 1570nm (EML), it enables multiple 25Gbps channels for high-density deployments while maximizing fiber utilization.

With a transmission distance of up to 40 kilometers, this transceiver is ideal for 5G fronthaul, data center interconnects, and enterprise backbone networks. Its DFB laser and high-sensitivity APD receiver provide reliable signal performance across long distances, ensuring low-latency, high-bandwidth connectivity in demanding network environments.

Designed in a hot-pluggable SFP28 form factor with a duplex LC interface, the module integrates seamlessly with standard 25G network equipment. Digital diagnostic monitoring (DDM) allows real-time tracking of key parameters such as temperature, voltage, and optical power. Its all-metal housing ensures superior EMI protection, and it supports wide temperature ranges for commercial and extended deployments.

Specification

Form Factor	SFP28
Data Rate	Up to 25.78Gbps
Wavelength	CWDM (1270–1370nm DML or 1470–1570nm EML)
Transmission Distance	Up to 40km
Fiber Type	Single-Mode Fiber (9/125µm SMF)
Connector	Duplex LC
Transmitter	DFB Laser
Receiver	APD
Electrical Interface	25GAUI
Diagnostic Function	Digital Diagnostic Monitoring (SFF-8472)
Power Supply	Single +3.3V
Power Consumption	<2.0W
Housing	All-metal
Laser Safety	Class 1
Operating Temperature	Commercial 0°C~70°C; Extended -10°C~80°C
Compliance	IEEE 802.3cc, SFP28 MSA, RoHS, EU Directive 2015/863/EU

Features

Supports data rates up to 25.78Gbps
CWDM wavelengths: 1270–1370nm (DML) or 1470–1570nm (EML)
Transmission distance up to 40km over 9/125µm single-mode fiber
DFB laser transmitter and APD receiver
Hot-pluggable SFP28 form factor with duplex LC interface
Digital Diagnostic Monitoring (SFF-8472)
Class 1 laser safety certified
Cost-effective solution enabling higher port density and bandwidth
RoHS compliant and lead-free
Single +3.3V power supply
All-metal housing for EMI protection
Operating temperature: Commercial 0°C~70°C; Extended -10°C~80°C

Applications

5G fronthaul and mobile transport networks
Data center interconnects
Enterprise backbone networks
High-density 25G Ethernet deployments
Long-distance optical connectivity over single fiber

FAQ

What CWDM wavelengths does this transceiver support?
It supports 1270–1370nm for DML lasers or 1470–1570nm for EML lasers, allowing multiple 25G channels over a single fiber.

What is the maximum reach of this module?
It can transmit up to 40km over standard 9/125µm single-mode fiber.

Does it support real-time performance monitoring?
Yes, Digital Diagnostic Monitoring (DDM) allows monitoring of temperature, voltage, bias current, and optical power in real time.

Is this module suitable for industrial temperature environments?
Yes, it supports commercial (0–70°C) and extended (-10–80°C) operating ranges.

Can FiberMania provide OEM or private-label CWDM transceivers?
Yes, FiberMania offers OEM, ODM, and private-label manufacturing services, including wavelength selection, labeling, coding, and customized performance tuning.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
