25G BiDi SFP28 1270/1330nm 80KM LC single-mode optical transceiver

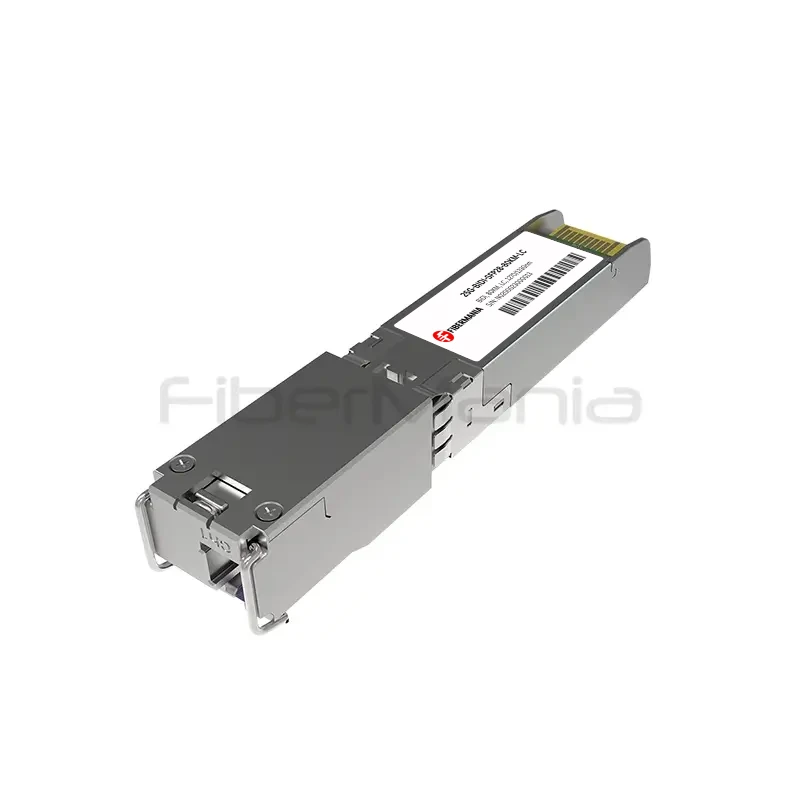

25G BiDi SFP28 Optical Transceiver, 1270/1330nm, 80KM, Single-Mode Fiber, LC

Name: 25G BiDi SFP28 Optical Transceiver 1270/1330nm 80KM
SKU: 25G-BIDI-SFP28-80KM-LC

P/N: 25G-BIDI-SFP28-80KM-LC

Categories:

25G SFP28

Product Highlights:

25G BiDi SFP28 optical transceiver for long-reach, single-fiber transmission
Supports 25Gbps data rates with transmission up to 80km over single-mode fiber
Operates at 1270/1330nm with EML transmitter and integrated SOA & PIN TIA receiver
FiberMania provides OEM, ODM, and private-label services with flexible customization and reliable mass production

Description

The 25G BiDi SFP28 80KM optical transceiver is a high-performance module designed for long-reach, single-fiber bidirectional transmission over standard G.652 single-mode fiber. Operating with 1270nm/1330nm wavelengths, it delivers 25Gbps data rates over distances up to 80 kilometers, effectively reducing fiber infrastructure costs by up to 50% while maintaining high-speed, low-latency connectivity.

This transceiver is ideal for 5G backhaul, metro network aggregation, and data center interconnect (DCI) applications where fiber efficiency, reliability, and scalability are critical. Its EML transmitter combined with an integrated SOA & PIN TIA receiver ensures stable signal performance across extended distances, and Digital Diagnostic Monitoring (DDM) allows real-time monitoring of temperature, voltage, bias current, and optical power.

Designed in a hot-pluggable SFP28 form factor with a single LC connector, the module integrates seamlessly with standard network equipment. Its all-metal housing provides EMI protection, and the wide operating temperature range supports commercial and industrial deployments. Compliance with IEEE 802.3cc, SFF, RoHS, and EU directives ensures a reliable and standardized solution for long-haul optical networks.

Specification

Form Factor	SFP28
Data Rate	Up to 25.78Gbps
Wavelength	1270/1330nm (Bidirectional)
Transmission Distance	Up to 80km
Fiber Type	Single-Mode Fiber (G.652 SMF)
Connector	Single LC
Transmitter	EML Laser
Receiver	Integrated SOA & PIN TIA
Electrical Interface	25GAUI
Diagnostic Function	Digital Diagnostic Monitoring (SFF-8472)
Power Supply	Single +3.3V
Power Consumption	Commercial 2.2W; Industrial 2.8W
Housing	All-metal
Operating Temperature	Commercial 0°C~70°C; Industrial -40°C~85°C
Compliance	IEEE 802.3cc, SFF-8472, SFF-8419, RoHS 6, EU Directive 2015/863/EU

Features

Supports data rates up to 25.78Gbps
Bidirectional wavelengths: 1270/1330nm
Transmission distance up to 80km over G.652 single-mode fiber
EML transmitter and integrated SOA & PIN TIA receiver
Hot-pluggable SFP28 form factor with single LC connector
Digital Diagnostic Monitoring (SFF-8472)
Power consumption: Commercial 2.2W; Industrial 2.8W
Operating temperature: Commercial 0°C~70°C; Industrial -40°C~85°C
RoHS 6 compliant and EU Directive 2015/863/EU
All-metal housing for superior EMI protection

Applications

5G backhaul networks
Metro network aggregation
Data center interconnect (DCI)
Single-fiber bidirectional 25G Ethernet deployments
Long-distance, high-density optical networks

FAQ

What wavelengths does this BiDi transceiver use?
It operates on 1270nm/1330nm for bidirectional transmission over a single fiber.

What is the maximum transmission distance?
It supports up to 80km over standard G.652 single-mode fiber.

Does it support real-time diagnostics?
Yes, it features Digital Diagnostic Monitoring (DDM) to monitor temperature, voltage, bias current, and optical power.

Is it suitable for industrial temperature conditions?
Yes, it operates over a wide temperature range: Commercial 0°C~70°C and Industrial -40°C~85°C.

Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services, including wavelength customization, labeling, coding, and performance tuning.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
