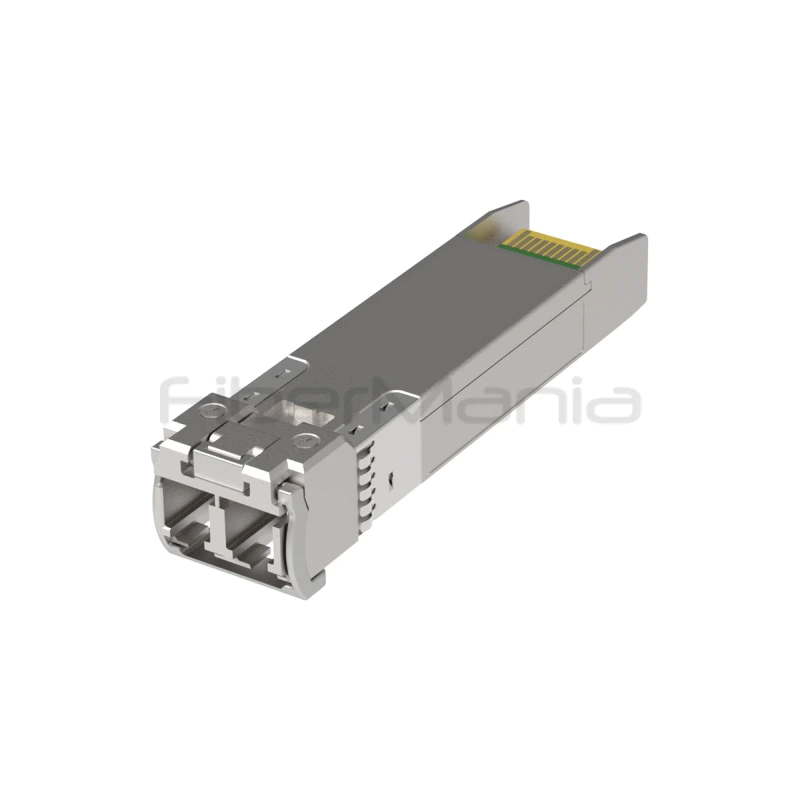

25G SFP28 DWDM 10KM LC single-mode optical transceiver

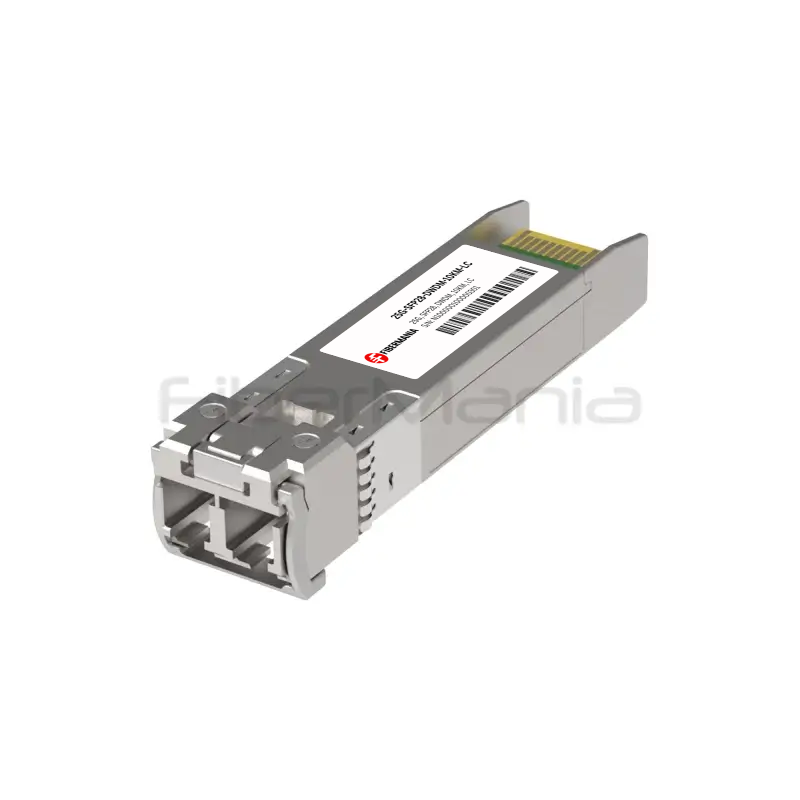

25G SFP28 DWDM Optical Transceiver, 10KM, Single-Mode Fiber, LC

Name: 25G SFP28 DWDM Optical Transceiver 10KM Single-Mode
SKU: 25G-SFP28-DWDM-10KM-LC

P/N: 25G-SFP28-DWDM-10KM-LC

Categories:

25G SFP28

Product Highlights:

25G SFP28 DWDM optical transceiver for dense wavelength-division multiplexing
Supports 25Gbps data rate with transmission up to 10km over single-mode fiber
Hot-pluggable SFP28 form factor with duplex LC interface and DDM monitoring
FiberMania provides OEM, ODM, and private-label services with flexible customization and reliable mass production

Description

The 25G SFP28 DWDM 10KM optical transceiver is a high-performance module designed for dense wavelength-division multiplexing in modern high-speed optical networks. Operating on DWDM channels from C121 to C70, it enables multiple 25Gbps data streams to be transmitted over a single strand of single-mode fiber, maximizing bandwidth utilization and minimizing fiber deployment costs.

Supporting transmission distances up to 10 kilometers, this transceiver is ideal for 5G fronthaul, data center interconnects, and telecom network applications where high channel density, low latency, and reliable performance are essential. Its EML laser and high-sensitivity PIN receiver provide stable optical performance, while its digital diagnostics monitoring (DDM) ensures real-time access to key operational parameters.

Built in a hot-pluggable SFP28 form factor with a duplex LC interface, the module integrates seamlessly with standard 25G network equipment. Its all-metal housing offers superior EMI protection, and wide operating temperature tolerance from -40°C to +85°C ensures reliable operation in challenging environments.

Specification

Form Factor	SFP28
Data Rate	25Gbps
Wavelength	DWDM (C121–C70)
Transmission Distance	Up to 10km
Fiber Type	Single-Mode Fiber (SMF)
Connector	Duplex LC
Transmitter	EML Laser
Receiver	PIN
Electrical Interface	25GAUI
Diagnostic Function	Digital Diagnostic Monitoring (SFF-8472 Rev 10.2)
Power Supply	Single +3.3V
Power Consumption	<2.0W
Housing	All-metal
Operating Temperature	-40°C to +85°C
Compliance	SFP28 MSA, SFF-8472, RoHS, EU Directive 2015/863/EU

Features

Supports 25Gbps data rate
DWDM wavelength channels C121–C70
Transmission distance up to 10km over single-mode fiber
EML laser transmitter and PIN receiver
Hot-pluggable SFP28 form factor
Duplex LC optical interface
High-speed 25GAUI electrical interface
Digital Diagnostic Monitoring compliant with SFF-8472 Rev 10.2
All-metal housing for superior EMI performance
Single +3.3V power supply
Power consumption <2.0W
Wide operating temperature: -40°C to +85°C
Complies with EU Directive 2015/863/EU

Applications

5G fronthaul and mobile transport networks
Data center interconnects
Metro and telecom DWDM networks
High-density 25G Ethernet deployments
Bandwidth expansion over single-fiber infrastructure

FAQ

What DWDM channels does this module support?
It operates on ITU-T DWDM channels C121 to C70 for dense wavelength multiplexing.

What is the maximum transmission distance?
This transceiver supports up to 10km over standard single-mode fiber.

Does it support real-time diagnostics?
Yes, it features Digital Diagnostic Monitoring (DDM) for real-time monitoring of temperature, voltage, bias current, and optical power.

Is this transceiver suitable for extreme environments?
Yes, it supports a wide operating temperature range from -40°C to +85°C for industrial and telecom applications.

Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label manufacturing, including labeling, coding, wavelength customization, and performance tuning.
