10 Port FTTA Fiber Optic Termination Box Waterproof Hardened Connector to SC Patch Cable Outdoor Fiber Distribution Enclosure
Categories:
Product Highlights:
- 10-port high-density FTTA termination solution
- Hardened waterproof connector system for SC patch cables
- Plug-and-play installation eliminates splicing work
- High-strength welded enclosure for superior sealing
- Flexible splitter integration for scalable network design
- Ideal for FTTH/FTTA rapid deployment projects
Table of Contents
Description

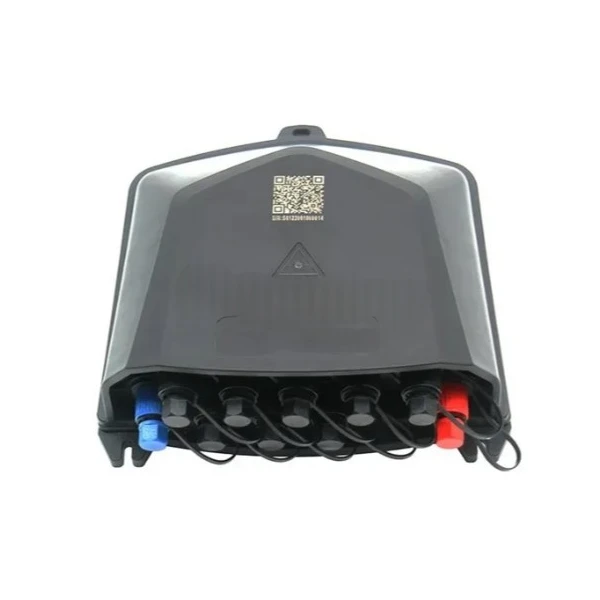

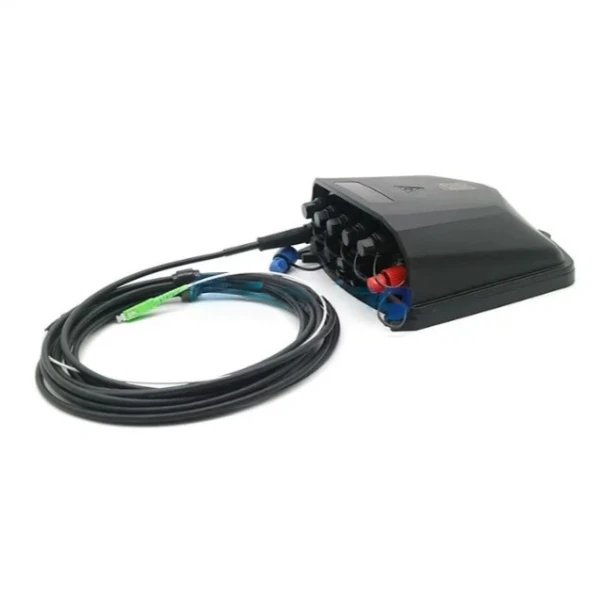

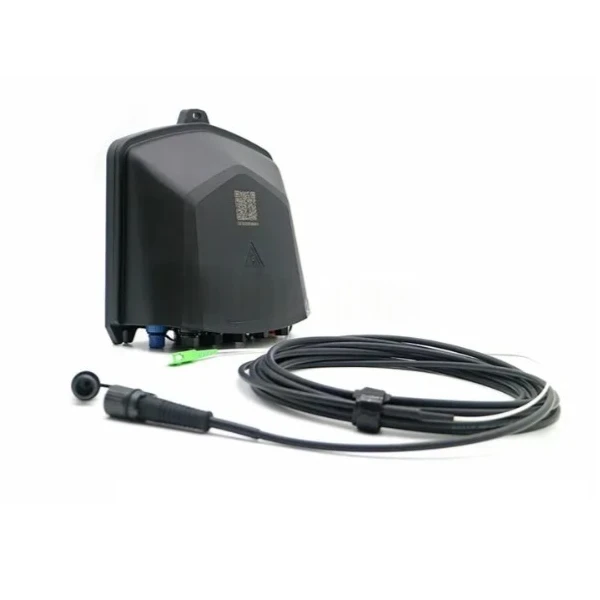

The 10 Port FTTA Fiber Optic Termination Box is a compact, high-efficiency outdoor fiber distribution and termination solution designed for FTTA and FTTx access networks. It serves as a reliable interface between feeder optical cables and subscriber-side SC patch cables, enabling fast and stable fiber deployment without the need for field fusion splicing. Equipped with waterproof hardened connectors, the box supports direct plug-in connections that significantly simplify installation while improving network reliability. Its enclosure is manufactured using advanced high-temperature welding and sealing technology, ensuring strong resistance to moisture, dust, and environmental stress. With a flexible internal layout that supports various splitter configurations, this termination box is well-suited for broadband expansion, last-mile connectivity, and rapid network rollout scenarios.
10-port FTTA Fiber Termination Box Installation:
Specification
| Dimensions | 195 × 195 × 85 mm |
|---|---|
| Weight | 1.0 kg |
| Connector Capacity | Up to 11 pre-terminated connectors |
| Splitter Support | 1 × 1:8 or 2 × 1:4 mini PLC splitters |
| Installation | Direct-buried / Duct / Wall / Pole / Aerial |
| Material | High-strength engineering plastic |
| Sealing Method | High-temperature welding |
| Inner Carton | 215 × 215 × 95 mm |
| Outer Carton | 430 × 430 × 310 mm |
Features
- 10-port compact FTTA fiber termination and distribution design
- Waterproof hardened connectors for direct SC patch cable connection
- No field splicing required for fast plug-and-play installation
- High-temperature welded enclosure for enhanced sealing and durability
- Flexible internal structure supporting multiple PLC splitter options
- Designed for outdoor FTTA and FTTx network deployments
- Strong resistance to moisture, dust, and environmental aging
- Optimized for rapid installation and network expansion
Applications
- FTTA base station fiber connectivity
- FTTH last-mile broadband access
- Outdoor telecom distribution networks
- ISP subscriber connection points
- Rural and urban fiber rollout projects
- Smart city communication infrastructure
- Network maintenance and emergency restoration
FAQ
Q1: Does this termination box require fusion splicing?
No. It uses waterproof hardened connectors that allow direct connection to SC patch cables, eliminating the need for field splicing.
Q2: What is the advantage of hardened connectors?
Hardened connectors provide a sealed, durable interface that ensures stable performance in outdoor environments while simplifying installation.
Q3: Can this box support splitters?
Yes. It has a flexible internal design that supports multiple PLC splitter configurations depending on network requirements.
Q4: Is it suitable for outdoor environments?
Yes. The enclosure uses high-temperature welding and sealing technology for strong resistance to moisture, dust, and harsh weather conditions.
Q5: Where is this product typically used?
It is widely used in FTTA base stations, FTTH access networks, and outdoor broadband distribution systems.
FTTA MST Boxes Comparison Table
| SKU | Fiber Capacity | External Ports | Connector Interface | Internal Configuration | Splitter | IP Rating | Mounting |
| MST01-24MAMLCSL | 24 | 12 | OptiTap MPO | Yes/Optional | 2MPO – 24 LC Harness | IP68/IP67 | Pole/Wall Mount |
| MST01-4MAMSASL-P30FT | 4 | 4 | OptiTap SC/APC | Yes/Optional | 1 to 4 | IP67 | Pole/Wall Mount |
| MST011-816PSCA | 8 | 4 or 8 | Customed | Optional | Optional | Optioanl | Wall Mount |
| MST013-16PMSC | 16 | 16 | Mini SC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST015-12P19 | 12 to 24 | 12 | Customed | Optional | 1:09 | IP68 | Wall Mount |
| MST016-1016PSA | 10 to 16 | 8 | SC/APC | Splice Tray | Optional | IP68 | Pole/Wall Mount/Aerial |
| MST017-10PFAT | 10 | 10 | Customed | Optional | Optional | IP68 | Pole/Wall Mount |
| MST02-12MAMLCSL | 12 | 6 | OptiTap MPO | Pre-terminated | Optional | IP67 | Wall Mount |
| MST020-12A | 24 | 24 | Hardened Adapter | Pre-terminated | 2 to 24 | IP68/IP67 | Wall Mount |
| MST022-12P | 12 | 12 | Mini SC Harneded | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST024-24C | 8 to 16 | 8 | SuperTap | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST023-16PSC | 16 | 16 | SC FastConnector | Pre-terminated | Optional | IP68/IP67 | Wall Mount |
| MST04-M16ST | 6 | 6 | SuperTap | Pre-terminated | PLC | IP67 | na |
| MST06-68 | 4 to 12 | 4/5/8/12 | SuperTap | Pre-terminated | PLC | IP68 | Wall Mount |
