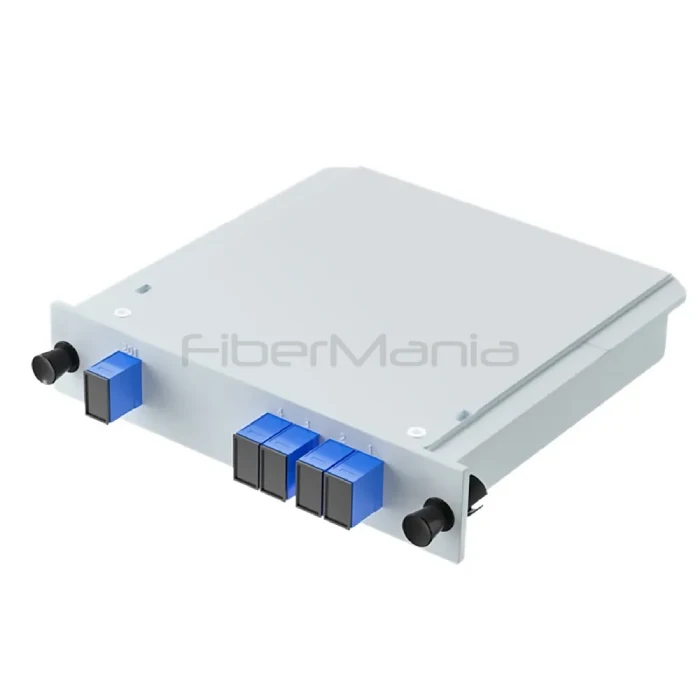

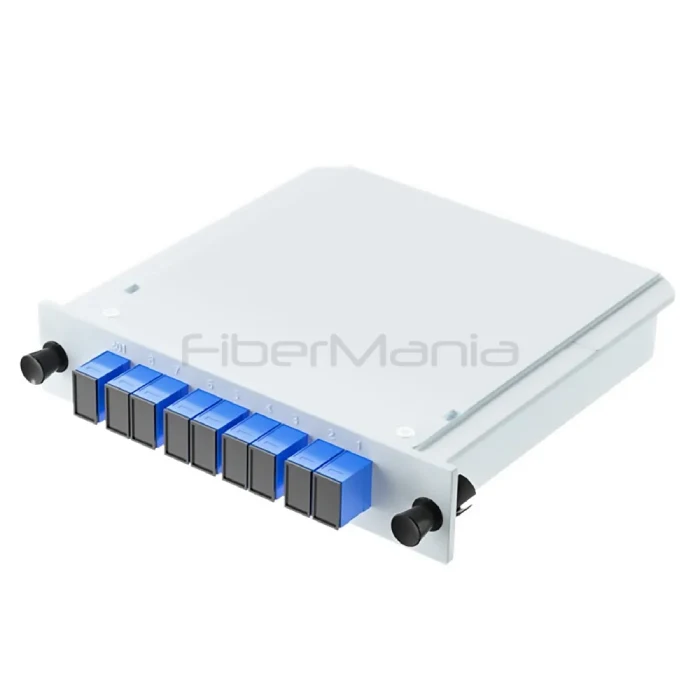

PLC Splitter LGX Cassette SC/UPC Module 1×2 to 1×32
Categories:
Product Highlights:
- High-performance PLC splitter module with flexible split ratios from 1×2 to 1×32
- LGX cassette design with pre-terminated connectors for fast and easy deployment
- Stable optical performance with low loss and wide wavelength compatibility
- FiberMania provides OEM and customization services including private labeling and tailored configurations
Table of Contents
Description
The PLC Splitter LGX Cassette SC/UPC Module is a versatile optical distribution solution engineered to deliver consistent and efficient signal splitting across multiple outputs. Based on planar lightwave circuit technology, it provides stable optical performance with low loss and excellent uniformity, making it suitable for a wide range of fiber optic network architectures. With split ratios ranging from 1×2 to 1×32, this module supports scalable network expansion while maintaining signal integrity.

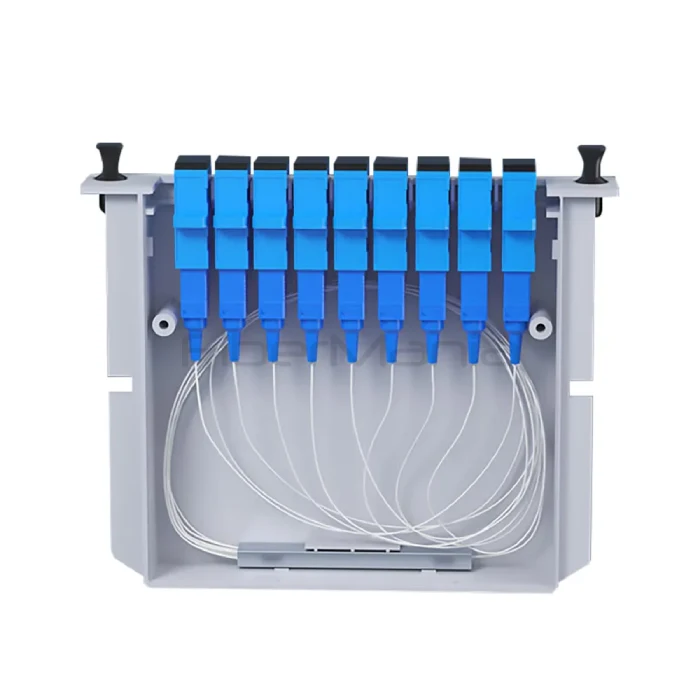

Designed in a standard LGX cassette housing, the module allows seamless integration into fiber distribution frames, cabinets, and rack systems. The pre-terminated SC/UPC connectors ensure quick installation and reliable connectivity, reducing deployment time and minimizing field labor. Its robust construction enables stable operation across demanding environmental conditions, ensuring long-term reliability in both indoor and outdoor applications.
Supporting multiple fiber types such as G657A1 and G652D, this splitter module offers flexibility for different network requirements. It complies with major international standards, ensuring quality consistency and compatibility with global telecom systems. Whether used for broadband access or data communication infrastructure, this module delivers dependable optical performance and installation convenience.
Specification
| Connector Type | SC/UPC |
|---|---|
| Split Ratios | 1×2, 1×4, 1×8, 1×16, 1×32 |
| Operating Wavelength | 1260 – 1650 nm |
| Insertion Loss | 1×2: ≤3.8 dB, 1×4: ≤7.0 dB, 1×8: ≤10.5 dB, 1×16: ≤14.0 dB, 1×32: ≤16.5 dB |
| Return Loss | UPC: ≥50 dB |
| PDL | ≤0.3 dB |
| Housing | LGX Cassette |
| Standards | Telcordia GR-1221/1209, RoHS, ISO9001, CE, FCC |
Features
- Multiple split ratios available from 1×2 to 1×32
- Low insertion loss with high signal uniformity
- Standard LGX cassette design for easy installation
- Pre-terminated SC/UPC connectors for plug-and-play deployment
- Wide operating wavelength range from 1260 nm to 1650 nm
- Low polarization dependent loss and high return loss
- Compatible with G657A1 and G652D fiber types
- Reliable performance under wide temperature conditions
Applications
- FTTH, FTTB, and FTTx access networks
- Passive optical network (PON) systems
- CATV optical signal distribution
- Data communication and telecom infrastructure
- Fiber optic equipment and system integration
FAQs
What split ratios are available for this module?
This PLC splitter module supports a range of split ratios including 1×2, 1×4, 1×8, 1×16, and 1×32, allowing flexible network design and scalability.
Can this module be easily installed in existing systems?
Yes, the LGX cassette format is standardized, making it compatible with most fiber distribution frames and cabinets for quick installation.
Is the connector type customizable?
While SC/UPC is standard, other connector types and polishing options can be customized based on specific project requirements.
What fiber types are supported?
The module supports G657A1 and G652D fibers, ensuring compatibility with various network environments and bending requirements.
Do you provide OEM or private label services?
Yes, FiberMania offers comprehensive OEM and ODM services including customized specifications, branding, and packaging solutions.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
