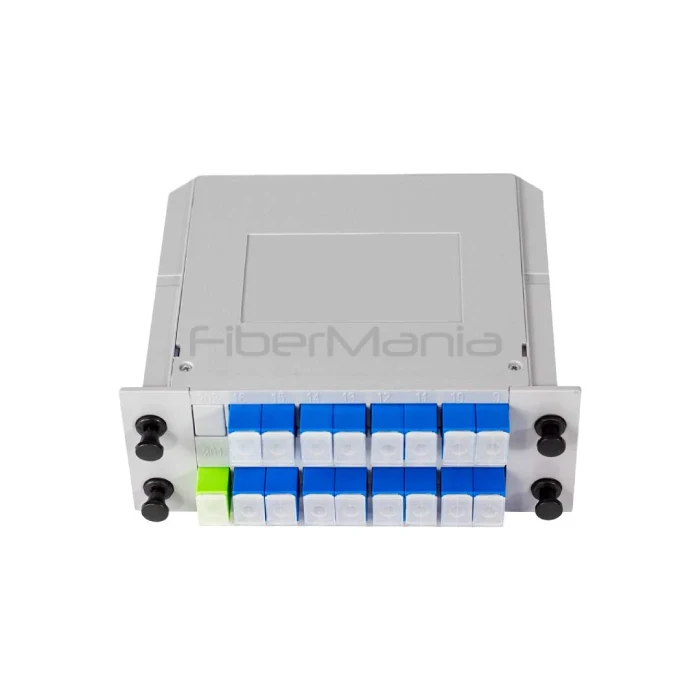

1×16 PLC Splitter SC/APC to SC/UPC LGX Cassette Module
Categories:
Product Highlights:
- High-performance 1×16 PLC splitter with stable and uniform signal distribution
- LGX cassette design ensures easy installation in standard racks
- Low insertion loss and wide wavelength support for reliable transmission
- OEM/ODM customization available with private labeling and tailored configurations from FiberMania
Table of Contents
Description
The 1×16 PLC Splitter SC/APC to SC/UPC LGX Cassette Module is a high-performance optical signal distribution solution designed for modern fiber optic networks. Built using advanced planar lightwave circuit (PLC) technology, this module ensures precise and uniform signal splitting across 16 output channels, making it ideal for high-density passive optical network deployments.
Engineered in a compact LGX cassette format, this splitter module allows seamless integration into standard racks and enclosures, simplifying installation and maintenance. Its robust construction ensures long-term stability across a wide operating temperature range, making it suitable for both indoor and outdoor network environments. The SC/APC input combined with SC/UPC outputs provides flexibility for various network configurations while maintaining excellent return loss and minimal back reflection.
With low insertion loss, high directivity, and excellent wavelength stability, this splitter module supports reliable signal transmission in demanding applications such as FTTH, CATV, and data communication systems. It is designed to meet the performance expectations of telecom operators, data centers, and infrastructure providers requiring consistent and scalable optical distribution.
Specification
| Connector Type | SC/APC (Input), SC/UPC (Output) |
|---|---|
| Split Ratio | 1×16 |
| Operating Wavelength | 1260–1650 nm |
| Fiber Type | G657A or customized |
| Insertion Loss | 13.8 dB |
| PDL | ≤ 0.25 dB |
| Return Loss | ≥ 55 dB |
| Bare Device Size | 60 × 7 × 4 mm |
| Module Size | 100 × 80 × 18 mm |
Features
- High uniformity for balanced optical signal distribution
- Low insertion loss for improved transmission efficiency
- Compact LGX cassette design for easy deployment
- Wide operating wavelength range (1260–1650 nm)
- Excellent return loss and low polarization dependent loss
- High reliability under extreme temperature conditions
- Flexible fiber and connector customization options
Applications
- FTTH, FTTB, and FTTC network deployments
- Passive Optical Networks (PON)
- CATV fiber distribution systems
- Data centers and telecom infrastructure
- Fiber optic testing and monitoring systems
FAQs
What is the advantage of using a 1×16 PLC splitter in fiber networks?
A 1×16 PLC splitter allows a single optical signal to be distributed evenly to 16 outputs, making it highly efficient for large-scale FTTH deployments while maintaining stable performance and low signal loss.
Can the connector types be customized?
Yes, the module supports flexible customization, including SC, LC, FC connectors, as well as APC or UPC polishing types, depending on your project requirements.
Is this splitter suitable for outdoor environments?
Yes, it is designed to operate reliably within a wide temperature range from -40°C to 85°C, making it suitable for both indoor and outdoor installations.
What fiber types are supported?
The splitter typically uses G657A fiber, but customization options are available to meet specific bending or transmission requirements.
Do you offer OEM or private label services for this product?
Yes, FiberMania provides full OEM and ODM services, including custom labeling, packaging, and product configuration to match your brand and technical needs.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
