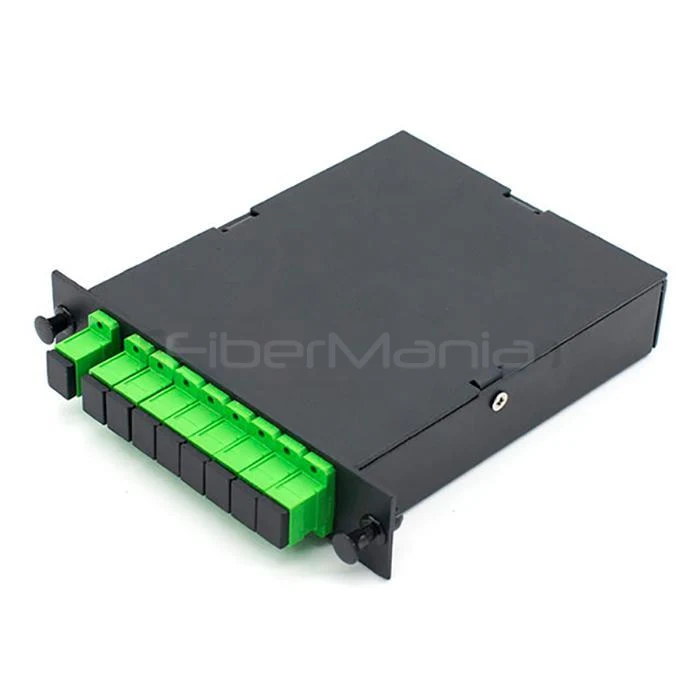

1×8 SC/APC LGX PLC Splitter Cassette Module
Categories:
Product Highlights:
-
Compact LGX cassette with SC/APC connectors for high-density applications.
-
Low insertion loss and PDL with excellent uniformity across 8 outputs.
-
Wide wavelength range and high reliability for PON and metro networks.
Table of Contents
Description
The 1×8 SC/APC LGX PLC Splitter Cassette Module is a high-precision optical power management device designed for efficient signal distribution in fiber optic networks. Utilizing planar lightwave circuit (PLC) technology with silica optical waveguides, it offers uniform signal splitting, low insertion loss, and high reliability. Its compact LGX form factor makes it ideal for high-density PON, CATV, and metro network deployments.
Specification
| Split Ratio | 1×8 |
|---|---|
| Input Connector | SC/APC |
| Output Connector | SC/APC |
| Fiber Type | Single-mode |
| Wavelength Range | 1260nm ~ 1650nm |
| Insertion Loss | ≤13dB typical |
| PDL | ≤0.3dB |
| Uniformity | ≤1.5dB |
| Module Material | LGX cassette |
| Operating Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209/GR-1221, RoHS, UL |
| Applications | FTTx, CATV, Access Networks, Metro, Long-Haul Telecom |
Features
-
Low insertion loss and low polarization dependent loss (PDL).
-
Compact LGX cassette design for easy rack or cabinet installation.
-
Wide operating wavelength range: 1260nm ~ 1650nm.
-
Excellent channel-to-channel uniformity for consistent signal distribution.
-
High reliability and long-term stable performance.
-
SC/APC input/output connectors for single-mode applications.
Applications
-
FTTx deployments (GPON, BPON, EPON).
-
CCTV and CATV optical distribution networks.
-
Access and metro network signal splitting.
-
Long-haul telecommunications applications.
-
High-density PON enclosures and cabinets.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of an SC/APC PLC splitter cassette?
A: It splits a single optical signal into 8 outputs evenly with low loss, ideal for PON networks and high-density deployments.
Q2: What wavelength does this splitter operate at?
A: It covers a wide operating wavelength range from 1260nm to 1650nm.
Q3: Can this cassette be used in outdoor enclosures?
A: The cassette is intended for indoor racks or cabinets; outdoor use requires a protective enclosure.
Q4: What is the typical insertion loss?
A: Insertion loss is low, typically ≤13dB for 1×8 splitters.
Q5: Are custom fan-out lengths available?
A: Yes, FiberMania provides custom fan-out lengths and connector options for project requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
