MTP Female to 4 LC Duplex Breakout Cable, 8-Fiber OM3 Multimode, 50/125μm
Categories:
Product Highlights:
- 8-fiber OM3 50/125μm multimode cable
- MTP female to 4 LC duplex
- US Conec MTP® connector
- Corning ClearCurve® fiber
- Ruggedized high-density fanout
- Factory pre-terminated
- Optional 3D interferometer testing
- OEM customization and branding
Table of Contents
Description

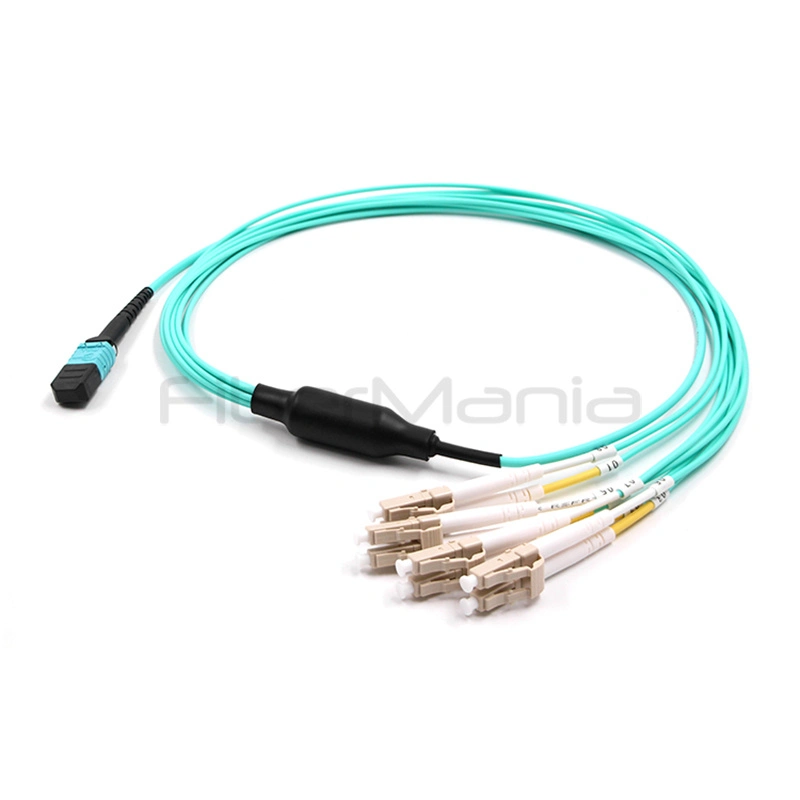

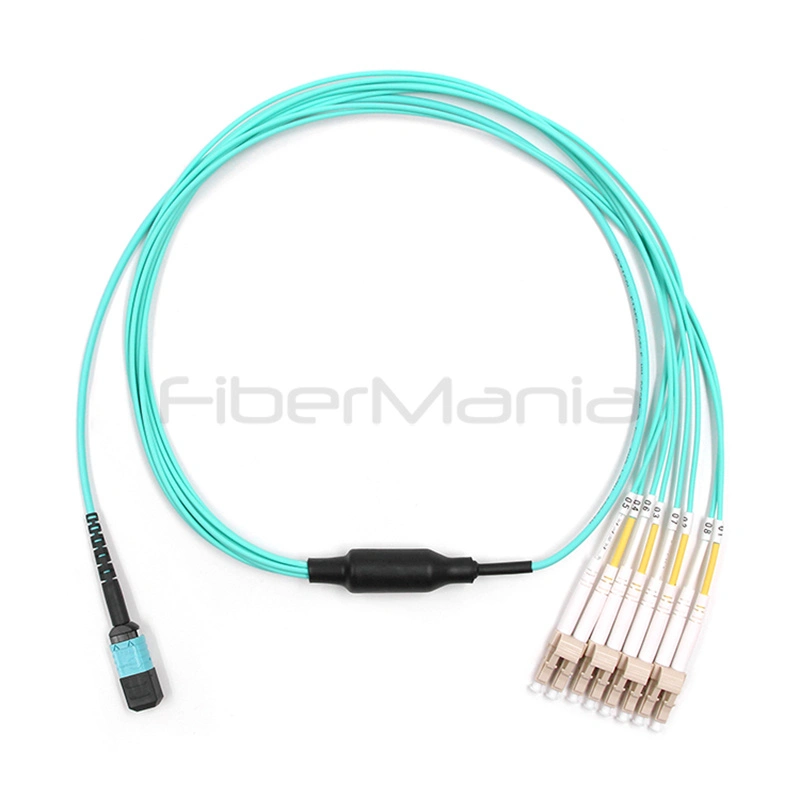

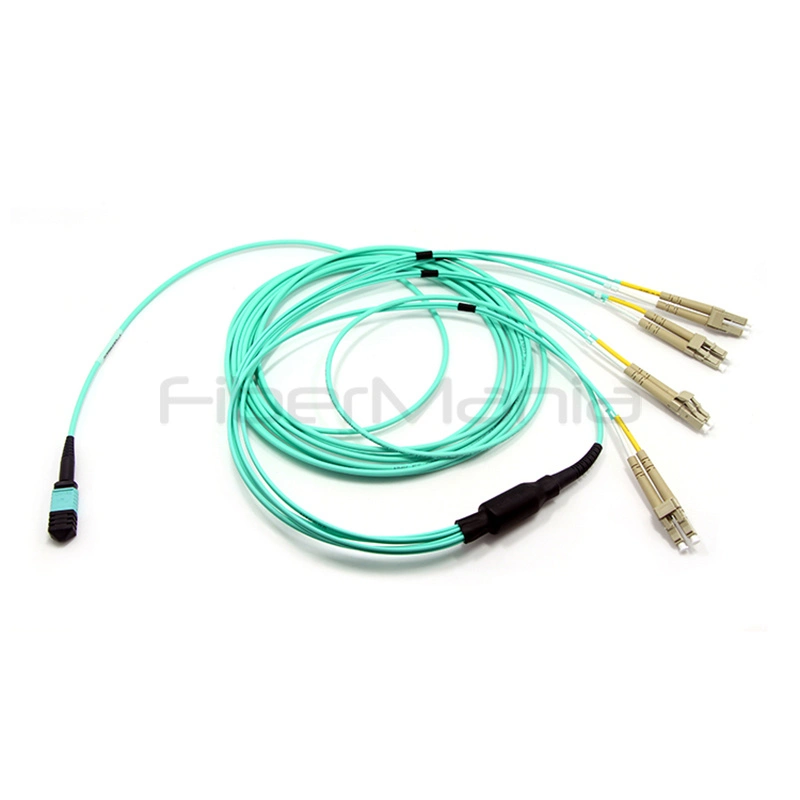

The MTP Female to 4 LC Duplex Breakout Cable is a high-density 8-fiber multimode assembly designed to split one MTP connection into four individual LC duplex connections. It uses OM3 50/125μm multimode fiber with a US Conec MTP® female connector and LC UPC duplex connectors, providing a compact and efficient solution for connecting high-density backbone cabling to active network equipment. Corning ClearCurve® glass fiber supports reliable 850nm and 1300nm transmission with low insertion loss, while the ruggedized fanout design simplifies installation and reduces the need for additional rack space. Factory pre-termination and optional 3D interferometer testing make it suitable for data centers, telecommunications networks, high-density cross-connects, and structured fiber cabling systems.
Specification
| Connection Structure | MTP to LC Duplex |
|---|---|
| Connector A | US Conec MTP? Female (Pinned) |
| Connector B | LC UPC Duplex |
| Fiber Count | 8 Fibers |
| Breakout Configuration | 1 × MTP to 4 × LC Duplex |
| Fiber Type | Multimode Fiber |
| Fiber Mode | OM3 |
| Fiber Size | 50/125μm |
| Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve? |
| MTP Connector IL | 0.35dB Max, 0.15dB Typ. |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 66N |
| Allowed Tensile Strength | <100N |
| Cable Shape | Round |
| Application | Communication |
Features
- 8-fiber OM3 50/125μm multimode fiber
- MTP female to 4 LC duplex breakout configuration
- US Conec MTP® female connector
- LC UPC duplex connectors
- Corning ClearCurve® glass fiber
- Low insertion loss and reliable return loss performance
- Ruggedized fanout for direct equipment connection
- Factory pre-terminated for rapid deployment
- Optional 3D interferometer testing
- OEM customization and branding available
- 5-year warranty against defects in material and workmanship
Applications
- Data center fiber networks
- High-density cross-connects
- Backbone-to-equipment connections
- Server and switch interconnections
- Fiber distribution systems
- Telecommunications networks
- Structured cabling systems
- MTP/MPO breakout applications
Q&A
What is the breakout configuration of this cable?
The cable uses one 8-fiber MTP female connector and breaks out into four LC duplex connectors, providing eight individual optical fiber channels.
Why use an MTP-to-LC breakout cable?
It allows a high-density MTP backbone connection to interface directly with individual LC ports on active equipment, reducing patching components, installation time, and rack space requirements.
What type of fiber does this cable use?
This assembly uses OM3 50/125μm multimode fiber, optimized for short- and medium-distance high-speed data center and network applications, particularly around the 850nm wavelength.
Is 3D interferometer testing available?
Yes. Optional 3D interferometer testing can be provided to verify connector end-face geometry and quality according to applicable requirements.
Can the cable be customized or branded?
Yes. Cable length, connector configuration, labeling, branding, and other assembly specifications can be customized for OEM and project requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
