MTP/APC Female to 12 SC/UPC Simplex Fanout Cable 12 Fibers Single Mode 9/125 1M
Categories:
Product Highlights:
-
12-fiber MTP/APC to SC/UPC fanout cable for high-density single mode 9/125µm connections.
-
1-meter pre-terminated breakout cable with rugged 3mm mini round OFNR jacket.
-
Supports plug-and-play deployment in data centers, telecom, LAN/WAN, and SAN networks.
-
FiberMania provides OEM/ODM customization, private labeling, and flexible solutions for client-specific network projects.
Table of Contents
Description

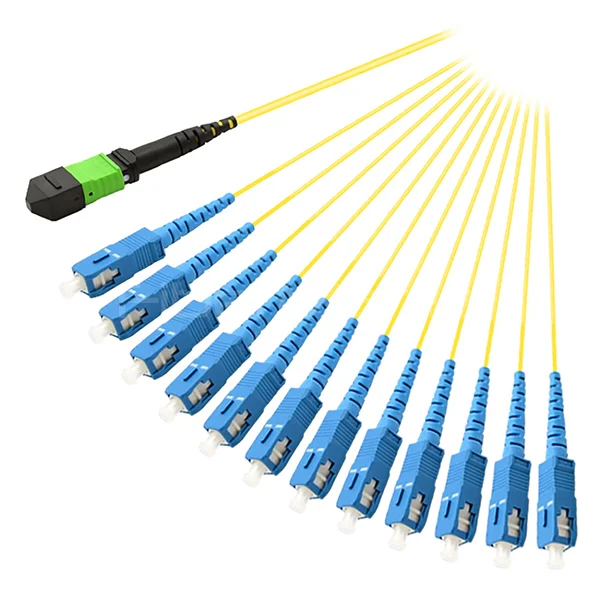

The 12-Fiber MTP/APC Female to SC/UPC Simplex Fanout Cable provides a high-density, pre-terminated solution for connecting backbone MTP/MPO interfaces directly to active equipment with SC ports. The MTP/APC female connector features an angled ferrule for single mode fibers, while the SC/UPC simplex connectors provide reliable terminations for individual fibers. This fanout design enables rapid deployment, reduces installation labor, and eliminates the need for individual fiber runs.
Constructed with 3mm mini round jacketed fiber optic cable and OFNR-rated material, this 12-fiber breakout cable ensures durability, mechanical protection, and minimal bend radius impact. It is ideal for high-speed data transmission applications, supporting 10/40/100Gbps links depending on system configuration. Each cable is factory tested to guarantee low insertion loss, high return loss, and long-term reliability in demanding data center and telecom environments.
Specification
| Connector A | MTP/APC Female |
|---|---|
| Connector B | 12 SC/UPC Simplex |
| Fiber Count | 12 |
| Fiber Type | SM 9/125µm |
| Bandwidth/Data Rate | N/A |
| Cable Length | 1M |
| Jacket Type | Standard |
| Polarity | Standard |
| Application | SM fanout |
| Standards | UL, RoHS |
| Notes | Pre-terminated |
Features
-
High-density fanout for direct MTP to SC connections
-
Pre-terminated factory solution for rapid deployment
-
12-fiber single mode 9/125µm OS2 fibers with APC and UPC terminations
-
Ruggedized 3mm mini round jacketed cable with OFNR rating
-
Factory-tested for low insertion loss and high reliability
-
Reduces rack space usage and simplifies fiber management
-
Ensures consistent performance for high-speed network applications
Applications
-
Data centers and high-density fiber backbones
-
Telecommunications networks
-
Broadband distribution networks
-
LAN, WAN, and SAN interconnections
-
Parallel optics and high-speed 10/40/100Gbps links
FAQ
Q: How many fibers are in this fanout cable?
A: It contains 12 single mode fibers.
Q: What type of fiber does this cable use?
A: OS2 single mode 9/125µm fiber.
Q: What type of MTP connector is used?
A: Female MTP/APC connector (no pins) with angled ferrule.
Q: Can the cable length or jacket type be customized?
A: Yes, FiberMania supports custom lengths, jacket types, breakout diameters, and fiber counts.
Q: What applications is this cable suitable for?
A: High-density data centers, telecom networks, LAN/WAN/SAN interconnects, and high-speed 10/40/100Gbps parallel optics links.
