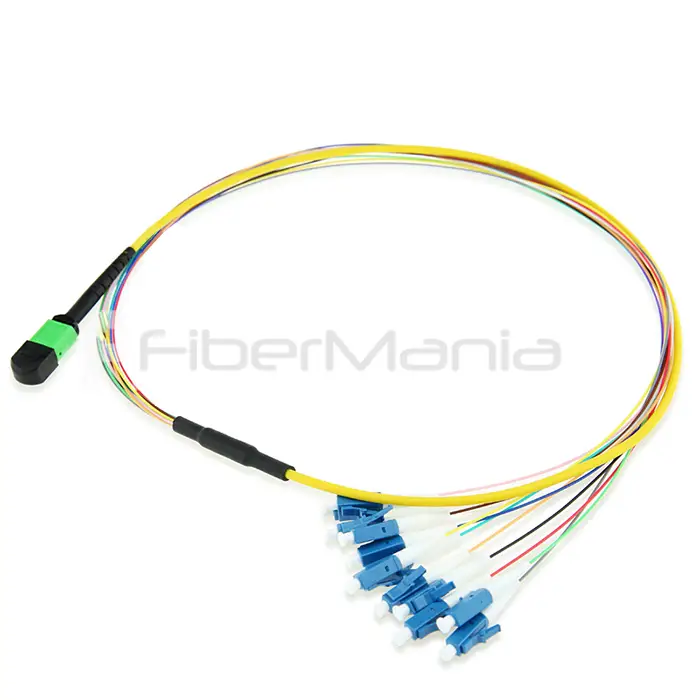

MTP/APC Male to LC Fanout Cable 12 Fibers Single Mode 9/125 1M

Name: MTP/APC Male to LC Fanout Cable 12 Fibers SM | FiberMania
SKU: MAMLC-SM12F9C01

P/N: MAMLC-SM12F9C01

Categories:

MPO/MTP Cable Assemblies

Product Highlights:

12-fiber MTP/APC male to LC/UPC fanout cable, 1M length
High-density single mode solution for data centers and telecom networks
Plug-and-play ready with excellent insertion and return loss performance
FiberMania offers OEM/ODM customization, including custom fiber counts, lengths, and private labeling for optimized deployment

Description

This MTP/APC to LC fanout cable is a high-speed single mode fiber solution designed for seamless connectivity in data centers and high-density networks. The cable terminates with one MTP/APC male connector and 12 LC/UPC connectors, providing six duplex channels within a compact form factor. The pre-terminated design ensures minimal installation time and reliable performance.

Engineered for efficiency and precision, the MTP/APC connector incorporates an angled ferrule for low back reflection and superior signal integrity. This cable assembly is ideal for backbone-to-equipment connections and supports optical systems operating at 9/125µm single mode fiber.

Specification

Connector A	MTP/APC Male
Connector B	LC Fanout
Fiber Count	12
Fiber Type	Single Mode 9/125µm
Bandwidth/Data Rate	N/A
Cable Length	1M
Jacket Type	Standard
Polarity	Standard
Application	Single-mode fanout
Standards	UL, RoHS
Notes	Pre-terminated

Features

MTP/APC male to 12 LC/UPC connectors
High-density fanout for efficient space utilization
Excellent exchangeability and plug-and-play ready
Low insertion loss and high return loss performance
Compliant with Telcordia GR-1435-CORE standards
Single mode 9/125µm fiber

Applications

Data center interconnections
Telecommunication networks
High-density cross-connects
Optical switch inter-frame connections

FAQ

Q: What fiber type is used?
A: OS2 single mode 9/125µm fiber.

Q: Can this cable be used with MPO connectors?
A: Yes, MTP/APC connectors are fully compatible with standard MPO ports.

Q: What is the maximum fiber count supported?
A: This assembly contains 12 fibers with six duplex channels.

Q: Are custom lengths available?
A: Yes, FiberMania provides custom lengths, jacket types, and colors for OEM/ODM solutions.

Q: What is the typical insertion loss?
A: ≤0.35dB per channel (factory tested).

MPO/MTP Assemblies Selection Guide Table

SKU	Fiber Count	Connector A	Connector B	Fiber Mode	Cable Structure	Features	Length	Color
FP-12MAMSM9-0.15	12	MPO/APC Male	Non	OS2 Single Mode	Ribbon Pigtail	Bare Fiber	0.15M	NA
MAFLA-SM12S3RYL01	12	MTP/APC Female	12 * LC/APC Simplex	OS2 Single Mode	Fanout		1M	Yellow
MAFSA-SM12S3RYL01	12	MTP/APC Female	12 SC/APC Simplex	OS2 Single Mode	Fanout		1M	Yellow
MAMLC-SM24F9C01	24	MTP/APC Male	24 * LC/UPC	OS2 Single Mode	Fanout Boot	24 Bare Fiber	1M	Yellow
MAMLCD-SM8F9C0.3	8	MPO/APC Male	4 LC/UPC Duplex	OS2 Single Mode	Harness Fanout	Hytrel	0.3M
MPFLC-M112M3ROR01	12	MTP Female	12 LC Simplex	OM1	Fanout		1M	Orange
MPFLC-M312M3RAQ01	12	MTP Female	12 * LC Simplex	OM3	Fanout		1M	Aqua
MPFLCUP-M48M3RMG01	8	MTP Feamle	4 * LC Duplex	OM4	Fanout	Pull Tab	1M	Violet
MPM3MPF-M424M3RMG05	24	MPO Male	3 * MPO Female 8-F	OM4	Fanout		5M	Violet
MPMLC-M312F9C0.3	12	MTP Male	12 * LC UPC	OM3	Harness Fanout	Hytrel	0.3M
MPMLC-M412F9C	12	MTP Male	12 * LC	OM4	Harness Fanout	Hytrel	0.3M	Magenta
MPMLC-M48M3RMG15	8	MTP Male	4 * LC Duplex	OM4	Fanout		3M	Violet
