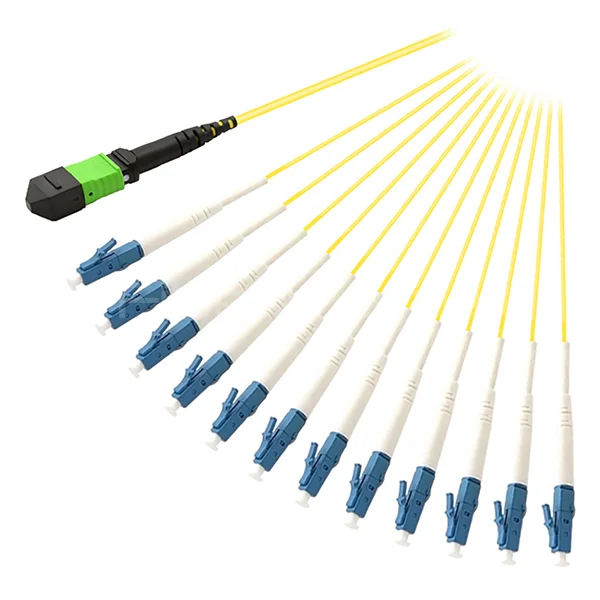

MTP/APC Female to 12 LC Simplex Fanout Cable 12 Fibers Single Mode 9/125 1M
Categories:
Product Highlights:
-
High-density 12-fiber MTP/APC to LC simplex fanout cable for direct backbone-to-equipment connections.
-
Uses single mode 9/125 µm OS2 fiber for reliable long-distance data transmission.
-
Factory-terminated modular system enables rapid deployment and minimizes installation labor.
Table of Contents
Description
The MTP/APC Female to 12 LC Simplex Fanout Cable is engineered for high-performance single mode networks, enabling efficient and organized connections between MTP backbone trunks and LC simplex ports on active equipment. The female MTP/APC connector (without pins) ensures easy installation, while the 12 LC simplex connectors provide high-density termination in limited rack space. Utilizing 9/125 µm OS2 single mode fiber, this cable supports high-speed data transmission across long distances. Factory-terminated and fully tested, it delivers exceptional reliability for data centers, telecommunication networks, and enterprise backbone applications.
Specification
| Connector Types | MTP/APC to LC/UPC Simplex |
|---|---|
| MTP Connector Gender | Female (without pins) |
| Fiber Type | OS2 Single Mode 9/125 µm |
| Fiber Strands | 12 Fibers |
| Cable Jacket | 3mm mini round jacketed fiber optic cable |
| Jacket Type | OFNR |
| Break-out Diameter | 2.0 mm |
| Cable Length | 1 Meter |
| Color | Yellow |
| Features | High-density, ruggedized fanout, factory-terminated, rapid deployment |
| Applications | Data center, telecom, broadband, LAN/WAN, SAN |
| Certifications | UL & RoHS Compliant |
Features
-
High-density ruggedized fanout for backbone-to-equipment connections
-
Factory-terminated modular system for fast installation
-
100% tested for reliability and performance
-
Female MTP/APC connector compatible with standard MTP ports
-
OS2 9/125 µm single mode fiber supports high-speed, long-distance transmission
-
Compact LC simplex connectors minimize space usage and optimize airflow
Applications
-
Data center backbone and high-density connections
-
Telecommunication networks and FTTX deployments
-
Broadband network installations, LAN, WAN, SAN
-
Direct connection between MTP backbone trunks and active equipment
FAQ
Q1: What fiber type is used in this cable?
A1: Single mode OS2 fiber, 9/125 µm.
Q2: What MTP connector type and gender is included?
A2: Female MTP/APC connector without pins.
Q3: Can this cable be installed in high-density racks?
A3: Yes, LC simplex fanout connectors reduce rack space usage.
Q4: Is it suitable for long-distance single mode transmission?
A4: Yes, 9/125 µm OS2 fiber supports long-distance high-speed transmission.
Q5: Can custom lengths or colors be provided?
A5: Yes, FiberMania offers OEM/ODM customization including lengths, colors, and connector configurations.
