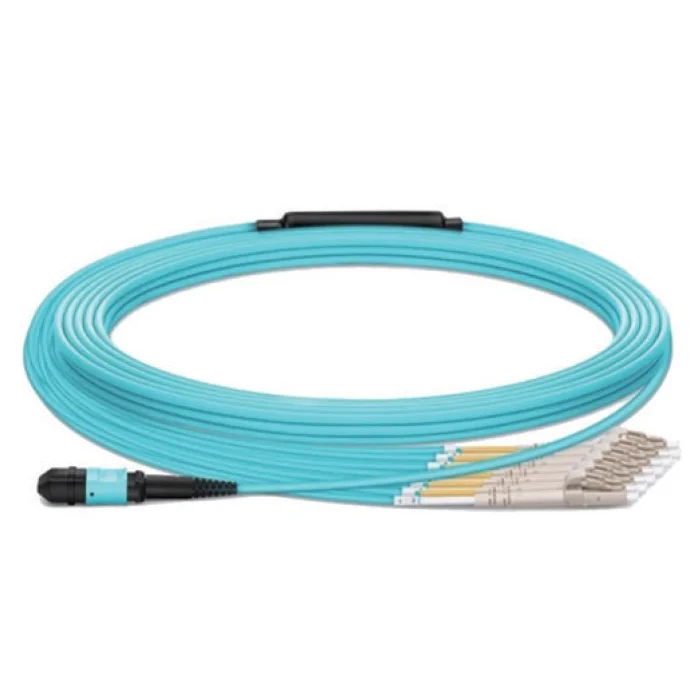

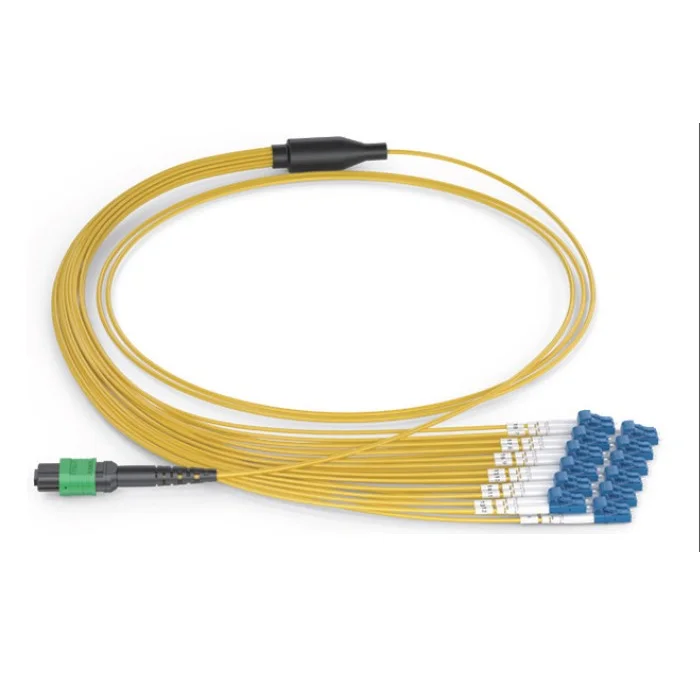

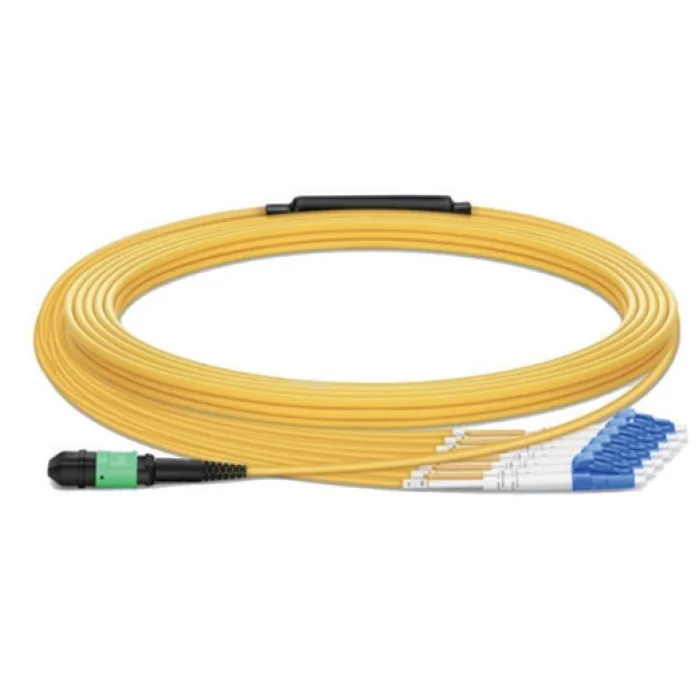

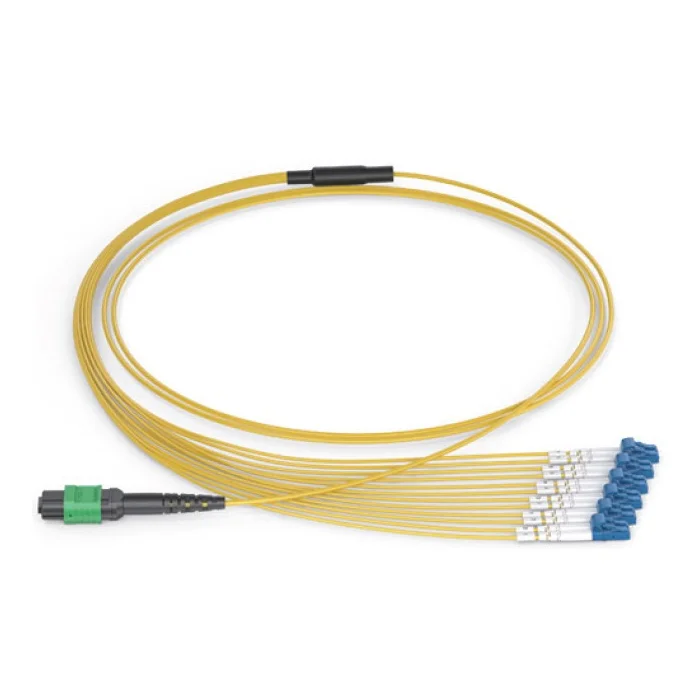

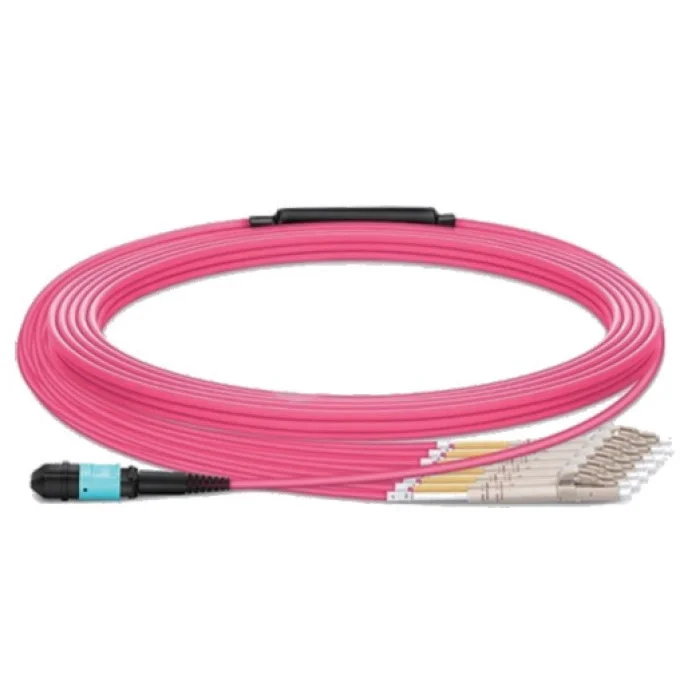

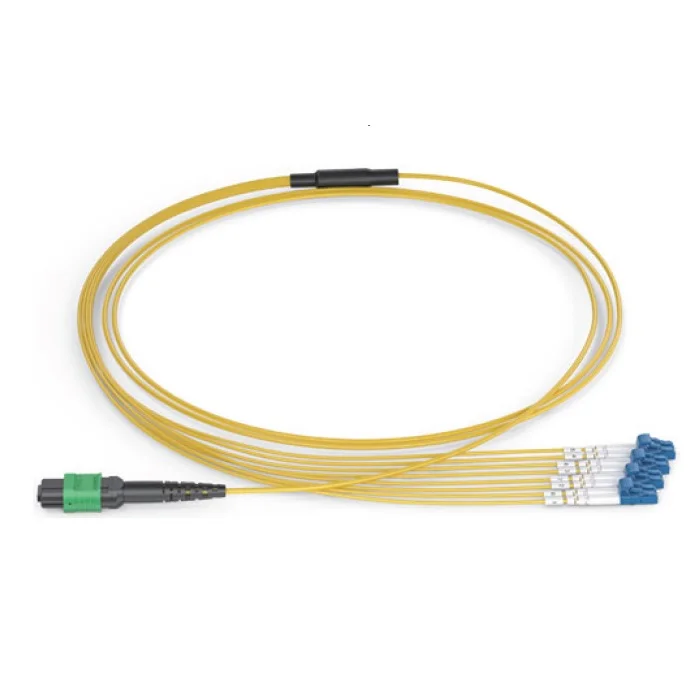

MPO to LC/SC/FC/ST Fanout Patch Cord 2–24 Fiber | Hybrid Breakout Cable Custom
Categories:
Product Highlights:
- MPO to multi-connector fanout cable supporting 2–24 fiber breakout
- Enables direct transition from MPO backbone to standard interfaces
- Reliable, low-loss performance for high-speed network applications
Table of Contents
Description
The MPO to standard connector fanout patch cord is a versatile hybrid breakout solution designed to convert a high-density MPO interface into multiple individual fiber connections. Supporting configurations from 2 to 24 fibers, it enables seamless transition from MPO backbone cabling to conventional connectors such as LC, SC, FC, or ST. This makes it an essential component in modern fiber optic networks where both high density and compatibility are required.
With its fanout structure, the cable distributes multiple fibers from a single MPO connector into separate channels, allowing direct connection to active equipment like switches, transceivers, and patch panels. This simplifies network architecture and reduces the need for additional conversion modules. The design also enhances flexibility in deployment, making it easier to manage and scale fiber connections in complex environments.
Built with precision termination and high-quality materials, the fanout patch cord ensures low insertion loss, stable transmission, and long-term reliability. It supports both singlemode and multimode fiber types and is optimized for high-speed applications such as 10G, 25G, 40G, and 100G networks, making it a practical and scalable solution for data centers and enterprise infrastructure.
Dimension of MPO N Cores Fanout Hybrid Patch Cord
MPO Cable Features
Specification
| Connector Type | MPO to LC / SC / FC / ST |
|---|---|
| Fiber Count | 2–24 Fibers |
| Polarity | Type A / Type B / Type C |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 |
| Fanout Length | Customizable |
| Cable Length | Customizable |
| Cable Jacket | LSZH / PVC / OFNP |
| Insertion Loss | ≤ 0.35dB (MPO), ≤ 0.2dB (standard connectors) |
| Return Loss | ≥ 60dB (SM) / ≥ 20dB (MM) |
| Operating Temperature | -20°C to +70°C |
| Standards | IEC / TIA compliant |
Features
- Supports 2 to 24 fiber breakout configurations
- Converts MPO to LC, SC, FC, ST, and other standard connectors
- Fanout design enables flexible fiber distribution
- Low insertion loss and high return loss performance
- Suitable for singlemode and multimode applications
- Compatible with high-speed networks up to 100G
- Durable construction for long-term reliability
- Fully customizable fiber type, length, and connector options
Applications
- Data center backbone to equipment connectivity
- Structured cabling systems
- Switch and transceiver interconnections
- Patch panel fiber distribution
- Enterprise and campus networks
- High-speed optical communication systems
FAQ
Q1: What is the difference between a fanout cable and a harness cable?
A: A fanout cable is typically used for external breakout from MPO to multiple connectors, while a harness cable is more often designed for internal use inside cassette modules with shorter breakout lengths.
Q2: Which connectors can be used on the breakout side?
A: The cable can be customized with LC, SC, FC, ST, or other standard connectors depending on application requirements.
Q3: Is this cable suitable for direct connection to network equipment?
A: Yes, it is specifically designed to connect MPO backbone links directly to switches, transceivers, and patch panels.
Q4: Can this cable support multimode and singlemode systems?
A: Yes, it is available for both singlemode (OS2) and multimode (OM3/OM4/OM5) fiber types.
Q5: What customization options are available?
A: Fiber count, connector types, cable length, fanout design, and labeling can all be customized to meet specific project or OEM requirements.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
