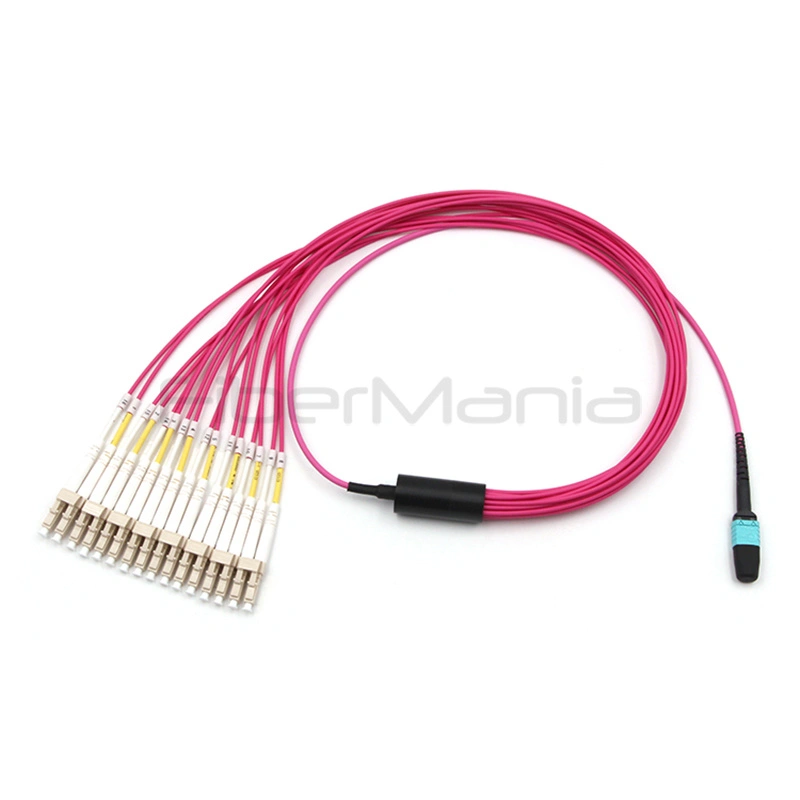

MTP Female to 16 LC Duplex Fanout Cable, 16-Fiber OM4 Multimode
Categories:
Product Highlights:
- 16-fiber OM4 MTP female to 16 LC duplex breakout
- Corning ClearCurve® multimode fiber
- US Conec MTP® female connector
- Ruggedized fanout for direct equipment connection
- Factory terminated and 100% optical tested
- Suitable for high-density data center and telecom applications
Table of Contents
Description
The MTP Female to 16 LC Duplex Fanout Cable is a high-density multimode fiber breakout cable designed to connect a single 16-fiber MTP interface to 16 individual LC duplex connections. It uses OM4 50/125μm multimode fiber with Corning ClearCurve glass fiber and US Conec MTP female (pinless) connectors for reliable 850nm/1300nm transmission. The ruggedized fanout design supports direct connection between high-density backbone cabling and active network equipment while reducing the need for additional rack space. Factory termination and 100% insertion loss and return loss testing help ensure consistent optical performance, making it suitable for data centers, server rooms, telecommunications networks, and high-density fiber distribution systems.
Specification
| Fiber Count | 16 Fibers |
|---|---|
| Fiber Mode | OM4 Multimode |
| Fiber Size | 50/125μm |
| Fiber Brand | Corning ClearCurve? |

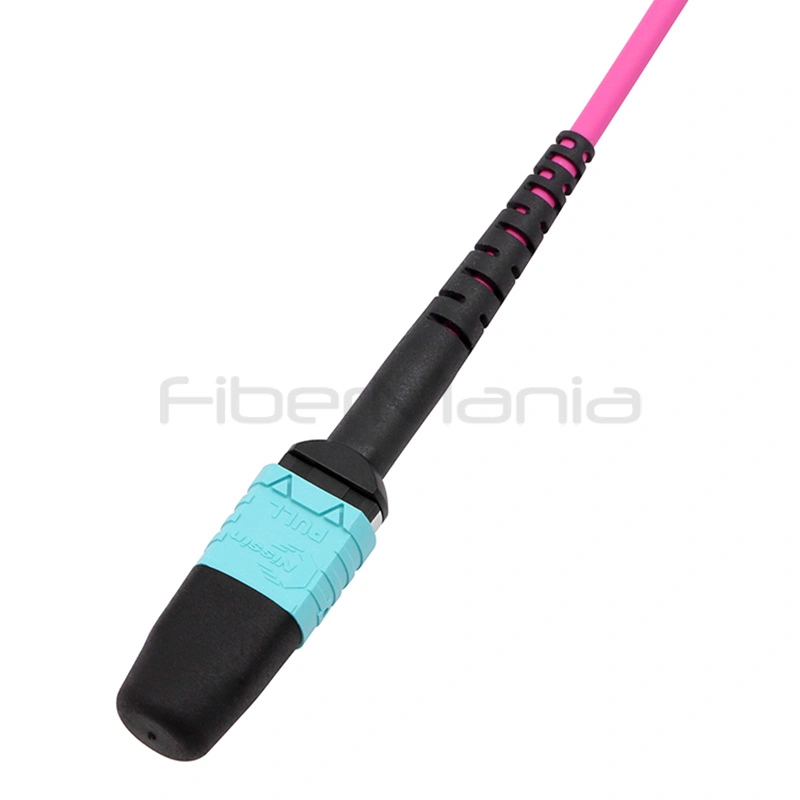

| Connector A | US Conec MTP? Female (Pinless) |

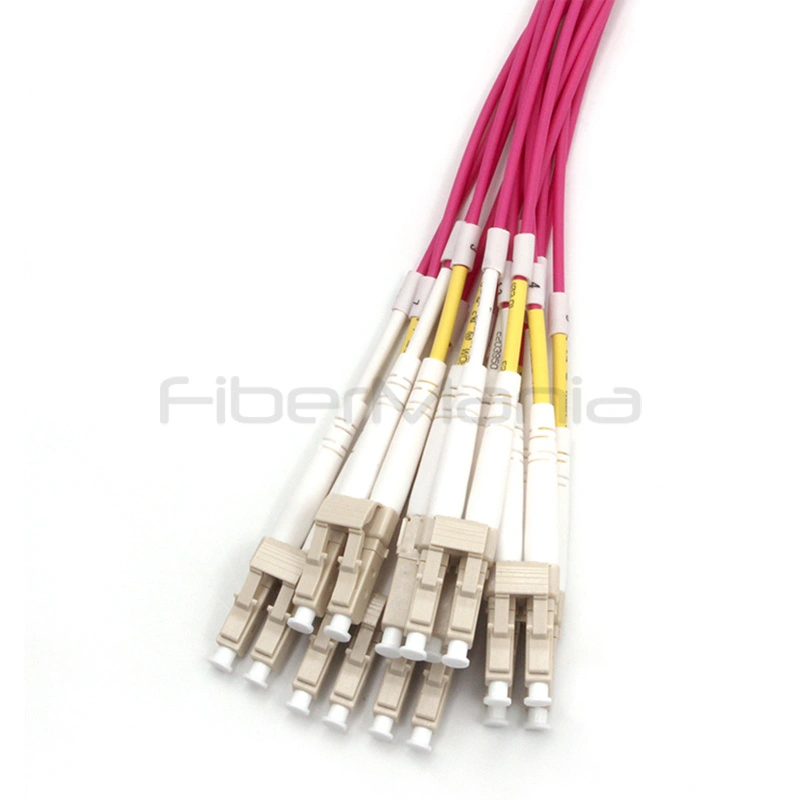

| Connector B | LC UPC Duplex |
| Connection Structure | MTP to LC Fanout |
| Wavelength | 850/1300nm |
| MTP Connector IL | ≤0.35dB Max, 0.15dB Typ. |
| LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB |
| LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 66N |
| Allowed Tensile Strength | <100N |
| Cable Structure | Round |
| Application | Communication |
| Customization | Available |
| Certification | RoHS, CE, ISO9001 |
Features
- 16-fiber OM4 50/125μm multimode fiber construction
- MTP female (pinless) to 16 LC duplex breakout configuration
- US Conec MTP® connector with Corning ClearCurve® glass fiber
- MTP connector insertion loss of ≤0.35dB
- LC connector insertion loss of ≤0.2dB
- Ruggedized fanout design for direct equipment connection
- Factory terminated for fast and reliable deployment
- 100% tested for insertion loss and return loss
- Supports 850nm and 1300nm wavelengths
- RoHS compliant and available for OEM customization
Applications
- Data center fiber backbone connections
- High-density server and switch connections
- Fiber distribution and cross-connect systems
- Telecommunications networks
- Network equipment interconnection
- Rack-to-rack and backbone-to-equipment connections
- OM4 multimode fiber infrastructure
Q&A
What fiber type does this cable use?
This cable uses OM4 50/125μm multimode fiber, optimized for high-speed short-distance optical networking and commonly used with 850nm transceivers.
What connector configuration does it provide?
It has one US Conec MTP female (pinless) connector on one end and 16 LC duplex connectors on the other end, providing 16 individual duplex LC connections.
Why use an MTP-to-LC fanout cable?
The fanout configuration allows a high-density MTP backbone connection to be directly connected to individual LC ports on switches, servers, or other active equipment without requiring a separate breakout module or additional rack space.
Can the cable be customized?
Yes. OEM customization is available for cable length, connector configuration, fiber type, polarity, and other requirements based on the application.
Is every cable tested before shipment?
Yes. Each cable is 100% tested for insertion loss and return loss to help ensure consistent optical performance and reliable deployment.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
