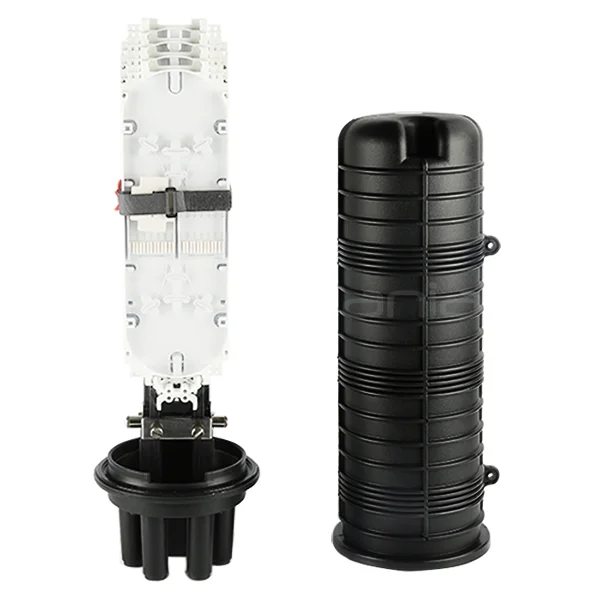

FSC-D4 Dome Fiber Optic Splice Closure: D×H: φ205×540mm
Categories:
Product Highlights:
-
Dome Fiber Optic Splice Closure φ205×540mm with 5 ports and 96-fiber capacity
-
Heat-shrinkable sealing ensures waterproof and dustproof protection
-
Easy re-entry design for maintenance or network expansion
-
FiberMania offers OEM/ODM
Table of Contents
Description
The Dome Fiber Optic Splice Closure φ205×540mm is engineered to provide secure housing for fiber optic splices in both straight-through and branching configurations. Constructed from high-quality engineering plastics, this dome closure offers excellent durability, waterproofing, and dustproofing to protect fibers in challenging environments.
Designed for aerial, underground, pipeline, and hand-hole installations, it accommodates up to 96 fibers with 24 fibers per tray. The heat-shrinkable sealing structure ensures a tight, reliable seal while allowing easy re-entry for maintenance or network upgrades. This closure is ideal for protecting and organizing optical cables in demanding telecommunication, FTTH, or broadband network applications.
Specification
| Shape | Dome |
|---|---|
| Diameter × Height (D×H) | φ205×540 mm |
| Fiber Capacity | Not specified |
| Material | Engineering Plastics |
| Installation Type | Indoor/Outdoor, Aerial, Duct, Wall, Burial |
| Sealing | Heat-shrinkable, Waterproof, Airtight |
| Re-entry | Yes |
| UV/Weather Resistance | Yes |
| Core per Tray | 12 or 24 |
Features
-
Dome closure with robust engineering plastic housing
-
Supports up to 96 fibers, 24 per tray
-
Heat-shrinkable sealing for waterproof and dustproof protection
-
5 cable entry ports with max cable diameter φ38mm
-
Easy re-entry for maintenance and network upgrades
-
Integrated pressure testing valve and grounding device
-
RoHS compliant
Applications
-
Aerial fiber installations
-
Underground duct systems
-
Pipeline and hand-hole mounted fiber networks
-
FTTH, telecommunication networks, and broadband systems
-
Cable repair and network expansions
FAQ
Q: How many fibers can this closure hold?
A: Up to 96 fibers, with 24 fibers per tray.
Q: What type of sealing does it use?
A: Heat-shrinkable sealing for waterproof and dustproof protection.
Q: Can it be used for direct burial applications?
A: Yes, it is suitable for aerial, underground duct, and direct burial installations.
Q: Is it RoHS compliant?
A: Yes, all materials are RoHS compliant.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
