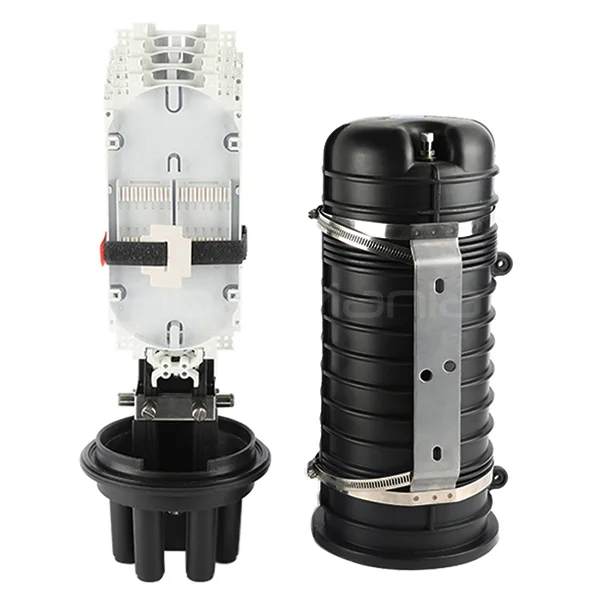

Dome Fiber Optic Splice Closure φ205×460mm, 96 Fiber Capacity

Name: Dome Fiber Optic Splice Closure φ205×460mm | FiberMania
SKU: FSC-D17

P/N: FSC-D17

Categories:

Dome Type

Product Highlights:

FSC-D17 Dome Fiber Optic Splice Closure for straight-through and branching applications
Holds up to 96 fibers with 24 cores per tray, ideal for high-density fiber networks
Heat-shrinkable sealing, pressure testing valve, and grounding device ensure reliable protection
FiberMania provides OEM/ODM customization for port types, fiber capacities, and branded solutions

Description

FiberMania’s FSC-D17 Dome Fiber Optic Splice Closure is engineered from high-quality plastics to ensure long-lasting protection for optical fiber splices. Designed for both straight-through and branching fiber applications, this dome closure is ideal for diverse environments including aerial, underground, duct, and direct burial installations. Its modular design allows for easy entry and management of fiber cables while maintaining optimal sealing and protection against environmental factors.

The closure accommodates up to 96 fibers with a maximum of 24 cores per tray, providing ample capacity for high-density fiber networks. Integrated heat-shrinkable sealing ensures airtight and waterproof performance, while the pressure testing valve and grounding device enhance operational reliability. The FSC-D17 closure is versatile for use in through, branch, or mid-span splice locations, making it suitable for both maintenance and new deployment projects.

Specification

Shape	Dome
Diameter × Height (D×H)	φ205×460 mm
Fiber Capacity	96 fibers
Material	Engineering Plastics
Installation Type	Indoor/Outdoor, Aerial, Duct, Wall, Burial
Sealing	Heat-shrinkable, Waterproof, Airtight
Re-entry	Yes
UV/Weather Resistance	Yes
Core per Tray	12 or 24

Features

High-quality engineering plastic body for durability
Dome design suitable for straight-through and branching applications
Holds up to 96 fibers, 24 cores per tray
5 cable entry/exit ports with max cable diameter φ38mm
Heat-shrinkable sealing for air-tight and waterproof protection
Easy re-entry for maintenance and fiber management
Integrated pressure testing valve and grounding device
Ideal for cable repair and mid-span splicing
RoHS compliant

Applications

Aerial fiber optic cable installations
Underground duct fiber projects
Hand-hole and pipeline splicing
Direct burial fiber optic deployments
Fiber network maintenance and repair
High-density branching or straight-through fiber connections

Q&A

Q: What is the maximum fiber capacity of this closure?
A: The FSC-D17 holds up to 96 fibers, with 24 cores per tray.

Q: Can this closure be used for both branch and through splicing?
A: Yes, it supports straight-through, branch, and mid-span splice configurations.

Q: Is this closure suitable for direct burial installations?
A: Yes, it is designed for aerial, duct, hand-hole, and direct burial applications.

Q: How does FiberMania support customization?
A: OEM/ODM options include custom port types, fiber core capacity, pre-terminated pigtails, and branded packaging.

Q: What protection features does it offer?
A: Heat-shrinkable sealing ensures air- and water-tight integrity, plus an integrated pressure testing valve and grounding device for safety and reliability.
