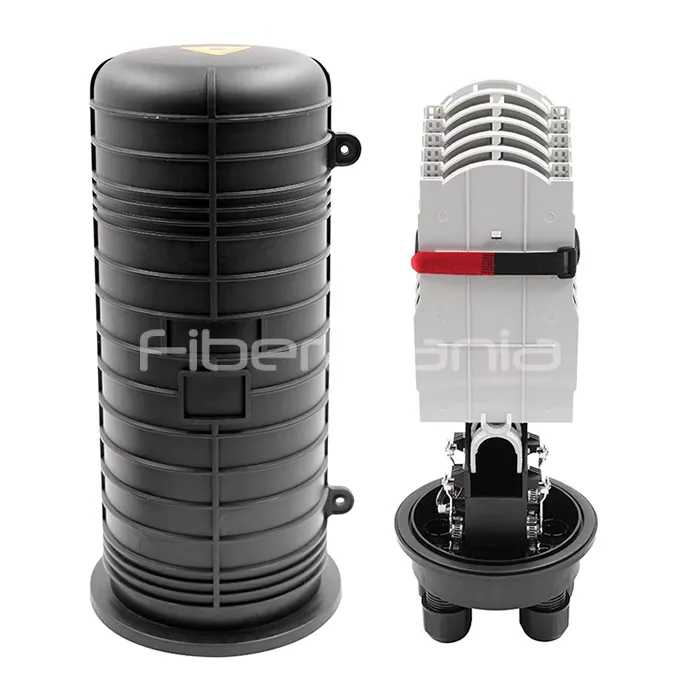

FSC-D22 Dome Mechanical Seal Splitting Fiber Optic Splice Closure: D*H: *235*420mm
Categories:
Product Highlights:
-
Dome fiber optic splice closure with mechanical sealing for reliable outdoor protection.
-
Splitting design allows easy installation and maintenance without disrupting existing fibers.
-
Durable housing (235x420mm) supports high-capacity splicing in harsh environments.
-
FiberMania also offers OEM and customization services to meet project-specific and branding requirements.
Table of Contents
Description
The FSC-D22 Dome Fiber Optic Splice Closure is engineered to provide secure and reliable protection for fiber splicing in outdoor environments. Featuring a dome-style design with a mechanical sealing system, it ensures excellent resistance against water, dust, and environmental stress. This closure is ideal for protecting fiber joints in aerial, duct, and direct burial applications, maintaining long-term network stability and performance.
With a splitting-type structure, the closure allows convenient installation and maintenance without disrupting existing fiber connections. Its spacious internal design supports multiple splice trays, enabling efficient fiber organization and high-capacity splicing. The robust housing ensures strong mechanical protection, making it suitable for harsh deployment conditions.
Measuring approximately 235x420mm, the FSC-D22 offers sufficient capacity for medium to large-scale fiber networks. It is widely used in FTTH, FTTx, and backbone network deployments, providing a dependable solution for fiber splicing, distribution, and protection in outdoor installations.
Specification
| Dimensions (D × H) | φ235 × 420 mm |
|---|---|
| Material | High-quality engineering plastics |
| Cable Ports | 6 ports |
| Cable Diameter | φ8–20 mm |
| Max. Capacity (Bunchy Fiber) | 24–144 fibers |
| Core Capacity per Tray | 23–72 or 24–32 |
| Ribbon Capacity | Up to 432 fibers |
| Sealing Structure | Mechanical sealing |
| Access | Easy to re-enter, cable entry/exit ports |
Features
-
Dome-type splice closure with mechanical sealing system
-
Splitting design for easy installation and maintenance
-
Excellent waterproof, dustproof, and weather-resistant performance
-
Supports multiple splice trays for high-capacity fiber management
-
Durable housing for mechanical strength and long-term reliability
-
Suitable for aerial, duct, and direct burial installations
-
Optimized internal layout for organized fiber routing and protection
Applications
-
FTTH and FTTx outdoor network deployments
-
Aerial, duct, and direct burial fiber installations
-
Backbone and access network fiber splicing
-
Telecommunications and broadband infrastructure
-
Outdoor fiber distribution and protection systems
FAQs
Q1: What is the advantage of the mechanical seal design?
The mechanical seal ensures reliable waterproof and dustproof protection while allowing easy reopening for maintenance.
Q2: Can this closure be used for direct burial?
Yes, it is designed for aerial, duct, and direct burial applications.
Q3: Does the splitting design simplify maintenance?
Yes, the splitting structure allows access to fibers without interrupting existing connections.
Q4: How many fibers can it support?
It supports multiple splice trays, with capacity depending on tray configuration and fiber count.
Q5: Are OEM and customization services available?
Yes, FiberMania provides OEM and customization services, including capacity, structure, and branding options.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
