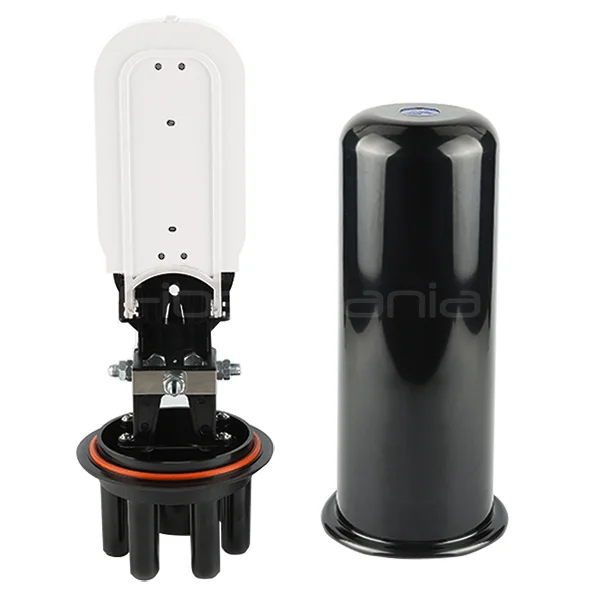

Dome Fiber Optic Splice Closure: D×H: φ190×420mm

Name: Dome Fiber Optic Splice Closure: D×H: | FiberMania
SKU: FSC-D5

P/N: FSC-D5

Categories:

Dome Type

Product Highlights:

Supports up to 96 fibers with flexible tray options
Heat-shrinkable sealing ensures excellent waterproof and airtight performance
Suitable for aerial, duct, wall-mounted, and direct-burial installations
Easy re-entry design for quick maintenance and cable repair

Description

The FSC-D5 Dome Fiber Optic Splice Closure is a compact vertical-style closure engineered to protect optical fiber splices in straight-through and branching configurations. Manufactured using high-performance engineering plastics, it offers durability, impact resistance, and long-term stability in demanding outdoor environments.

With five cable ports and a maximum cable diameter of 25mm, the FSC-D5 provides flexible installation for small and medium fiber distribution points. Its heat-shrinkable sealing structure delivers airtight, waterproof protection, making it suitable for aerial, hand-hole, duct-mounted, wall-mounted, and direct-buried fiber optic networks.

The closure supports up to 96 fibers, with optional 12-fiber or 24-fiber splice trays. Its re-enterable design allows technicians to easily access fibers for maintenance without damaging the enclosure. This makes the FSC-D5 ideal for telecom operators, FTTx rollouts, CATV networks, and emergency cable repairs.

Specification

Dimensions (D×H)	φ190×420mm
Cable Ports	5 ports
Max Cable Diameter	φ25mm
Fiber Capacity	Up to 96 fibers
Core Capacity per Tray	12 or 24 fibers
Material	Engineering plastic (outdoor grade)
Sealing Structure	Heat-shrinkable, waterproof, airtight
Re-entry	Supported
Additional Components	Pressure valve, grounding device
Applications	Aerial, duct, wall-mount, hand-hole, direct burial
Operating Temperature	–40℃ to +65℃
Standards	ISO9001, RoHS
OEM/ODM	Supported

Features

Dimensions: φ190×420mm
Five cable ports for flexible routing
Maximum cable diameter: 25mm
Fiber capacity: up to 96 fibers
Tray options: 12-fiber or 24-fiber splice trays
Heat-shrinkable sealing for waterproof/airtight protection
Integrated pressure testing valve and grounding device
Suitable for through, branch, and mid-span configurations
Easy re-entry for ongoing maintenance
High-strength material ensures impact and environmental resistance
RoHS-compliant materials

Applications

Aerial fiber optic cable installations
Duct-mounted or underground fiber splice management
Hand-hole and wall-mounted fiber distribution points
FTTx, CATV, broadband, and backbone networks
Mid-span access, branching, and cable repair operations

Frequently Asked Questions (FAQs)

Q1: What is the maximum fiber capacity?
Up to 96 fibers depending on splice tray configuration.

Q2: Is this closure suitable for direct-burial installation?
Yes, FSC-D5 is designed for aerial, duct, wall-mounted, hand-hole, and direct-burial applications.

Q3: What is the sealing type?
It uses heat-shrinkable sealing for waterproof and airtight protection.

Q4: Can the closure be reopened after sealing?
Yes, it is designed for easy re-entry without compromising enclosure integrity.

Q5: What is the maximum supported cable diameter?
The closure supports cables up to φ25mm.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
