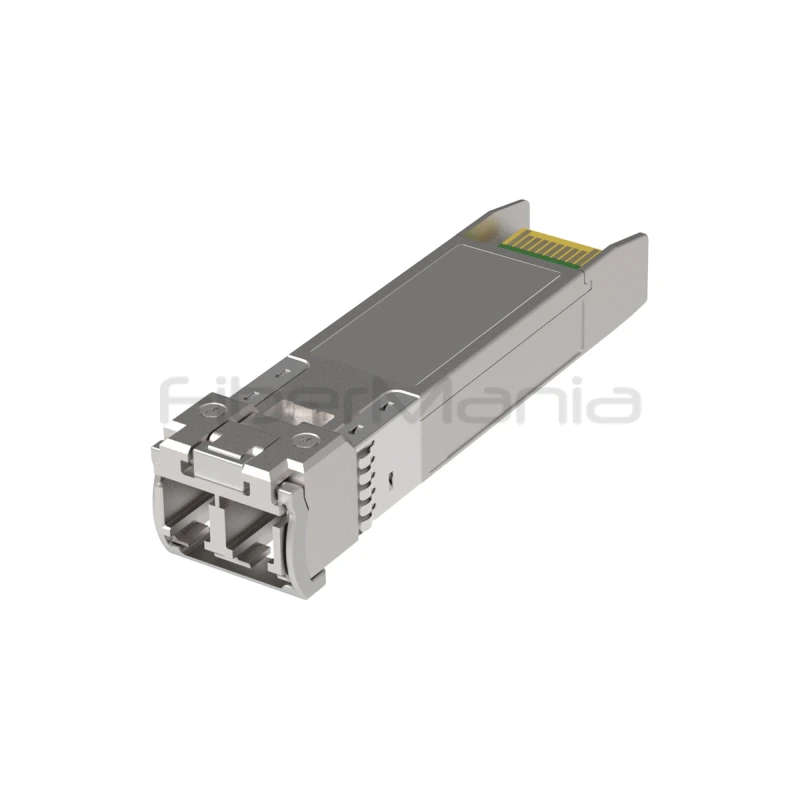

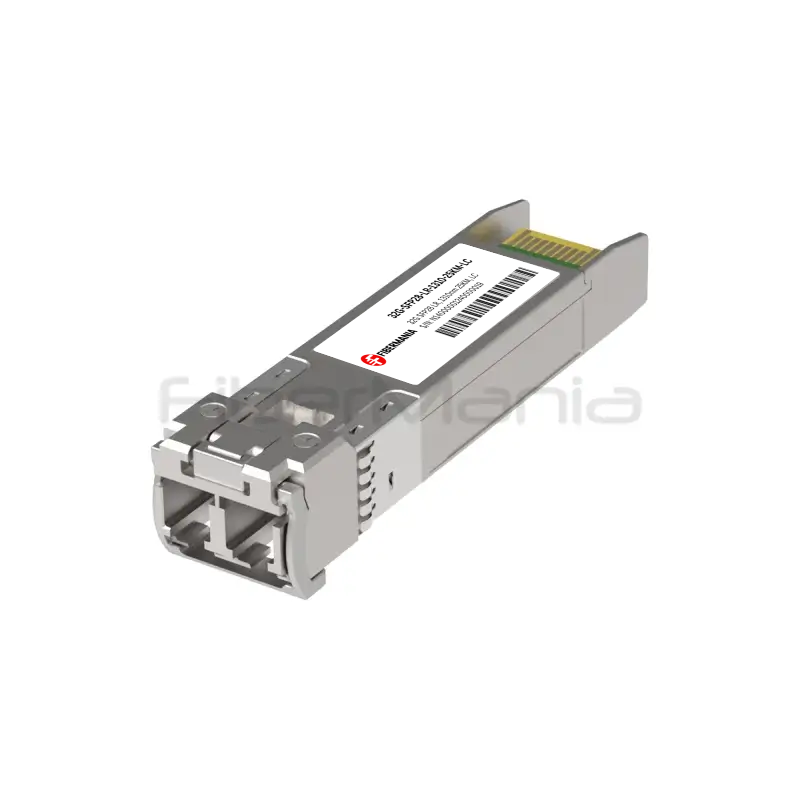

32G SFP28 LR Optical Transceiver, 1310nm, 25KM, Single-Mode Fiber, LC
Categories:
Product Highlights:
-
32G SFP28 LR optical transceiver operating at 1310nm over single-mode fiber
-
Supports data rates up to 32Gbps with a transmission reach of up to 25km
-
Hot-pluggable SFP28 form factor with duplex LC interface ensures easy deployment
-
FiberMania provides OEM, ODM, and private-label services, delivering flexible customization and stable mass production for global network brands
Table of Contents
Description
The 32G SFP28 LR 1310nm 25KM optical transceiver is designed for long-reach, high-speed optical transmission in demanding network environments. Operating over standard single-mode fiber at a wavelength of 1310nm, this module supports data rates of up to 32Gbps, making it well suited for 32G Fibre Channel and high-speed Ethernet applications that require extended transmission distances.
With a maximum reach of up to 25 kilometers, this transceiver provides a reliable solution for metro access networks, distributed data center interconnects, and large-scale enterprise backbone infrastructures. Its enhanced receiver sensitivity ensures stable signal performance over longer distances, even in complex or high-attenuation fiber routes.
Housed in a hot-pluggable SFP28 form factor with a duplex LC optical interface, the module offers seamless compatibility with existing network equipment. Optimized for power efficiency and thermal stability, it is built to support continuous operation in high-bandwidth environments where reliability and scalability are critical.
Specification
| Form Factor | SFP28 |
|---|---|
| Data Rate | Up to 32Gbps |
| Wavelength | 1310nm |
| Transmission Distance | Up to 25km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Laser Type | DFB |
| Receiver Type | PIN photodiode |
| Diagnostic Function | Digital Diagnostic Monitoring |
| Power Supply | Single +3.3V |
| Power Consumption | Low |
| Operating Temperature | 0°C to +70°C |
| Compliance | SFP28 MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 32Gbps
-
1310nm DFB laser and PIN photodiode
-
Transmission distance up to 25km over single-mode fiber
-
Hot-pluggable SFP28 form factor
-
Duplex LC optical interface
-
Enhanced receiver sensitivity for long-reach links
-
Real-time Digital Diagnostic Monitoring function
-
Single +3.3V power supply
-
Low power consumption design
-
RoHS compliant
Applications
-
Metro access and aggregation networks
-
Distributed data center interconnects
-
Enterprise and campus backbone networks
-
Storage area networks requiring extended reach
-
High-speed Fibre Channel optical links
FAQ
What is the main difference between the 10km and 25km versions of this transceiver?
The 25km version features higher optical output power and enhanced receiver sensitivity, allowing it to support significantly longer transmission distances over single-mode fiber.
Is this transceiver compatible with standard SFP28 ports?
Yes, it fully complies with the SFP28 MSA and is compatible with standard SFP28 ports that support 32G data rates.
What type of fiber should be used with this module?
This transceiver is designed for use with standard single-mode fiber (SMF) to achieve optimal long-distance performance.
Does the module support real-time monitoring?
Yes, Digital Diagnostic Monitoring allows real-time access to operating parameters such as temperature, voltage, and optical power levels.
Can FiberMania provide customized or private-label versions of this product?
Yes, FiberMania specializes in OEM, ODM, and private-label manufacturing, offering customization options including labeling, coding, and performance tuning.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
