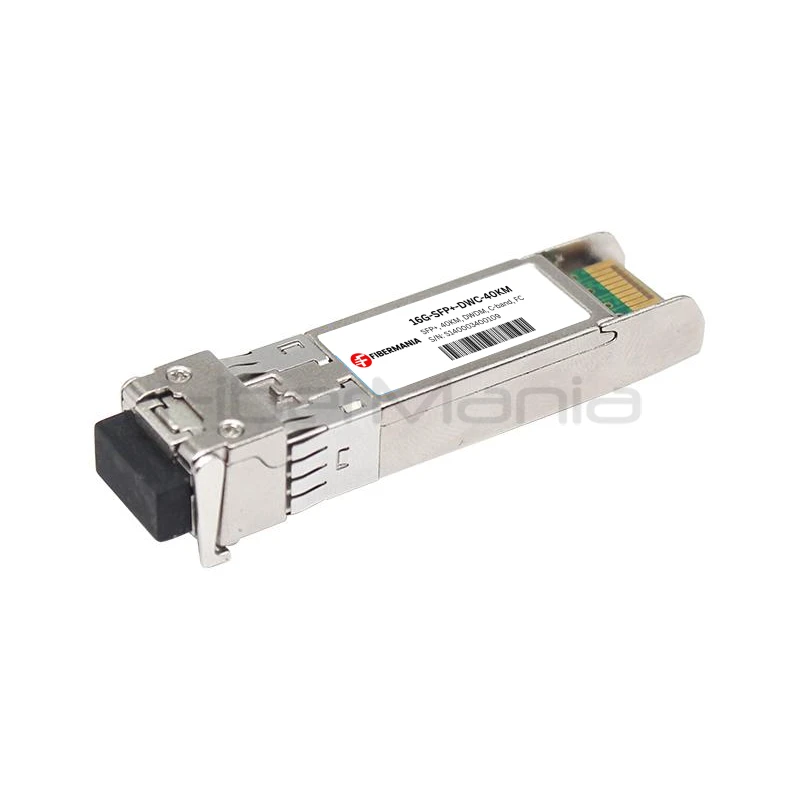

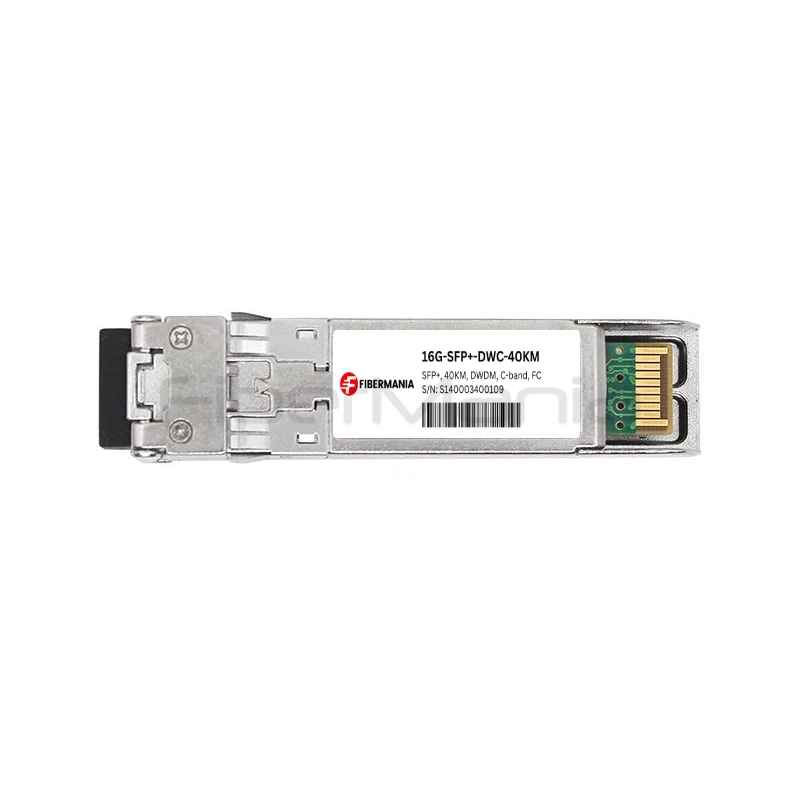

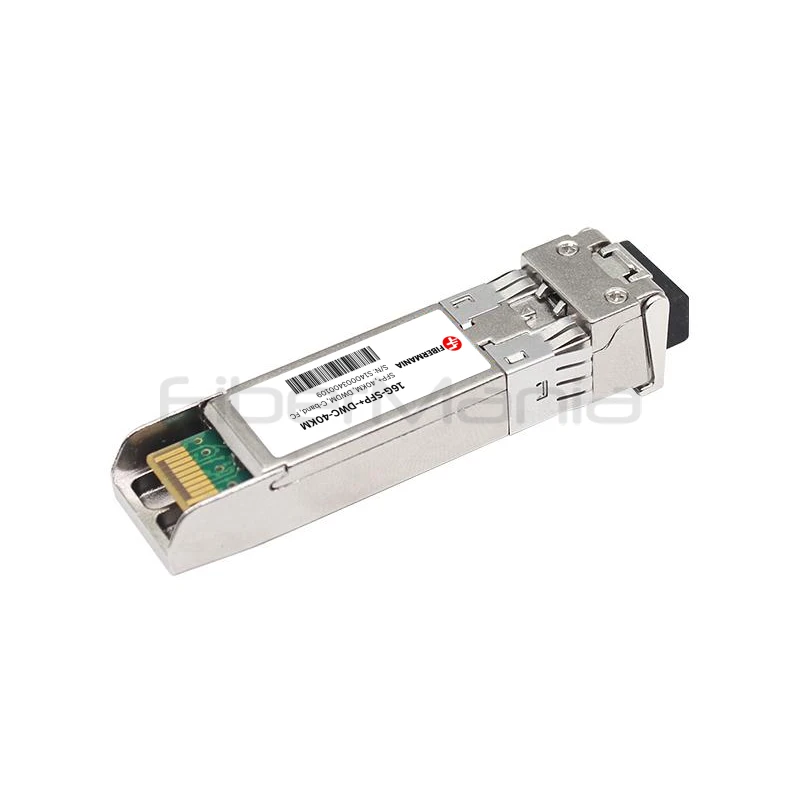

16G Fibre Channel DWDM SFP+ C-Band 40km Optical Transceiver
Categories:
Product Highlights:
- 4.25G/8.5G/16G Fibre Channel support
- C-band DWDM SFP+ transceiver
- Up to 40km over single-mode fiber
- Cooled DWDM EML with PIN/TIA receiver
- Duplex LC optical interface
- SFF-8472-compliant DDM
Table of Contents
Description
The 16G Fibre Channel DWDM SFP+ C-Band Optical Transceiver is a long-reach DWDM module designed for Fibre Channel storage networks and high-speed optical communication applications. Supporting 4.25G, 8.5G, and 16G Fibre Channel data rates with transmission distances of up to 40km over single-mode fiber, it integrates a cooled C-band DWDM EML laser transmitter with a PIN photodiode and TIA receiver for stable wavelength performance and reliable long-distance signal transmission. The compact hot-pluggable SFP+ form factor features a Duplex LC optical interface and single +3.3V power supply for convenient integration into compatible Fibre Channel switches, storage platforms, data center equipment, and optical transport systems. With SFF-8472-compliant Digital Diagnostic Monitoring, the module also provides real-time operating information for network management and maintenance.
Size and Mechanical Spec
Specification
| Form Factor | SFP+ |
|---|---|
| Data Rate | 4.25G / 8.5G / 16Gbps |
| Maximum Distance | Up to 40km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Technology | C-Band DWDM |
| Wavelength | C-Band DWDM Channel |
| Transmitter | Cooled DWDM EML Laser |
| Receiver | PIN Photodiode + Integrated TIA |
| Optical Interface | Duplex LC |
| Power Supply | Single +3.3V |
| Digital Diagnostic Monitoring | Supported |
| Management Standard | SFF-8472 |
| Host Interface | SFP+ |
| Form Factor Type | Hot-Pluggable |
| Supported Protocol | Fibre Channel |
| Fibre Channel Rates | 4.25G / 8.5G / 16G |
| Laser Safety | Class I |
| Compatibility | SFP+ MSA |
| Application | SAN / Data Center / DWDM |
Features
- Supports 4.25G, 8.5G, and 16G Fibre Channel
- Up to 40km transmission over single-mode fiber
- C-band DWDM wavelength operation
- Cooled DWDM EML laser transmitter
- PIN photodiode and integrated TIA receiver
- Hot-pluggable SFP+ form factor
- Duplex LC optical interface
- Single +3.3V power supply
- SFF-8472-compliant Digital Diagnostic Monitoring
- Stable wavelength characteristics for long-distance DWDM links
- Designed for wavelength-specific network deployment
Applications
- Fibre Channel storage networks
- Storage Area Networks (SAN)
- Data center storage infrastructure
- Fibre Channel switches
- DWDM optical networks
- Optical transport systems
- Long-distance data center connectivity
FAQ
What Fibre Channel speeds does this transceiver support?
The module supports 4.25G, 8.5G, and 16G Fibre Channel data rates, providing compatibility with multiple generations of Fibre Channel equipment.
What is the maximum transmission distance?
It supports transmission distances of up to 40km over single-mode fiber, making it suitable for long-reach Fibre Channel and DWDM links.
What type of optical technology does it use?
The module combines a cooled C-band DWDM EML laser transmitter with a PIN photodiode and integrated TIA receiver for stable wavelength performance and reliable signal reception.
Does the module support digital diagnostics?
Yes. It provides SFF-8472-compliant Digital Diagnostic Monitoring, allowing compatible host equipment to access real-time module operating information.
What equipment can use this transceiver?
It is designed for compatible Fibre Channel switches, storage platforms, data center equipment, and optical transport systems equipped with SFP+ ports.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
