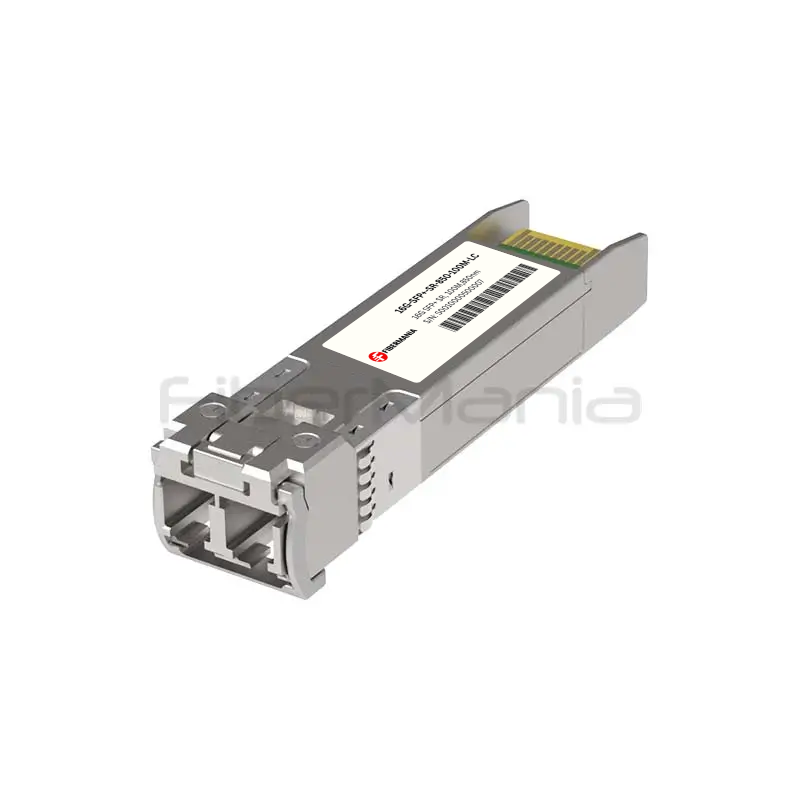

16G SFP+ SR Optical Transceiver, 850nm, 100M, Multi-Mode Fiber, LC
Categories:
Product Highlights:
-
16G SFP+ SR optical transceiver for short-reach multi-mode fiber links
-
Supports up to 14.025Gbps data rate over 100m OM3 fiber
-
Operates at 850nm with VCSEL transmitter and PIN photodiode receiver
-
FiberMania provides OEM, ODM, and private-label services for customization and scalable production
Table of Contents
Description
The 16G SFP+ SR 850nm optical transceiver is a high-speed, short-reach module designed for 16G Fibre Channel and data center networks. Operating at an 850nm wavelength over multi-mode fiber, it delivers data rates up to 14.025Gbps with reliable signal integrity for storage area networks, top-of-rack switches, and high-performance computing clusters.
This transceiver is ideal for high-density, short-distance links where low-latency and energy-efficient performance are required. Its hot-pluggable SFP+ form factor and duplex LC connector enable seamless integration into existing network infrastructure. Digital Diagnostic Monitoring (DDM) provides real-time visibility of temperature, voltage, bias current, and optical power, ensuring network reliability and simplified maintenance.
Designed with compliance to SFP+ MSA and SFF-8472 standards, the module offers low power consumption with a single +3.3V supply, and its operating temperature range of 0°C to 70°C supports standard commercial deployment.
Specification
| Form Factor | SFP+ |
|---|---|
| Data Rate | Up to 14.025Gbps |
| Wavelength | 850nm |
| Transmission Distance | Up to 100m (OM3 MMF) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Connector | Duplex LC |
| Transmitter | VCSEL Laser |
| Receiver | PIN Photodiode |
| Electrical Interface | SFP+ |
| Diagnostic Function | Digital Diagnostic Monitoring (DDM) |
| Power Supply | Single +3.3V |
| Operating Temperature | 0°C ~ +70°C |
| Compliance | SFP+ MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 14.025Gbps
-
850nm VCSEL laser and PIN photodiode
-
Transmission distance up to 100m over OM3 multi-mode fiber
-
Hot-pluggable SFP+ form factor with duplex LC connector
-
Digital Diagnostic Monitoring (DDM)
-
Single +3.3V power supply
-
Operating temperature: 0°C~70°C
-
RoHS compliant
Applications
-
16G Fibre Channel networks
-
Data center short-reach interconnects
-
Top-of-rack switch uplinks
-
High-performance computing clusters
-
Multi-mode fiber short-distance links
FAQ
What is the maximum transmission distance?
Up to 100 meters over OM3 multi-mode fiber.
Which wavelengths does this transceiver operate on?
It operates at 850nm using a VCSEL laser.
Does it support real-time monitoring?
Yes, it features Digital Diagnostic Monitoring (DDM) for temperature, voltage, bias current, and optical power.
Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services including labeling, coding, and performance customization.
What form factor does it use?
Hot-pluggable SFP+ form factor compatible with standard network equipment.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
