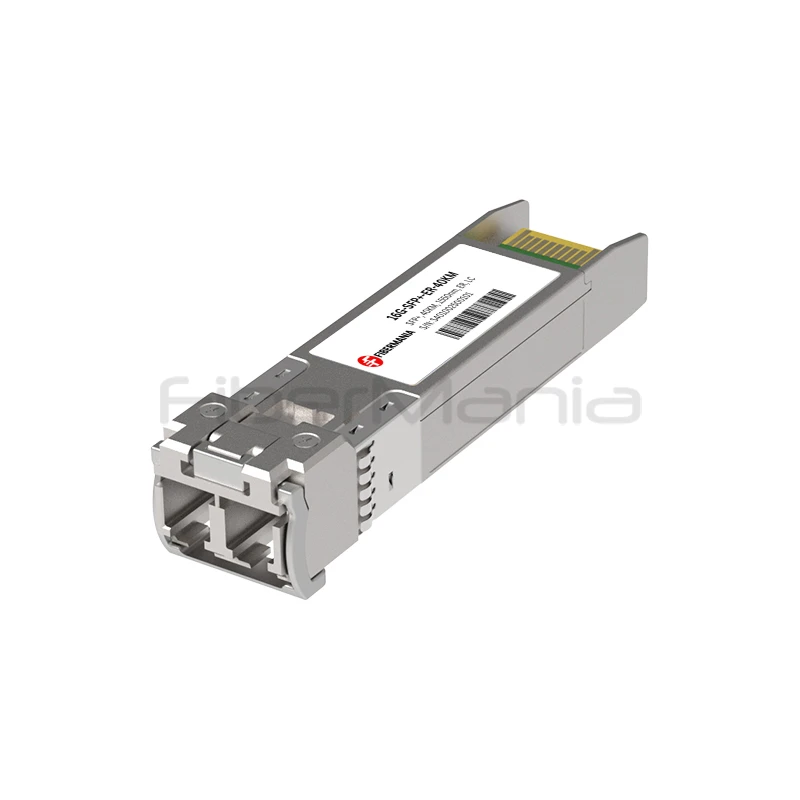

16G Fibre Channel DWDM SFP+ C-Band 40km Optical Transceiver
Categories:
Product Highlights:
- 4.25G/8.5G/16G Fibre Channel support
- C-band DWDM SFP+ transceiver
- Up to 40km over single-mode fiber
- Cooled DWDM EML with PIN/TIA receiver
- Duplex LC interface
Table of Contents
Description
The 16G Fibre Channel DWDM SFP+ C-Band 40km Optical Transceiver is a long-reach optical module designed for Fibre Channel storage networks and high-capacity optical infrastructure. Supporting 4.25G, 8.5G, and 16G Fibre Channel data rates, it provides transmission distances of up to 40km over single-mode fiber. The optical section combines a cooled C-band DWDM EML laser transmitter with a PIN photodiode and integrated TIA receiver to deliver stable wavelength performance and reliable signal reception over extended-distance DWDM links. Built in a hot-pluggable SFP+ form factor, it features a Duplex LC optical interface, single +3.3V power supply, SFF-8472-compliant digital diagnostics, and SFP+ MSA compatibility, making it suitable for Fibre Channel switches, storage systems, data center networks, and long-distance DWDM infrastructure.
Specification
| Form Factor | SFP+ |
|---|---|
| Data Rate | 4.25G / 8.5G / 16Gbps |
| Maximum Distance | Up to 40km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Technology | C-Band DWDM |
| Wavelength | C-Band DWDM |
| Transmitter | Cooled DWDM EML Laser |
| Receiver | PIN Photodiode + TIA |
| Optical Interface | Duplex LC |
| Power Supply | Single +3.3V |
| Management Standard | SFF-8472 |
| Digital Diagnostic Monitoring | Supported |
| Host Interface | SFP+ |
| Form Factor Type | Hot-Pluggable |
| Fibre Channel Support | 4.25G / 8.5G / 16G |
| Compatibility | SFP+ MSA |
| Laser Safety | Class I |
Features
- Supports 4.25G, 8.5G, and 16G Fibre Channel
- Up to 40km transmission over single-mode fiber
- C-band DWDM wavelength operation
- Cooled DWDM EML laser transmitter
- PIN photodiode with integrated TIA receiver
- Hot-pluggable SFP+ form factor
- Duplex LC optical interface
- Single +3.3V power supply
- SFF-8472-compliant Digital Diagnostic Monitoring
- SFP+ MSA compatible
- Class I laser safety
- Designed for extended-distance DWDM links
Applications
- Fibre Channel storage networks
- Storage Area Networks (SAN)
- Data center storage systems
- Fibre Channel switches
- Long-distance DWDM networks
- Optical transport infrastructure
- High-capacity optical communication systems
FAQ
What Fibre Channel data rates does this module support?
The transceiver supports 4.25G, 8.5G, and 16G Fibre Channel data rates, allowing deployment across multiple generations of Fibre Channel equipment.
What is the maximum transmission distance?
It supports transmission distances of up to 40km over single-mode fiber, making it suitable for long-distance storage and DWDM connectivity.
What optical components are used?
The module integrates a cooled C-band DWDM EML laser transmitter with a PIN photodiode and integrated TIA receiver for stable wavelength operation and reliable optical signal reception.
Does it support digital diagnostics?
Yes. The SFF-8472-compliant monitoring interface enables compatible host equipment to access real-time diagnostic information from the transceiver.
Is the module compatible with standard SFP+ equipment?
Yes. It uses a hot-pluggable SFP+ form factor and is compatible with the SFP+ MSA, allowing integration into compatible Fibre Channel switches, storage systems, and optical transport equipment.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
