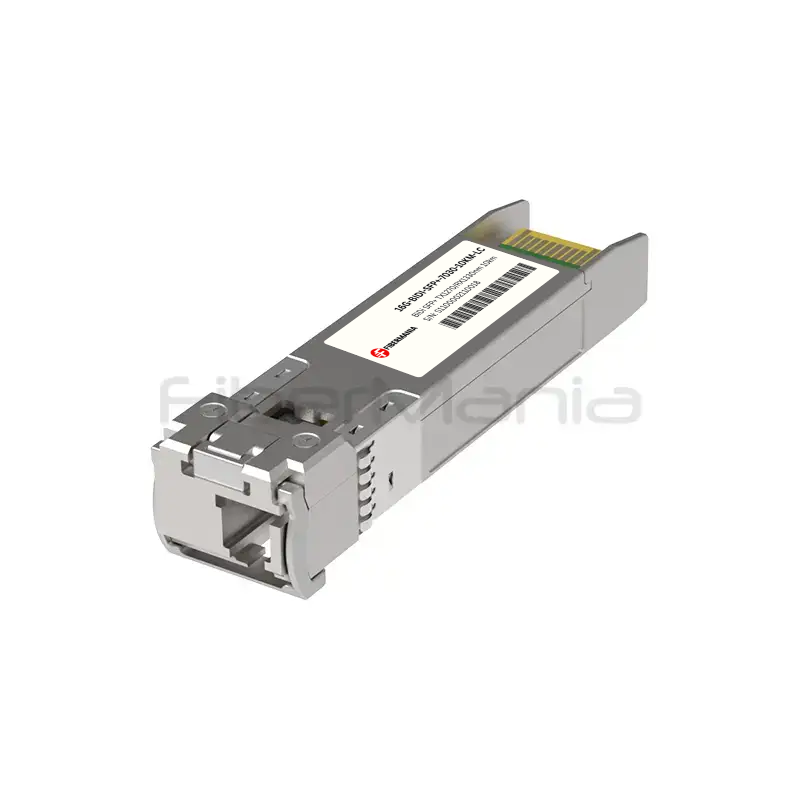

16G BiDi SFP+ TX1270/RX1330nm 10km LC Optical Transceiver
Categories:
Product Highlights:
-
16G BiDi SFP+ optical transceiver for single-fiber bidirectional transmission
-
Supports up to 14.025Gbps data rate with 10km reach on single-mode fiber
-
Operates at TX1270/RX1330nm with DFB transmitter and PIN receiver
-
FiberMania provides OEM, ODM, and private-label services for flexible customization and scalable production
Table of Contents
Description
The 16G BiDi SFP+ optical transceiver is a high-performance, compact module designed for bidirectional data transmission over a single fiber. Operating at 1270nm and 1330nm wavelengths, it supports data rates up to 14.025Gbps with a maximum reach of 10 kilometers on standard G.652 single-mode fiber. This reduces fiber cabling requirements while maintaining high-speed connectivity and low latency.
Ideal for 16G Fibre Channel, metro networks, and enterprise storage networks, the transceiver features a hot-pluggable SFP+ form factor with a single LC connector for seamless integration with existing network infrastructure. Digital Diagnostic Monitoring (DDM) enables real-time tracking of critical parameters, including temperature, voltage, bias current, and optical power, ensuring reliable network operation.
Designed for commercial deployment, the module consumes low power with a single +3.3V supply and complies with SFP+ MSA, SFF-8472, and RoHS standards, offering both performance and regulatory compliance.
Specification
| Form Factor | SFP+ |
|---|---|
| Data Rate | Up to 14.025Gbps |
| Wavelength | TX1270nm / RX1330nm (Bidirectional) |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (G.652 SMF) |
| Connector | Single LC |
| Transmitter | DFB Laser |
| Receiver | PIN Photodiode |
| Electrical Interface | SFP+ |
| Diagnostic Function | Digital Diagnostic Monitoring (DDM) |
| Power Supply | Single +3.3V |
| Operating Temperature | 0°C ~ 70°C |
| Compliance | SFP+ MSA, SFF-8472, RoHS |
Features
-
Supports data rates up to 14.025Gbps
-
Bidirectional wavelengths: TX1270nm / RX1330nm
-
Transmission distance up to 10km on G.652 single-mode fiber
-
DFB laser transmitter and PIN photodiode receiver
-
Hot-pluggable SFP+ form factor with single LC connector
-
Digital Diagnostic Monitoring (DDM)
-
Single +3.3V power supply
-
Operating temperature: 0°C~70°C
-
RoHS compliant
Applications
-
16G Fibre Channel networks
-
Metro and access network links
-
Enterprise storage networks
-
Data center interconnects
-
High-density single-fiber bidirectional deployment
FAQ
What does BiDi mean in this transceiver?
BiDi (bidirectional) allows simultaneous transmission and reception over a single fiber using two different wavelengths.
What wavelengths are used?
TX: 1270nm, RX: 1330nm, through a single LC fiber connection.
What is the maximum transmission distance?
Up to 10km on standard G.652 single-mode fiber.
Does it support real-time monitoring?
Yes, Digital Diagnostic Monitoring (DDM) allows tracking of temperature, voltage, bias current, and optical power.
Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services with custom labeling, wavelength assignment, and performance tuning.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
