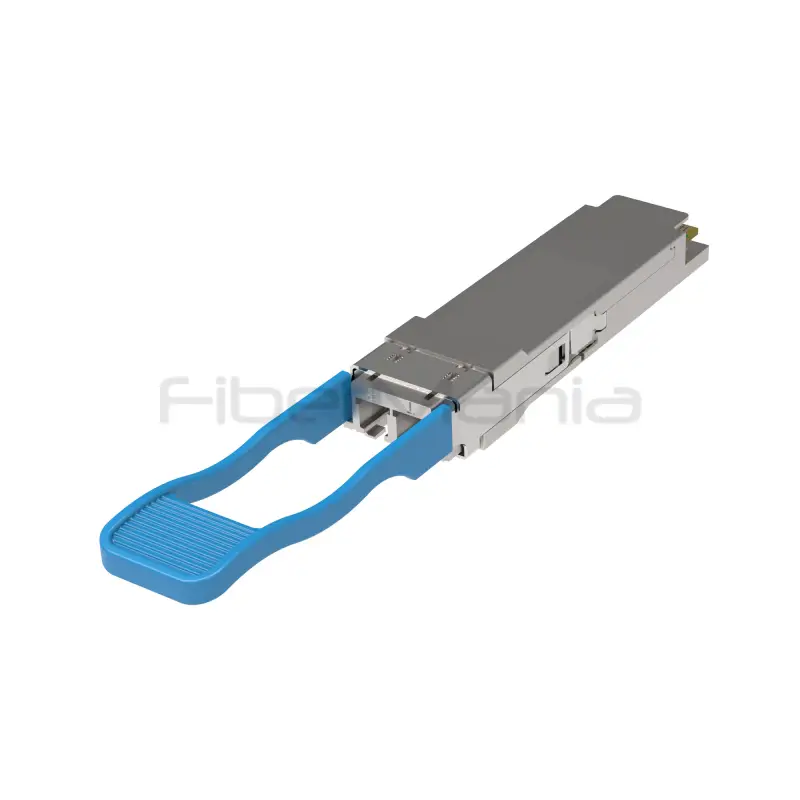

100G QSFP28 LR1 Single Lambda 20KM LC optical transceiver

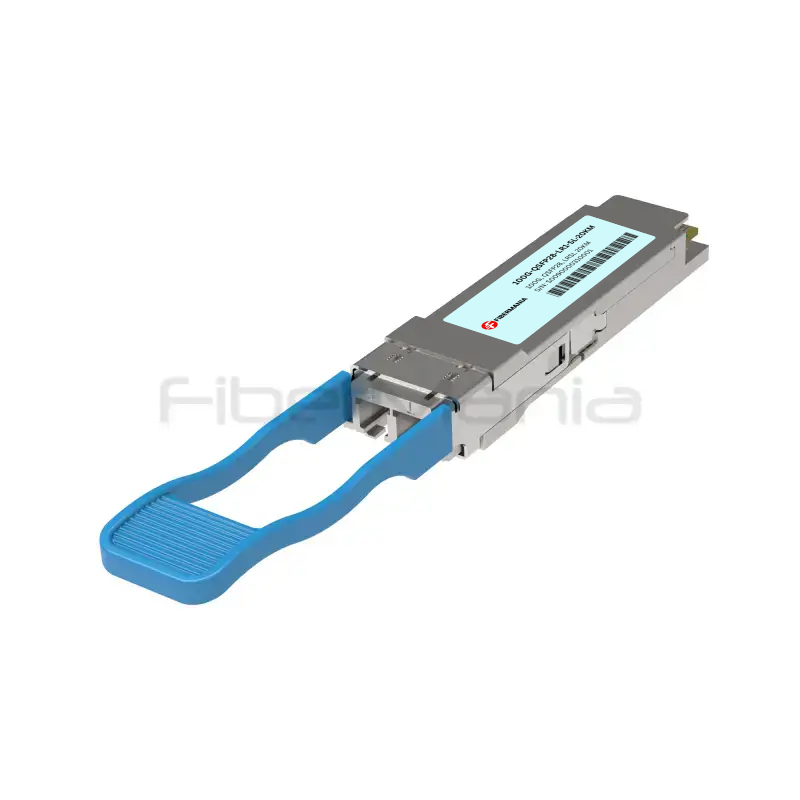

100G QSFP28 LR1 Single Lambda Optical Transceiver, 20KM, Single-Mode Fiber, LC

Name: 100G QSFP28 LR1 Single Lambda Optical Transceiver
SKU: 100G-QSFP28-LR1-SL-20KM-LC

P/N: 100G-QSFP28-LR1-SL-20KM-LC

Categories:

100G QSFP28

Product Highlights:

100G QSFP28 LR1 Single Lambda optical transceiver for long-reach single-mode fiber networks
Supports 100Gbps aggregate data rate over 20km SMF with KP4 FEC
Hot-swappable QSFP28 form factor with duplex LC and DDM monitoring
FiberMania provides OEM, ODM, and private-label services for flexible customization and scalable production

Description

The 100G QSFP28 LR1 Single Lambda 20KM LC optical transceiver is a high-performance, long-reach module designed for data center interconnects (DCI), 5G transport networks, and enterprise backbone networks. Utilizing a single-lambda architecture compliant with IEEE 802.3cu, this module simplifies network deployment by reducing fiber count compared to LR4 solutions while providing reliable 20km transmission over standard single-mode fiber (SMF).

This hot-swappable QSFP28 module integrates an EML laser transmitter with a PIN photodiode receiver, delivering 100Gbps aggregate bandwidth via 4×25.78Gb/s channels with NRZ electrical signaling. It supports KP4 FEC inside the module to ensure error-free transmission over extended distances. Digital Diagnostic Monitoring (DDM) enables real-time tracking of critical parameters such as Tx/Rx power, bias current, and temperature, ensuring stable network performance and proactive management.

Powered by a single +3.3V supply, this transceiver operates efficiently in commercial (0–70°C) and industrial (-30–85°C) environments. Fully compliant with QSFP28 MSA, 100G Lambda MSA LR1 specifications, and SFF-8636 & SFF-8679 standards, it provides a robust, energy-efficient, and future-proof solution for high-speed optical links.

Specification

Form Factor	QSFP28
Data Rate	100Gbps aggregate (4×25.78Gb/s)
Lane Signaling Rate	106.25Gb/s PAM4
Wavelength	Single Lambda, IEEE 802.3cu
Transmission Distance	Up to 20km on SMF with KP4 FEC
Fiber Type	Single-Mode Fiber (OS2)
Connector	Duplex LC
Transmitter	EML Laser
Receiver	PIN Photodiode
Electrical Interface	NRZ (CAUI-4)
Diagnostic Function	Digital Diagnostic Monitoring (DDM)
Power Supply	Single +3.3V
Power Consumption	Commercial <3.5W, Industrial <4.5W
Operating Temperature	Commercial 0–70°C, Industrial -30–85°C
Compliance	IEEE 802.3cu, SFF-8636, SFF-8679, 100G Lambda MSA, RoHS

Features

Supports 100Gbps aggregate data rate via 4×25.78Gb/s channels
Lane signaling rate 106.25Gb/s with PAM4
Single Lambda transmission over single-mode fiber up to 20km
EML laser transmitter and PIN photodiode receiver
NRZ electrical interface (CAUI-4) with KP4 FEC support
Hot-swappable QSFP28 form factor with duplex LC connector
Integrated Digital Diagnostic Monitoring (DDM) via I2C interface
Single +3.3V power supply
Power consumption: Commercial <3.5W, Industrial <4.5W
Operating temperature: Commercial 0–70°C, Industrial -30–85°C
Compliance: IEEE 802.3cu, SFF-8636, SFF-8679, 100G Lambda MSA, EU RoHS

Applications

Data center interconnects (DCI)
5G transport and fronthaul networks
Enterprise and metro backbone networks
Cloud and hyperscale networking environments
Migration from 25G/40G infrastructure to 100G

FAQ

What is the maximum reach of this transceiver?
Up to 20km over standard single-mode fiber with KP4 FEC support.

Which architecture does this module use?
Single Lambda, reducing fiber complexity compared to LR4 modules.

Does it support real-time monitoring?
Yes, integrated Digital Diagnostic Monitoring (DDM) tracks Tx/Rx power, temperature, and bias current.

What form factor is this transceiver?
Hot-swappable QSFP28 with duplex LC connector.

Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services including custom labeling, wavelength selection, and performance tuning.
