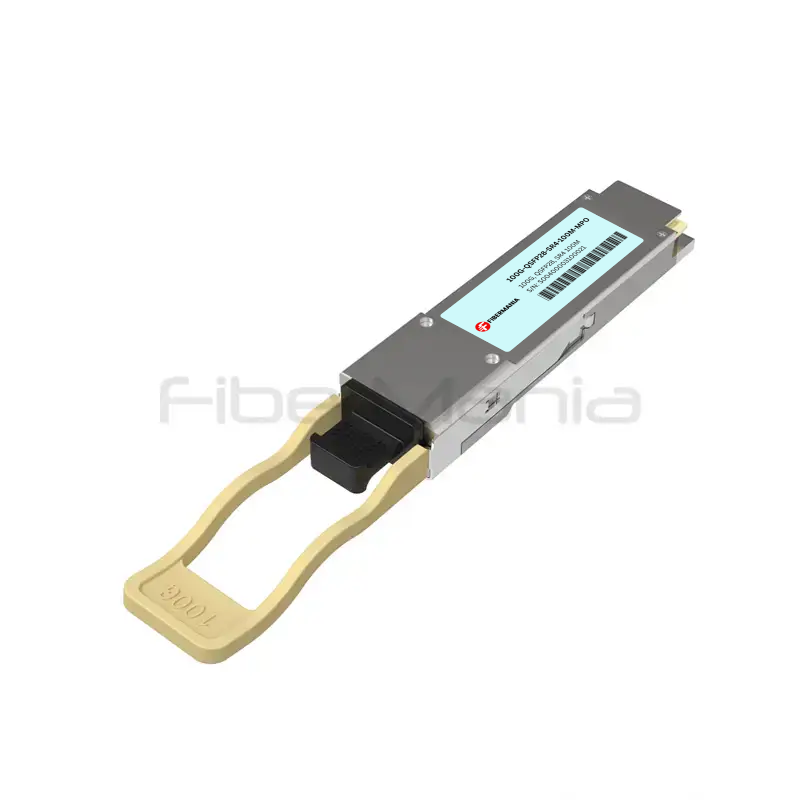

100G QSFP28 SR4 100M MPO multimode optical transceiver

100G QSFP28 SR4 Optical Transceiver, 100M, MMF, MPO

Name: 100G QSFP28 SR4 Optical Transceiver 100M MMF | FiberMania
SKU: 100G-QSFP28-SR4-100M-MPO

P/N: 100G-QSFP28-SR4-100M-MPO

Categories:

100G QSFP28

Product Highlights:

100G QSFP28 SR4 MPO transceiver for short-reach multimode fiber networks
Supports 100Gbps aggregate data rate with 4-channel 850nm VCSEL and PIN array
Hot-pluggable QSFP28 with MPO12 connector and DDM monitoring
FiberMania provides OEM, ODM, and private-label services for flexible customization and scalable production

Description

The 100G QSFP28 SR4 100M MPO optical transceiver is a high-performance, short-reach module designed for hyperscale data centers, HPC clusters, and 5G infrastructure. Engineered for 100G Ethernet applications over OM4 multimode fiber, this transceiver ensures low-latency, reliable connectivity up to 100 meters.

This hot-pluggable QSFP28 module features a 4-channel 850nm VCSEL array and a PIN photodiode array, providing aggregate data rates of up to 100Gbps. Integrated CDR circuits and optional CDR bypass maintain signal integrity across all channels, while Digital Diagnostic Monitoring (DDM) allows real-time tracking of temperature, voltage, and optical power, ensuring network reliability under heavy traffic conditions.

With a compact MPO12 receptacle and power consumption under 2W, the transceiver is energy-efficient, easy to deploy, and fully compliant with QSFP28 MSA, IEEE 802.3bm, and other relevant standards. It supports 100GBASE-SR4, 40GBASE-SR4, InfiniBand 4x FDR/EDR, OTN OTU4, and 128GFC/4x32GFC applications, making it a versatile choice for modern high-density optical networks.

Specification

Form Factor	QSFP28
Data Rate	100Gbps aggregate (25.78125–28.05Gbps per channel)
Wavelength	850nm
Transmission Distance	Up to 100m on OM4 MMF
Fiber Type	Multimode Fiber (OM4)
Connector	MPO12
Channels	4 full-duplex
Transmitter	VCSEL array
Receiver	PIN photodiode array
CDR	Internal with optional bypass
Diagnostic Function	Digital Diagnostic Monitoring (DDM)
Power Supply	Single 3.3V
Power Consumption	<2W
Operating Temperature	Standard 0–70°C, Extended -40–85°C
Compliance	QSFP28 MSA, IEEE 802.3bm, RoHS

Features

Hot-pluggable QSFP28 form factor
Four full-duplex channels with 850nm VCSEL array and PIN photodiode array
Aggregate 100Gbps data rate (25.78125Gbps or 28.05Gbps per channel)
Supports 100GBASE-SR4, 40GBASE-SR4, InfiniBand 4x FDR/EDR, OTN OTU4, 128GFC/4x32GFC
Internal CDR circuits on both TX and RX channels with CDR bypass option
MPO12 connector receptacle
Digital Diagnostic Monitoring (DDM) for real-time monitoring
Power consumption <2W
Operating temperature: Standard 0–70°C, Extended -40–85°C
RoHS compliant (lead-free)

Applications

Hyperscale data centers
High-performance computing (HPC) clusters
5G infrastructure and fronthaul networks
Cloud and enterprise network interconnects
Short-reach 100G Ethernet deployments

FAQ

What is the maximum transmission distance?
Up to 100 meters on OM4 multimode fiber.

Which connector type does it use?
MPO12 receptacle for parallel multimode fiber connectivity.

Does it support real-time monitoring?
Yes, integrated Digital Diagnostic Monitoring (DDM) tracks temperature, voltage, and optical power.

What are the supported standards?
100GBASE-SR4, 40GBASE-SR4, InfiniBand 4x FDR/EDR, OTN OTU4, and 128GFC/4x32GFC.

Can FiberMania provide OEM or private-label versions?
Yes, FiberMania offers OEM, ODM, and private-label services, including custom labeling and performance tuning.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
