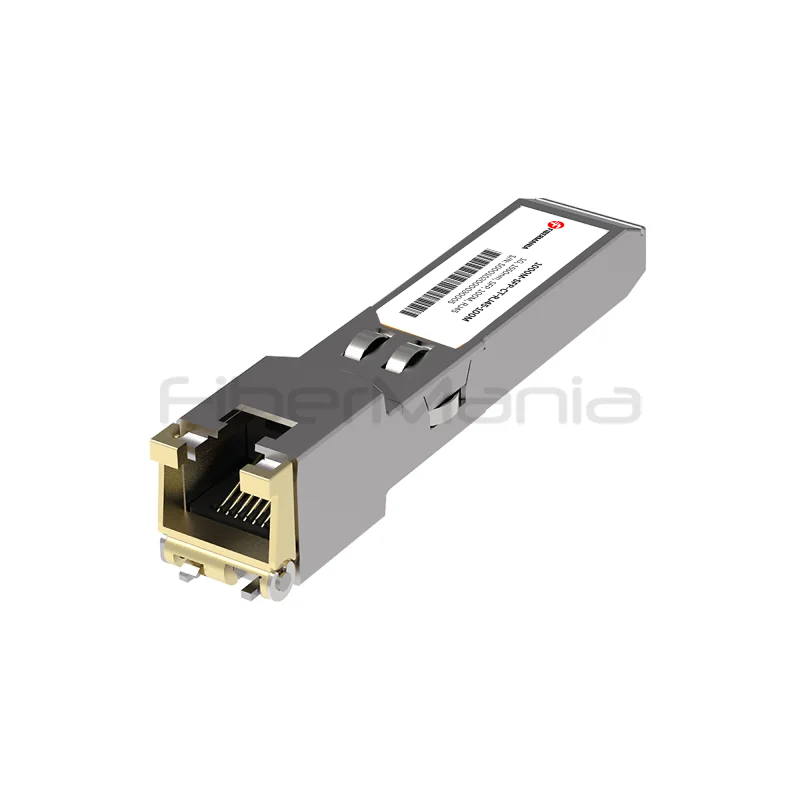

10/100/1000M SFP Copper RJ45 100m Marvell Ethernet Transceiver
Categories:
Product Highlights:
- Triple-speed 10/100/1000M Ethernet support
- RJ45 copper interface with 100m reach
- Marvell-based platform compatibility
- SGMII host interface in a hot-pluggable SFP form factor
- 1.05W typical power dissipation
- Commercial and extended-temperature options
Table of Contents
Description
The 10/100/1000M SFP Copper-T RJ45 Ethernet Transceiver is a triple-speed copper module designed to provide flexible Ethernet connectivity over standard twisted-pair cabling. Supporting 10Mbps, 100Mbps, and 1000Mbps Ethernet with transmission distances of up to 100m, it enables compatible switches, routers, servers, and other SFP-equipped network devices to connect directly to existing copper infrastructure. The module features a compact hot-pluggable SFP form factor and SGMII host interface for convenient integration, while its fully metallic enclosure helps provide electromagnetic shielding. With typical power dissipation of 1.05W, TX Disable, RX Loss of Signal, and a 2-wire serial management interface, it offers efficient operation and practical host-side monitoring for LAN, access, and high-density networking applications. Commercial and extended-temperature versions are available for different deployment environments.
Specification
| Form Factor | Hot-Pluggable SFP |
|---|---|
| Data Rate | 10/100/1000Mbps |
| Maximum Transmission Distance | Up to 100m |
| Ethernet Standard | 1000BASE-T / 10/100/1000M Ethernet |
| Host Interface | SGMII |
| Transmission Medium | Copper Ethernet Cable |
| Connector | RJ45 |
| Bidirectional Data Rate | Up to 1.25Gb/s |
| TX Disable | Supported |
| RX Loss of Signal | Supported |
| Enclosure | Fully Metallic |
| Power Dissipation | 1.05W Typical |
| Management Interface | 2-Wire Serial Bus |
| Temperature Options | Commercial / Extended |
| Host Form Factor | SFP |
| Transmission Type | Copper Ethernet |
| Platform Compatibility | Marvell |
Features
- Supports 10/100/1000Mbps Ethernet
- Up to 1.25Gb/s bidirectional data link
- Up to 100m transmission distance
- Standard RJ45 copper interface
- Hot-pluggable SFP form factor
- SGMII host interface
- Marvell-based platform compatibility
- Fully metallic enclosure for EMI shielding
- TX Disable and RX Loss of Signal functions
- 2-wire serial management interface
- Typical power dissipation of 1.05W
- Commercial and extended-temperature versions available
Applications
- Fast Ethernet and Gigabit Ethernet networks
- Enterprise LAN infrastructure
- Ethernet switches and routers
- Server and network equipment connectivity
- Copper access networks
- High-density network deployments
- Equipment-specific networking projects
FAQ
What Ethernet speeds does this module support?
The transceiver supports 10Mbps, 100Mbps, and 1000Mbps Ethernet, providing flexible connectivity across different network generations.
What is the maximum transmission distance?
It supports copper Ethernet transmission distances of up to 100m through a standard RJ45 interface and compatible twisted-pair cabling.
Is this module compatible with Marvell-based equipment?
The module is designed for Marvell-based platform compatibility and can be suitable for equipment-specific networking projects. Host equipment compatibility should be verified before deployment.
What temperature versions are available?
Commercial and extended-temperature versions are available, allowing the module to be selected according to the operating environment and deployment requirements.
Does the module support digital management?
Yes. It provides a 2-wire serial management interface along with TX Disable and RX Loss of Signal functions for host-side control and monitoring.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
