10/100M SFP Copper RJ45 100m Fast Ethernet Transceiver
Categories:
Product Highlights:
- 10/100Mbps Fast Ethernet over copper
- Standard SFP form factor with RJ45 interface
- Up to 100m transmission distance
- SGMII host interface
- Low typical power dissipation of 1.05W
Table of Contents
Description

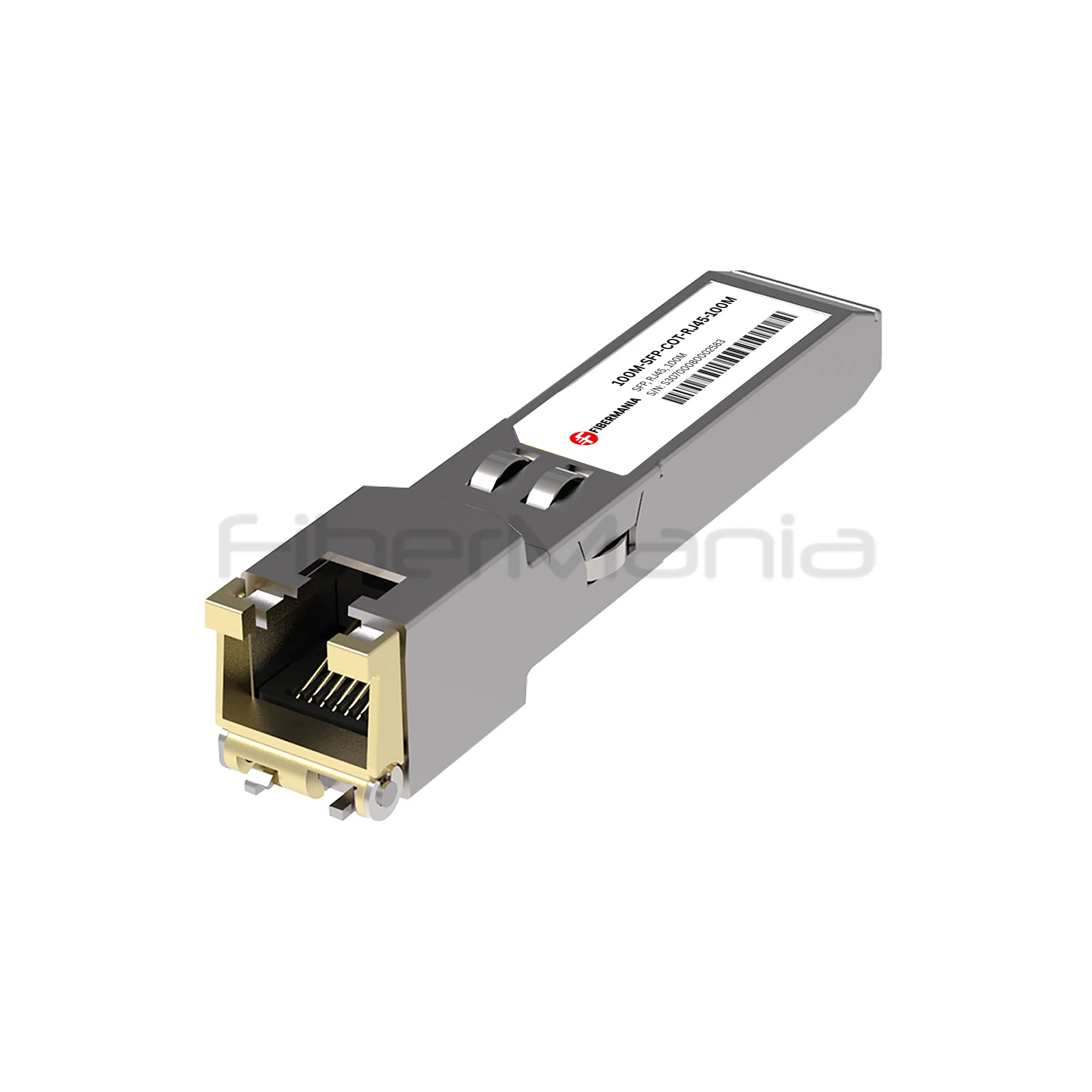

The 10/100M SFP Copper-T RJ45 Transceiver is a compact copper SFP module designed to provide 10Mbps and 100Mbps Fast Ethernet connectivity through a standard RJ45 interface. Supporting transmission distances of up to 100m over twisted-pair Ethernet cabling, it allows SFP-equipped switches, routers, media converters, and other network devices to connect directly to copper-based network infrastructure. Featuring an SGMII host interface and hot-pluggable SFP form factor, the module enables flexible deployment and easy installation in available SFP slots. Its fully metallic enclosure provides mechanical protection and electromagnetic shielding, while TX Disable, RX Loss of Signal, and a 2-wire serial management interface support host-side control and monitoring. With low power consumption and a 0 to +70°C commercial operating temperature range, it is suitable for Fast Ethernet access, enterprise networks, and structured cabling applications.
Specification
| Form Factor | Hot-Pluggable SFP |
|---|---|
| Data Rate | 10/100Mbps |
| Maximum Transmission Distance | Up to 100m |
| Ethernet Standard | 10/100BASE-T |
| Host Interface | SGMII |
| Transmission Medium | Copper Ethernet Cable |
| Connector | RJ45 |
| TX Disable | Supported |
| RX Loss of Signal | Supported |
| Enclosure | Fully Metallic |
| Power Dissipation | 1.05W Typical |
| Management Interface | 2-Wire Serial Bus |
| Operating Temperature | 0 to +70°C |
| Host Form Factor | SFP |
| Transmission Type | Copper Ethernet |
Features
- Supports 10/100Mbps Fast Ethernet
- Standard SFP hot-pluggable form factor
- RJ45 copper interface
- Up to 100m transmission distance
- SGMII host interface
- Fully metallic enclosure for protection and EMI shielding
- TX Disable and RX Loss of Signal functions
- 2-wire serial management interface
- Typical power dissipation of 1.05W
- Commercial operating temperature of 0 to +70°C
Applications
- Fast Ethernet access networks
- Enterprise Ethernet networks
- Copper-to-SFP network connections
- Ethernet switches and routers
- SFP-based media converters
- Structured cabling systems
- Network equipment upgrades
FAQ
What Ethernet speeds does this SFP module support?
The module supports both 10Mbps and 100Mbps Ethernet, making it suitable for Fast Ethernet network environments.
What is the maximum transmission distance?
It supports transmission distances of up to 100m over standard twisted-pair copper Ethernet cabling.
What connector does the module use?
The module uses a standard RJ45 copper Ethernet interface, allowing direct connection to compatible twisted-pair network cables.
Can it be installed in any SFP slot?
The module is designed for SFP slots with a compatible SGMII host interface. Host equipment should support copper SFP modules and the required 10/100Mbps Ethernet operation.
What is the operating temperature range?
The module is designed for commercial-temperature operation from 0 to +70°C, making it suitable for standard indoor networking environments.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
