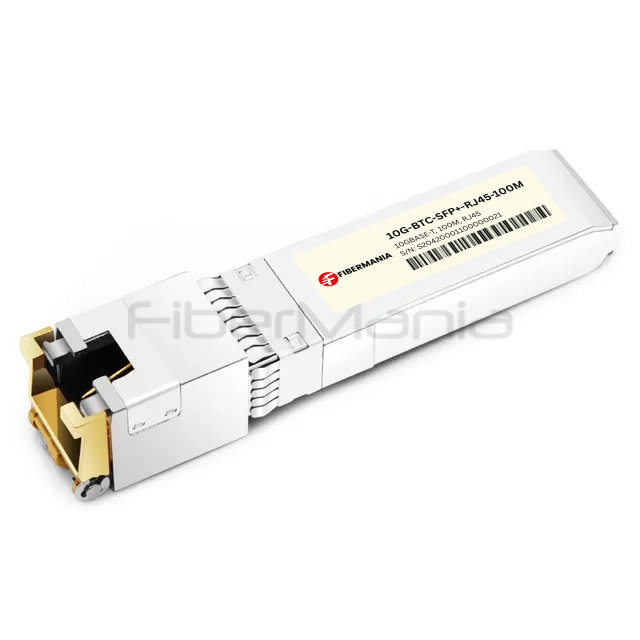

10G SFP+ RJ45 100m Multi-Rate Copper Transceiver
Categories:
Product Highlights:
- Supports 10G/5G/2.5G/1G Ethernet speeds
- Up to 100m transmission over Cat6A/Cat7
- SFP+ hot-pluggable design with RJ45 interface
- Multi-rate support for flexible network connectivity
- Fully metallic enclosure
- Ideal for data centers and enterprise Ethernet networks
Table of Contents
Description
The 10G SFP+ to RJ45 100m Multi-Rate Copper Transceiver is a flexible Ethernet copper module designed to provide high-speed connectivity through a standard SFP+ host interface. Supporting 10Gbps, 5Gbps, 2.5Gbps, and 1000Mbps Ethernet rates, it enables compatible network equipment to connect to different copper network environments without changing the SFP+ port architecture. The RJ45 electrical interface supports transmission distances of up to 100m over suitable Cat6A or Cat7 cabling. With a hot-pluggable SFP+ form factor and fully metallic enclosure, the module is suitable for data center networks, server-to-switch connections, switch-to-switch links, and enterprise Ethernet deployments requiring flexible multi-rate copper connectivity.
Specification
| Form Factor | SFP+ |
|---|---|
| Data Rate | 10Gbps / 5Gbps / 2.5Gbps / 1000Mbps |
| Maximum Transmission Distance | Up to 100m |
| Ethernet Standard | 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T |
| Host Interface | SFP+ |
| Electrical Interface | RJ45 |
| Connector | RJ45 |
| Transmission Medium | Copper Ethernet Cable |
| Recommended Cabling | Cat6A or Cat7 |
| Enclosure | Fully Metallic |
| Power Dissipation | Typical 2.5W |
| Power Supply | Single +3.3V |
| Form Factor Type | Hot-Pluggable |
| DDM / DOM | Not Supported |
| Operating Temperature | 0 to +70°C |
| Application | Multi-Rate Ethernet / 10GBase-T |
| Compatibility | SFP+ MSA-Compatible Platforms |
| OEM / Customization | Available |
Features
- Supports 10Gbps, 5Gbps, 2.5Gbps, and 1000Mbps Ethernet
- Standard SFP+ hot-pluggable form factor
- RJ45 copper electrical interface
- Transmission distance up to 100m
- Supports Cat6A and Cat7 copper cabling
- Multi-rate connectivity for flexible network deployment
- Fully metallic enclosure
- Compatible with supported SFP+ network equipment
- Enables copper connectivity through SFP+ ports
Applications
- Data center Ethernet networks
- Server-to-switch connections
- Switch-to-switch interconnections
- Enterprise Ethernet networks
- Multi-rate copper network upgrades
- Extending copper links from SFP+ equipment
- Network environments with mixed Ethernet speeds
FAQs
What Ethernet speeds does this transceiver support?
The module supports 10Gbps, 5Gbps, 2.5Gbps, and 1000Mbps Ethernet speeds, providing flexible connectivity for multi-rate network environments.
What is the maximum transmission distance?
It supports transmission distances of up to 100m when used with suitable Cat6A or Cat7 copper Ethernet cabling.
Can it connect directly to a standard RJ45 network?
Yes. The module converts the compatible SFP+ host interface to a standard RJ45 copper connection, allowing direct connection to compatible Ethernet cabling and equipment.
What type of equipment can use this module?
It is designed for compatible SFP+ switches, routers, servers, and other networking devices that support the required multi-rate copper transceiver specifications.
Why choose a multi-rate SFP+ copper transceiver?
A multi-rate module allows compatible SFP+ equipment to support different Ethernet speeds while retaining the same physical SFP+ port architecture, providing greater flexibility when connecting to existing copper infrastructure.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
