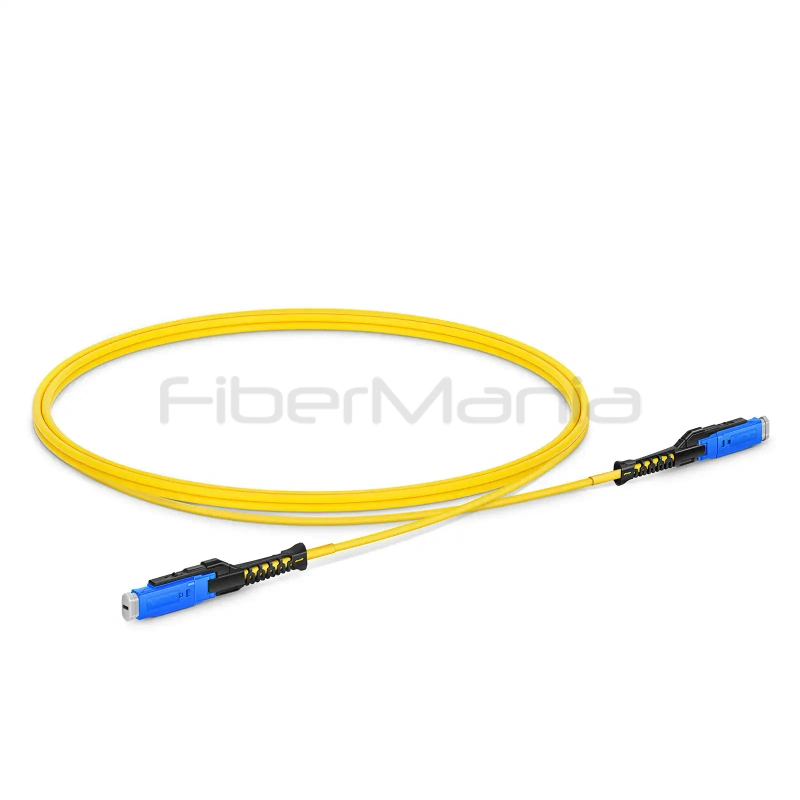

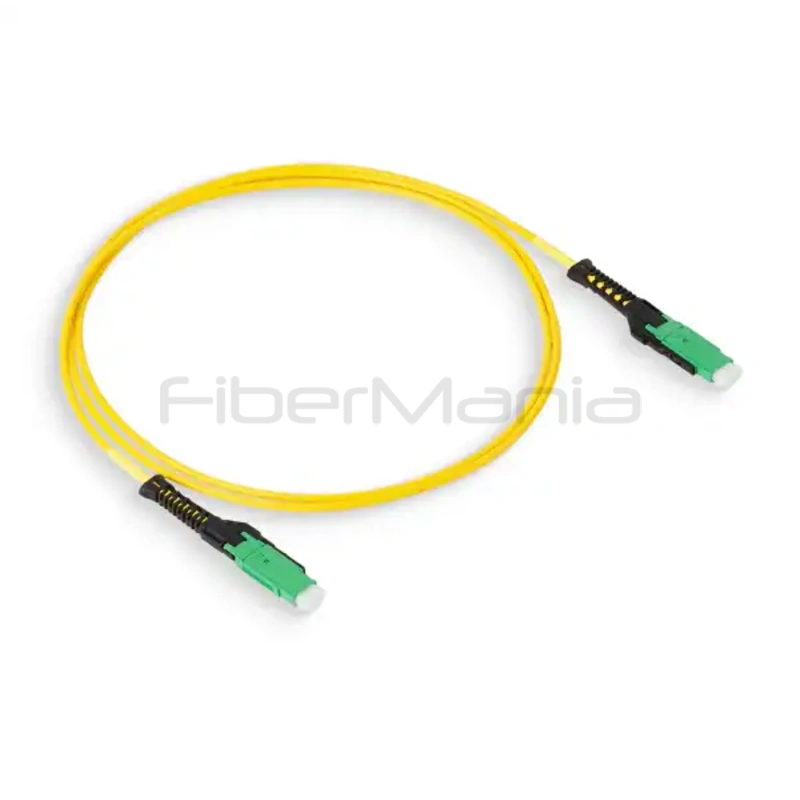

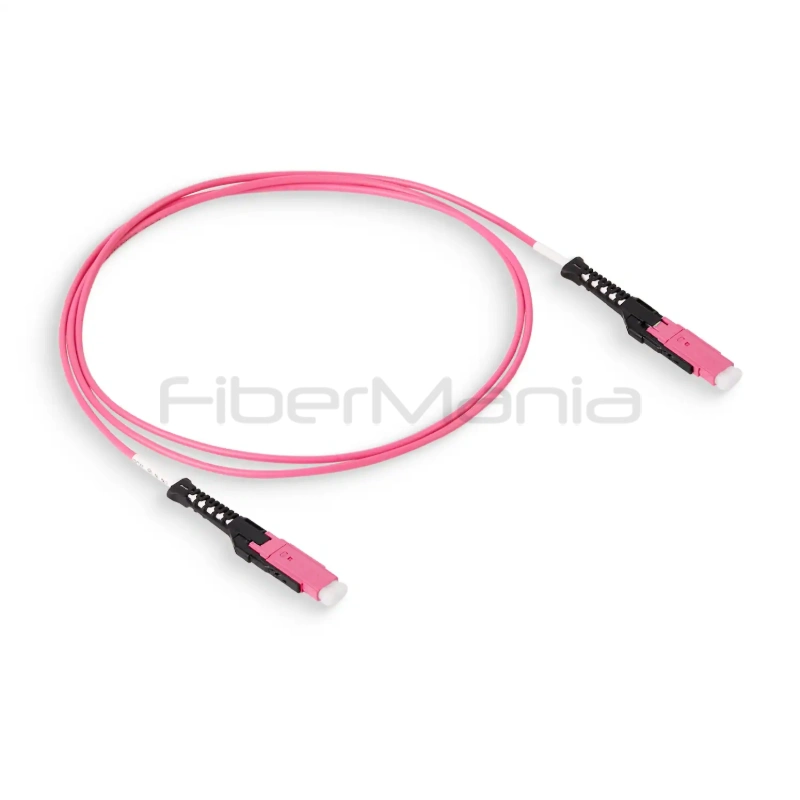

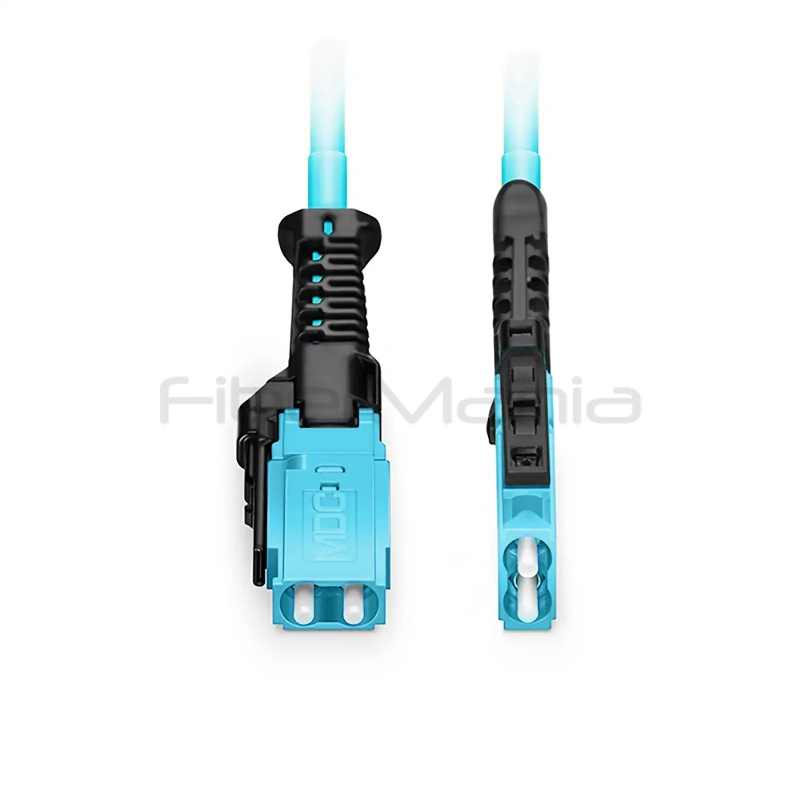

MDC to MDC Duplex Fiber Optic Patch Cord, 2-Fiber OS2 OM3 OM4 OM5, 2.0mm Push-Pull Uniboot Cable
Categories:
Product Highlights:
- Ultra-compact MDC to MDC duplex connectivity
- 2-fiber OS2, OM3, OM4, or OM5 options
- Push-pull connector design
- 2.0mm cable for high-density routing
- ≤0.25dB typical insertion loss
- ≥50dB UPC return loss
- Reversible A-B polarity
Table of Contents
Description
This MDC to MDC duplex fiber optic patch cord provides compact two-fiber connectivity for high-density data center and high-speed network environments. Available with OS2 single mode or OM3, OM4, and OM5 multimode fiber, it uses compact MDC duplex connectors with a push-pull design to simplify installation and access in dense cabling systems. The 2.0mm cable supports LSZH, OFNR, or OFNP jacket options, while UPC polishing provides ≤0.25dB typical insertion loss and ≥50dB return loss. Reversible A-B polarity and customizable cable length, jacket, and polarity options make the patch cord suitable for 400G/800G connectivity, MDC patch panels, cassettes, transceivers, and high-density fiber interconnections.
Specification
| Connector Type | MDC to MDC Duplex |
|---|---|
| Connector Configuration | Duplex, 2-Fiber |
| Fiber Type | OS2 / OM3 / OM4 / OM5 |
| Fiber Mode | Singlemode / Multimode |
| Polish Type | UPC |
| Connector Design | Push-Pull |
| Cable Diameter | 2.0mm |
| Insertion Loss | ≤0.25dB Typical |
| Return Loss | ≥50dB (UPC) |
| Cable Jacket | LSZH / OFNR / OFNP |
| Polarity | Reversible A-B |
| Cable Length | Customizable |
| Operating Temperature | −20°C to +70°C |
| Standards | IEC 61754-36 / TIA-604-38 / RoHS |
Features
- MDC to MDC duplex configuration
- 2-fiber connectivity
- Supports OS2, OM3, OM4, and OM5 fiber
- Single mode and multimode options
- Compact MDC connector design for high-density cabling
- Push-pull connector for convenient installation and removal
- 2.0mm cable diameter
- ≤0.25dB typical insertion loss
- ≥50dB UPC return loss
- Reversible A-B polarity
- LSZH, OFNR, and OFNP jacket options
- Customizable cable length, jacket, and polarity
- Designed for 400G/800G high-density networks
Applications
- 400G/800G data center connectivity
- High-density switch and server interconnections
- MDC patch panels and cassettes
- MDC-compatible optical transceivers
- Spine-leaf data center networks
- High-density rack-level fiber cabling
- Fiber cross-connects and patching
- Single mode and multimode network deployments
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
