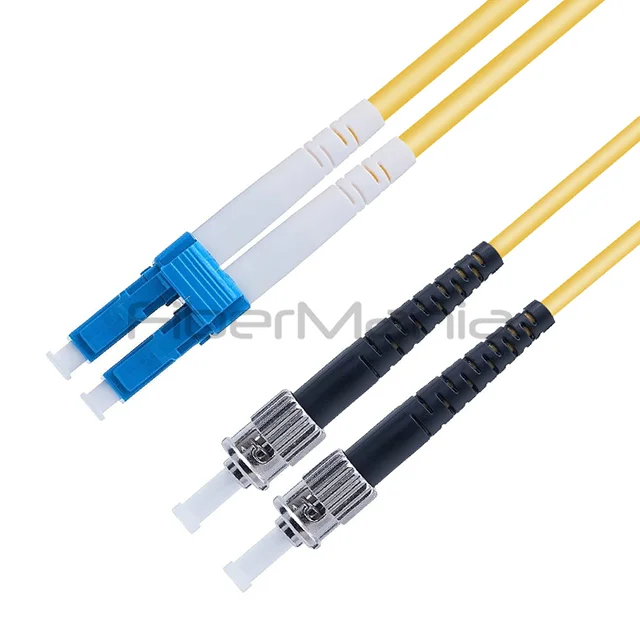

ST/UPC–LC/UPC Duplex 9/125 OS2 Single Mode Fiber Optic Patch Cable
Categories:
Product Highlights:
-
High-performance ST/UPC–LC/UPC duplex OS2 single-mode patch cable designed for long-distance, low-loss data transmission.
-
Precision-polished connectors ensure stable insertion loss and excellent return loss.
-
Built with OFNR flame-retardant jacket and 3.0mm durable construction for reliable operation in professional network environments.
Table of Contents
Description
The ST/UPC–LC/UPC Duplex OS2 Single Mode Fiber Optic Patch Cable is engineered for high-speed, long-distance optical transmission across telecom networks, data centers, and enterprise-level applications. Featuring a 9/125µm OS2 single-mode fiber core, this patch cord delivers ultra-low attenuation and stable performance in demanding installations.
Equipped with ST/UPC and LC/UPC connectors, the cable ensures precise optical alignment and minimal signal loss. The 3.0mm OFNR jacket enhances flame resistance and mechanical protection, making it suitable for indoor riser-rated environments. This hybrid duplex configuration is ideal for connecting equipment with different interface types while maintaining consistent optical quality.
Specification
| Connector Type | ST/UPC to LC/UPC (duplex) |
|---|---|
| Connector Polish | UPC (Ultra Physical Contact) |
| Ferrule Material | Zirconia Ceramic |
| Fiber Type | OS2 Single Mode, 9/125 µm |
| Fiber Standard | ITU-T G.652.D (OS2 low-loss fiber) |
| Cable Structure | Duplex (two fibers) |
| Jacket Outer Diameter | 3.0 mm |
| Jacket Material | OFNR (standard)；Optional: OFNP / LSZH |
| Jacket Color | Yellow |
| Cable Length | Standard or custom (e.g., 1m / 2m / 3m / custom) |
| Insertion Loss (ST end) | ≤ 0.20–0.30 dB typical；≤ 0.75 dB max |
| Insertion Loss (LC end) | ≤ 0.10–0.30 dB typical；≤ 0.50 dB max |
| Return Loss (UPC) | ≥ 50 dB typical |
| Attenuation @1310 nm | ≤ 0.4 dB/km (fiber spec) |
| Attenuation @1550 nm | ≤ 0.3 dB/km (fiber spec) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Features:
-
ST/UPC to LC/UPC connector configuration
-
OS2 9/125µm single-mode fiber for long-distance transmission
-
Duplex structure for bidirectional signal paths
-
3.0mm OFNR jacket; OFNP and LSZH options available
-
Available in standard and custom lengths
-
UL & RoHS-compliant materials
Applications:
-
Telecom rooms and enterprise networks
-
Data centers and backbone cabling
-
FTTH/FTTX deployments
-
Device-to-device or equipment cross-connection with hybrid interfaces
Fiber Optic Cables Comparison Guide Table
| OM5 | Fiber Count | Connector A | Connector B | Fiber Mode | Features | Diameter |
| MJFC-M5023RLM01 | 2 | MTRJ PC | FC UPC | OM5 | OFNR | 3.0mm |
| LCST-M5023RLM01 | 2 | LC UPC | ST UPC | OM5 | OFNR | 3.0mm |
| SCST-M1023ROR01 | 2 | SC UPC | ST UPC | OM1 | OFNR | 3.0mm |
| LCTLCT-SM024RBK01 | 2 | LC/UPC Duplex | LC/UPC Duplex | OS2 | OFNR, Pull-tab, Uniboot | 4.8mm |
| MJLC-SM023RYL01 | 2 | MTRJ/PC Duplex | LC/UPC Duplex | OS2 | OFNR | 3.0mm |
| LCTLCT-M3022RAQ01 | 2 | LC UPC | LC UPC | OM3 | OFNR, Uniboot, Pull Tab | 2.0mm |
| MJMJ-M4023RMG01 | 2 | MTRJ PC | MTRJ PC | OM4 | OFNR | 3.0mm |
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
