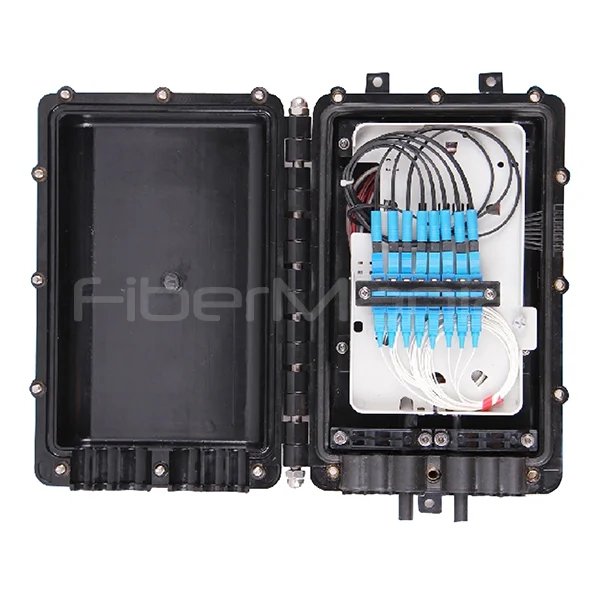

Inline Fiber Optic Splitter Closure With 1:8 PLC Splitter 295×202×81mm

Name: Inline Fiber Optic Splitter Closure With 1:8 | FiberMania
SKU: FSC-H11

P/N: FSC-H11

Categories:

Inline Type

Product Highlights:

Inline fiber optic splitter closure with pre-installed 1:8 PLC splitter
Spacious internal design with slide-in-lock splice trays for easy fiber management
Supports up to 16 drop cable inputs/outputs and multiple mounting options
FiberMania provides OEM/ODM services including custom configurations, labeling, and packaging for tailored optical solutions

Description

FiberMania’s Inline Fiber Optic Splitter Closure is designed for efficient optical fiber distribution in FTTH networks and other high-density applications. This closure comes pre-installed with a 1:8 blockless PLC splitter, providing a compact and reliable solution for splitting and managing optical signals. Its spacious internal layout allows for easy fiber winding and storage, while the modular Fiber Optic Splice Trays (FOSTs) are designed with a slide-in-lock mechanism and a 90° opening angle, ensuring convenient access without requiring special tools.

Engineered to meet international standards for fiber bend radius, the closure supports both straight-through and branching configurations. It can accommodate up to 16 drop cable inputs/outputs and is compatible with various mounting options including aerial, underground, wall, hand hole, and duct installations. Its robust design ensures optimal performance in demanding environments while simplifying fiber management and expansion.

Specification

Shape	Inline
Dimensions (L×W×H)	295×202×81 mm
Fiber Capacity	1×8 PLC Splitter
Material	Engineering Plastics
Installation Type	Indoor/Outdoor, Aerial, Duct, Wall, Burial
Sealing	Heat-shrinkable, Waterproof, Airtight
Re-entry	Yes
UV/Weather Resistance	Yes
Core per Tray	12 or 24

Features

Advanced internal structure design for optimized fiber management
Spacious closure for fiber winding and storage
Slide-in-lock Fiber Optic Splice Trays with 90° opening
Maintains standard curvature diameter to protect fibers
Easy expansion or reduction of FOSTs without special tools
Supports straight-through and branching configurations
Up to 16 drop cable input/output elements (2×3 selectable)
Pre-installed with 1:8 blockless PLC splitter
Lay adapters suitable for FTTH applications

Applications

FTTH optical fiber distribution
Bunchy fiber networks
Aerial, underground, wall-mount, hand hole, and duct installations
High-density fiber branching and signal splitting

Q&A

Q: What type of splitter is installed in the closure?
A: It comes with one 1:8 blockless PLC splitter pre-installed.

Q: How many drop cable connections does it support?
A: Up to 16 drop cable input/output elements are supported (2×3 selectable).

Q: Can it be used in aerial and underground installations?
A: Yes, the closure supports aerial, wall, hand hole, duct, and underground mounting.

Q: Are the Fiber Optic Splice Trays easy to access?
A: Yes, the FOSTs feature a slide-in-lock design with a 90° opening angle, no special tools required.

Q: Does FiberMania offer customization for these closures?
A: Yes, OEM/ODM services include custom splitter ratios, tray configurations, and pre-terminated pigtails.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
