FTTH Fiber Optic Splice Closure 208 Mechanical Seal 96 Core Aerial Wall Pole Mount

Name: FTTH Fiber Optic Splice Closure 208 Mechanical
SKU: MST208

P/N: MST208

Categories:

Inline Type

Product Highlights:

The 208 fiber optic splice closure provides a reliable splicing and distribution point for FTTH feeder and drop cables.
Designed with a buckle clamp structure and mechanical sealing system, it ensures fast installation and strong environmental protection.
With a capacity of up to 96 fibers and IP68 waterproof rating, it is ideal for outdoor fiber network deployments.
FiberMania offers OEM manufacturing, flexible customization, and private label production for fiber optic closures.

Description

The 208 FTTH Fiber Optic Splice Closure is designed as a reliable termination and protection point between feeder cables and drop cables in fiber-to-the-home (FTTH) access networks. It provides a secure environment for fiber splicing, cable branching, and network distribution while protecting fiber connections from environmental factors such as moisture, dust, and mechanical stress.

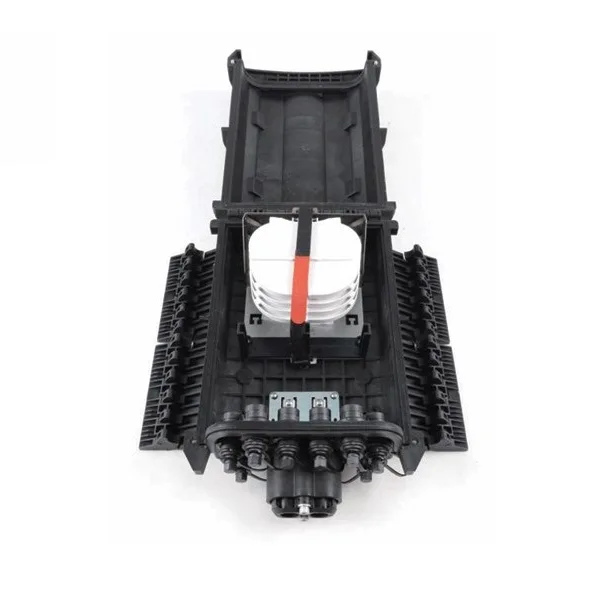

This closure adopts a compact structure with a flip-over cover and buckle clamp locking mechanism, allowing installers to quickly open and close the enclosure during field deployment. The fully mechanical sealing structure eliminates the need for heat shrink tubes, adhesive tapes, or glue, making installation faster and more convenient while ensuring consistent sealing performance. With an IP68 waterproof rating and IK09 impact resistance, the enclosure is suitable for harsh outdoor conditions.

The internal design supports organized fiber routing and efficient splice management through multiple splice trays, allowing a maximum splicing capacity of up to 96 fibers. The enclosure also supports uncut cable entry and adapter ports, making it suitable for flexible FTTH distribution scenarios. The housing is made of durable PP+GF material that provides strong mechanical strength and resistance to UV radiation and environmental aging.

Specification

Model	208
Product Type	Fiber Optic Splice Closure
Dimensions	380 × 245 × 130 mm
Weight	3.0 – 4.0 kg
Housing Material	PP + GF
Sealing Type	Mechanical Seal
Waterproof Rating	IP68
Impact Rating	IK09
Cable Ports	1 uncut port (Φ10–17.5 mm), 8 outdoor adapter ports (customizable)
Splicing Capacity	96 fibers
Splice Tray Capacity	24 fibers
Number of Splice Trays	4
Tray Model	38#
Tray Capacity	24F
Tray Dimensions	112 × 65 × 8 mm
Splitter Support	1:8 Micro PLC
Single Fiber Splice	Supported
Ribbon Fiber Splice	Not Supported
Installation Method	Aerial / Wall Mounted / Pole Mounted
Product Package Size	380 × 245 × 130 mm
Inner Carton Size	395 × 255 × 165 mm (1 pc)
Outer Carton Size	540 × 410 × 350 mm (4 pcs)

Features

Compact closure design for FTTH network distribution
Buckle clamp locking structure for quick installation
Fully mechanical sealing without heat shrink or adhesive
IP68 waterproof protection for outdoor environments
IK09 impact resistance for improved durability
Supports uncut feeder cable entry
Up to 96 fiber splicing capacity
Modular splice tray structure for easy fiber management
Durable PP+GF housing material with UV resistance
Optional flame retardant and customized materials

Applications

FTTH access networks
Fiber distribution and branching points
Aerial fiber cable installations
Pole mounted fiber optic network nodes
Wall mounted fiber distribution points
Outdoor fiber optic cable protection

FAQ

What is the main purpose of the 208 fiber optic splice closure?
It is used as a distribution and splicing point in FTTH networks, connecting feeder cables to drop cables while protecting fiber splices from environmental damage.

What type of installation does this closure support?
The 208 closure supports aerial, wall-mounted, and pole-mounted installation methods, making it suitable for various outdoor network deployments.

Does the closure require heat shrink or sealing tape during installation?
No. The closure uses a fully mechanical sealing design with buckle clamps, eliminating the need for heat shrink tubes, adhesive tapes, or glue.

Can the adapter ports and cable entry configuration be customized?
Yes. The number of adapter ports and cable entry sizes can be customized according to project requirements and customer specifications.

Do you provide OEM or private label services for this product?
Yes. FiberMania supports OEM and ODM production, including customized branding, packaging, material options, and configuration adjustments.

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
