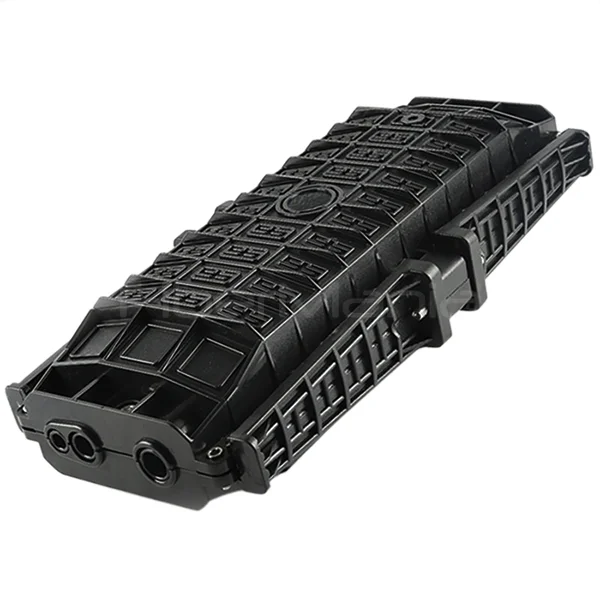

FSC-H4 Inline Fiber Optic Splice Closure: L×W×H: 450×220×110mm
Categories:
Product Highlights:
-
FSC-H4 Inline fiber optic splice closure supporting up to 96 fibers with re-enterable trays.
-
Integrated air-tight, waterproof, and dustproof design suitable for aerial, underground, and direct burial applications.
-
Ideal for through, branch, or mid-span splicing and cable repair.
-
FiberMania provides OEM/ODM customization and private-label solutions for tailored fiber network deployments.
Table of Contents
Description
The FSC-H4 Inline Fiber Optic Splice Closure is a high-capacity, durable solution designed to protect and organize fiber optic cable splices in aerial, underground, or direct burial applications. Measuring 450×220×110mm, this closure provides a secure, waterproof, and dustproof environment for fiber optic connections up to 96 fibers.
It features multiple cable entry and exit ports, a pressure testing valve, and an earth grounding device. Each splice tray supports 12 or 24 fiber cores, and the re-enterable design allows technicians to perform maintenance, repairs, or network expansion without compromising the seal. Its robust design ensures long-term reliability in harsh environmental conditions.
Specification
| Shape | Inline |
|---|---|
| Dimensions (L×W×H) | 450×220×110 mm |
| Fiber Capacity | Not specified |
| Material | Engineering Plastics |
| Installation Type | Indoor/Outdoor, Aerial, Duct, Wall, Burial |
| Sealing | Heat-shrinkable, Waterproof, Airtight |
| Re-entry | Yes |
| UV/Weather Resistance | Yes |
| Core per Tray | 12 or 24 |
Features
-
High-capacity closure supporting up to 96 fibers
-
L×W×H: 450×220×110mm
-
6 cable ports, accommodating cable diameters φ8~23mm
-
Core capacity per tray: 12 or 24 fibers
-
Re-enterable design for easy maintenance and expansion
-
Integrated air-tight, waterproof, and dustproof seal
-
Pressure testing valve and earth grounding device
-
RoHS compliant
-
Suitable for through, branch, or mid-span splicing
-
Ideal for cable repair and joint protection
Application
-
Aerial fiber optic network deployments
-
Underground duct and direct burial installations
-
Wall-mounted fiber optic installations
-
Mid-span, branch, or through splice locations
-
Cable repair and maintenance projects
-
High-density fiber optic networks
FAQ
Q: What is the maximum fiber capacity?
A: Up to 96 fibers.
Q: Can it be used in direct burial applications?
A: Yes, it is suitable for aerial, underground duct, and direct burial installations.
Q: How many fibers can each tray hold?
A: Each tray supports 12 or 24 fibers.
Q: Is the closure waterproof and dustproof?
A: Yes, it features an integrated air-tight, waterproof, and dustproof seal.
Q: Can FiberMania provide OEM/ODM customization?
A: Yes, custom sizes, core capacities, sealing types, and private-label branding are available.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
