GYTA53 Double Sheathed and Double Armored Outdoor Optical Fiber Cable

Name: GYTA53 Double Sheathed Armored Outdoor Optical Fiber Cable
SKU: GYTA53

P/N: GYTA53

Categories:

Outdoor FO Cable

Product Highlights:

GYTA53 double armored outdoor fiber optic cable, 2~144 G652D fibers
High mechanical strength with central steel member and crush-resistant loose tubes
Jelly-filled loose tubes and copolymer-coated armor for water-blocking and environmental protection
FiberMania provides flexible OEM/ODM customization including fiber count, jacket color, and pre-terminated options

Description

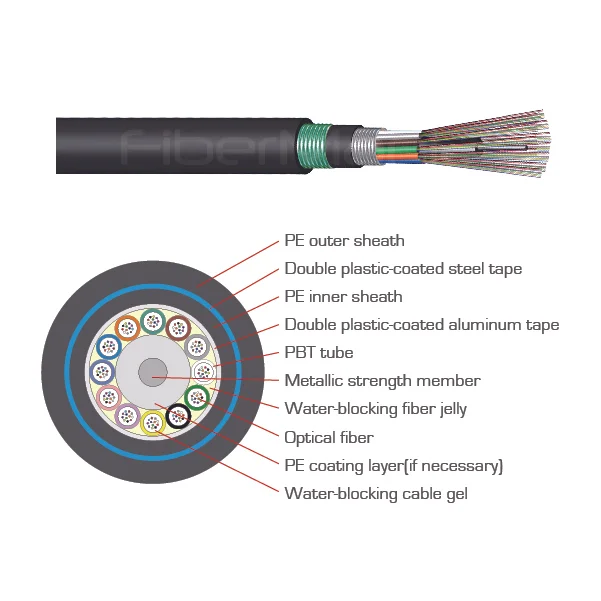

The GYTA53 outdoor optical fiber cable is a robust and high-performance solution for long-distance and local area network communications. Featuring a double armored structure with both inner and outer PE sheaths, this cable provides exceptional mechanical protection, crush resistance, and environmental durability. The central steel strength member, coupled with water-blocking jelly and a copolymer-coated aluminum tape, ensures high reliability even under harsh outdoor conditions.

Designed for 2 to 144 fibers, the cable uses G652D single mode fibers housed in high-strength loose tubes filled with hydrolysis-resistant compounds. The loose tube and filler arrangement maintains fiber integrity while allowing flexibility for installation in aerial or pipeline layouts. Special moisture-proofing measures, including APL moisture barriers and PSP moisture-resistant layers, ensure excellent water tightness for outdoor applications.

Specification

Fiber Type	Single Mode G652D
Fiber Count	2 ~ 144 Fibers
Central Strength Member	Steel Wire
Loose Tube	High-strength, jelly-filled, hydrolysis-resistant
Filler	PP filler (if necessary)
Water-blocking	Water-blocking jelly, APL moisture barrier, PSP moisture-proof layer
Armor	Copolymer-coated steel tape
Outer Sheath	PE (Black)
Inner Sheath	PE
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Installation Method	Aerial, Pipeline/Duct
Standards Compliance	ISO 9001, RoHS, IEC, Telcordia GR-20
Central strength member material	Steel wire/FRP
Central strength member size	1.4mm
Inner sheath material	PE/HDPE
Inner sheath size	2.0mm
Loose tube material	PBT
Loose tube size	Ф2.2(outer/inner)
Inner armored material	Aluminium tape
Outer armored material	Corrugated steel tape
Outer sheath material	PE/HDPE
Outer sheath diameter	1.7±0.2mm

Features

Double armored design with inner and outer PE sheaths
Central steel strength member for mechanical support
Jelly-filled loose tubes for fiber protection
Crush-resistant and flexible construction
Hydrolysis-resistant high-strength loose tubes
Copolymer-coated aluminum tape for moisture protection
RoHS compliant and ISO 9001 certified

Applications

Outdoor fiber optic distribution networks
Aerial cable deployment
Pipeline or duct installation
Long-distance telecommunication links
Local area network backbone connections

Characteristics

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound and 100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material

Number of fiber	24-144core
Filling rope	4-0
Moisture Barrier	Water blocking system
Central strength member		material	Steel wire/FRP
		size	1.4mm
Tube-filling		Tube filling compoun
Inner sheath		material	PE/HDPE
		diameter	2.0mm
Loose tube		material	PBT
		diameter	Ф2.2(outer/inner)
Inner armored		material	Aluminium tape
Outer armored		material	Corrugated steel tape
Outer sheath		material	PE/HDPE
		diameter	1.7±0.2mm

Quality Qulifications and Compliance

To get the detailed certification, please go to the Compliance.

Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
