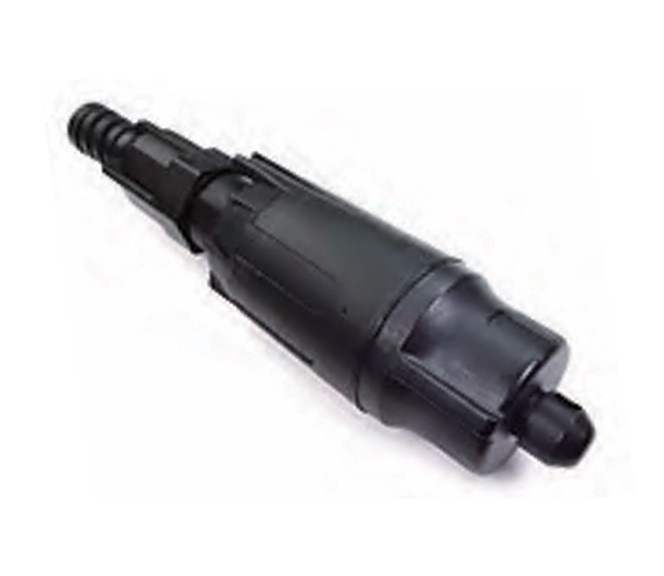

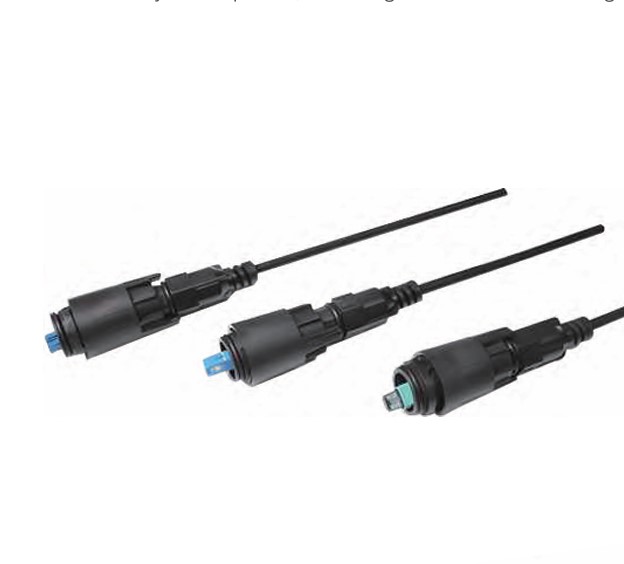

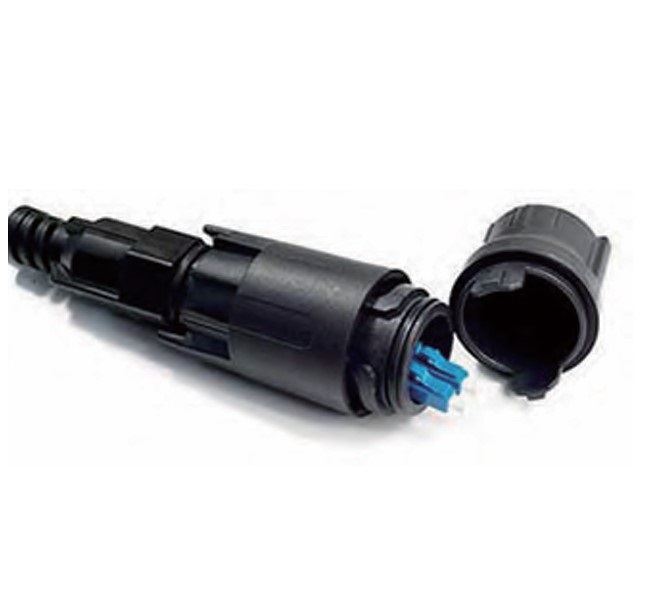

FTTA IP-FX LC/APC LC/APC Duplex Single Mode Patch Cord Black Jacket 3M
Categories:
Product Highlights:
- Professional-grade FTTA IP-FX duplex patch cord with LC/APC connectors, featuring weatherproof black jacket and single mode fiber for reliable outdoor telecommunications and base station connectivity.
- Fully compliant with TIA, IEC, and Telcordia standards, ensuring compatibility with all major network equipment manufacturers for 1G to 100G applications.
- FiberMania offers flexible OEM/ODM customization with 1-piece MOQ, 3-7 day lead time, free samples, and 16 years of manufacturing excellence backed by ISO certification and 24/7 technical support.
Table of Contents
Description
The FTTA IP-FX LC/APC to LC/APC Duplex Single Mode Patch Cord represents a professional-grade fiber optic solution engineered specifically for demanding outdoor and harsh environment applications. This 3-meter cable features premium LC/APC connectors on both ends, delivering superior optical performance with minimal insertion loss and return loss characteristics that exceed industry standards.
Constructed with a robust black jacket designed for UV resistance and weatherproofing, this duplex patch cord provides reliable connectivity in FTTA (Fiber to the Antenna) deployments, base station installations, and outdoor telecom infrastructure. The single mode fiber core enables long-distance signal transmission with exceptional bandwidth capacity, making it ideal for high-speed data networks and telecommunications backhaul applications.
The IP-rated design ensures this patch cord maintains consistent performance in challenging environmental conditions, including exposure to moisture, dust, and temperature variations. Each cable undergoes rigorous quality testing to guarantee compliance with international standards and deliver the reliability required for mission-critical fiber optic networks.
Specification
| Cable Length | 3 Meters |
|---|---|
| Fiber Type | Single Mode OS2 9/125μm |
| Connector Type A/B | LC/APC Duplex |
| Polish Type | APC (8° Angle) |
| Core Count | Duplex (2-fiber) |
| Jacket Material | UV-resistant LSZH or PVC |
| Insertion Loss | 0.3dB (Typical ≤0.2dB) |
| Return Loss | ≥60dB |
| Mechanical Life | 500 mating cycles |
| Tensile Strength | ≥100N |
| Crush Resistance | ≥500N/100mm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Standards Compliance | IEC 61754-20, TIA-568-C.3, GR-326-CORE |
Features
- LC/APC duplex connectors on both ends for low back reflection and optimal signal integrity
- Single mode fiber design supporting long-distance transmission up to 10km or more
- 3-meter cable length suitable for equipment rack connections and short outdoor runs
- Black UV-resistant jacket providing enhanced durability in outdoor environments
- IP-rated weatherproof construction for reliable performance in harsh conditions
- Low insertion loss (<0.3dB) and high return loss (>60dB) performance specifications
- Precision-polished APC (Angled Physical Contact) ferrules minimizing signal reflection
- Duplex configuration enabling bidirectional data transmission through single cable assembly
- Compatible with 1G, 10G, 40G, and 100G network equipment
- RoHS compliant materials meeting environmental safety standards
Applications
- FTTA (Fiber to the Antenna) base station connectivity and remote radio head connections
- Outdoor telecommunications infrastructure and cellular tower installations
- Wireless backhaul networks and distributed antenna systems (DAS)
- Data center external connections and inter-building fiber links
- Industrial automation networks requiring weatherproof fiber solutions
- Security and surveillance system backbone connections
- Smart city infrastructure and IoT network deployments
- Enterprise campus network outdoor interconnections
FAQ
Q: What is the difference between LC/APC and LC/UPC connectors, and why should I choose APC for FTTA applications?
A: LC/APC connectors feature an 8-degree angled polish that directs back reflections away from the fiber core, achieving return loss values exceeding 60dB compared to 50dB for UPC connectors. This makes APC essential for FTTA applications where radio frequency signals are transmitted over fiber, as even minimal back reflections can cause signal distortion and system performance degradation. APC connectors are mandatory for analog RF transmission and highly recommended for high-performance digital systems.
Q: Can I customize the cable length and connector types for my specific FTTA deployment?
A: Absolutely. FiberMania offers complete customization services with cable lengths from 1 meter to 100+ meters and alternative connector options including SC/APC, FC/APC, or hybrid configurations. Our minimum order quantity is just 1 piece, making custom solutions accessible for any project size. We provide free design consultation to optimize your cable specifications for your exact deployment requirements, and can deliver custom orders within 3-7 days.
Q: How does the IP rating affect the cable’s performance in outdoor environments?
A: The IP67/IP68 rating ensures the connectors and cable assembly are protected against dust ingress and temporary water immersion, which is critical for outdoor FTTA installations exposed to rain, humidity, and environmental contaminants. This protection maintains consistent optical performance and prevents moisture-related degradation that could cause increased insertion loss or connector corrosion over time. The UV-resistant black jacket provides additional protection against sunlight degradation for long-term outdoor reliability.
Q: What is your quality assurance process, and do you provide testing documentation?
A: Every FTTA patch cord undergoes comprehensive testing including insertion loss, return loss, and visual inspection using fiber microscopes before shipment. We provide detailed test reports with measured values for each cable, traceable serial numbers, and compliance certifications. Our ISO-certified manufacturing facility follows strict quality control procedures, and we offer free samples for your validation testing. All products come with quality guarantees, and our 24/7 technical support team is available to assist with any performance questions.
Q: Is this cable compatible with my existing network equipment, and will it support future bandwidth upgrades?
A: This LC/APC single mode patch cord is universally compatible with all standard single mode fiber equipment and supports data rates from 1G to 100G and beyond. The OS2 fiber specification ensures it will support future network upgrades without requiring cable replacement. We can verify compatibility with your specific equipment models and provide technical guidance on optimal configurations for your network architecture. Our team has extensive experience with equipment from all major manufacturers and can recommend the best solution for your requirements.
