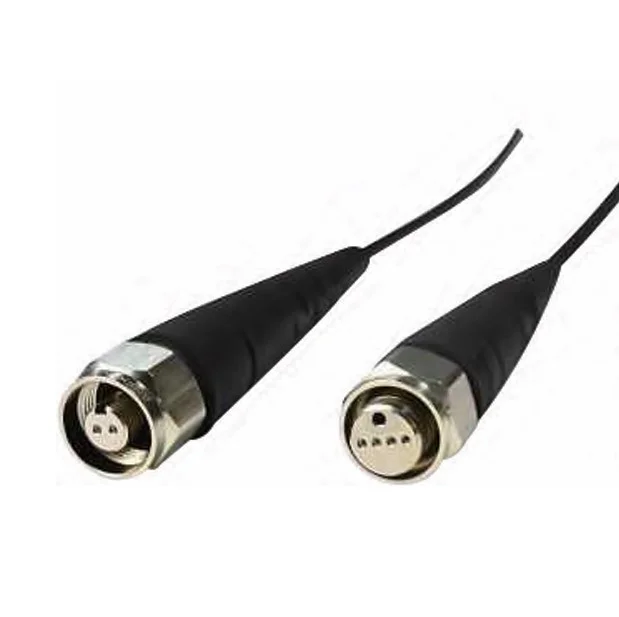

FTTA AARC Plug AARC 2F Single Mode Patch Cable Black 1.5M
Categories:
Product Highlights:
- Professional FTTA patch cable with AARC plug connectors on both ends, featuring 2-fiber single mode design and black outdoor jacket for reliable 1.5-meter tower-top and RRU-to-RRU connections.
- Ruggedized AARC-to-AARC configuration eliminates adapters and provides superior environmental sealing for 4G/5G wireless infrastructure in harsh outdoor conditions.
- FiberMania provides expert OEM/ODM customization, 1pc MOQ, rapid 3-7 day production.
Table of Contents
Description
The FTTA AARC Plug to AARC 2F Single Mode Patch Cable is a specialized fiber optic solution engineered for direct AARC-to-AARC connections in wireless telecommunications infrastructure. This 1.5-meter cable features AARC connectors on both ends, providing a robust, weatherproof fiber link specifically designed for remote radio unit installations, tower-top equipment, and outdoor base station deployments where both connection points utilize AARC interfaces.
Built with a durable black outdoor-rated jacket, this 2-fiber single mode patch cable delivers exceptional performance in harsh environmental conditions. The AARC connectors on both ends ensure superior mechanical durability and environmental sealing, making this cable ideal for cellular infrastructure where equipment is exposed to extreme temperatures, moisture, UV radiation, and physical stress. The single mode fiber core supports long-distance signal transmission with minimal loss, meeting the demanding requirements of modern 4G LTE and 5G wireless networks.
Specification
| Cable Length | 1.5 Meters |
|---|---|
| Fiber Type | Single Mode OS2 9/125μm |
| Connector Type A/B | AARC Plug |
| Polish Type | UPC (Physical Contact) |
| Cable Configuration | 2-fiber |
| Jacket Material | UV-resistant Outdoor Rated |
| Insertion Loss | ≤0.3dB per connector (typical ≤0.25dB) |
| Return Loss | ≥50dB |
| Operating Wavelength | 1310nm / 1550nm |
| Minimum Bend Radius | 30mm |
| Tensile Strength | ≥100N |
| Crush Resistance | ≥500N/100mm |
| Durability | >500 mating cycles |
| Cable Diameter | Approximately 3.0-5.0mm |
| Standards Compliance | AARC specs, IEC 60794-1-2, GR-326-CORE |
| Environmental Compliance | RoHS 2.0, REACH |
| Protocol Support | CPRI, eCPRI |
Features
- AARC plug connectors on both ends for direct RRU-to-RRU or RRU-to-equipment connections
- 2-fiber single mode (OS2 9/125μm) configuration for bidirectional transmission
- 1.5-meter cable length suitable for tower-top and equipment rack applications
- Black UV-resistant jacket engineered for outdoor durability
- Ruggedized AARC connectors providing superior environmental protection
- Weatherproof design withstanding extreme temperature variations
- Low insertion loss optimized for CPRI and eCPRI signal transmission
- Push-pull or threaded locking mechanism for secure connections
- Compatible with major RRU manufacturers’ AARC interface specifications
- RoHS compliant materials meeting environmental safety standards
Applications
- Direct RRU-to-RRU fiber connections in FTTA deployments
- Remote radio head installations on cellular towers
- 4G LTE and 5G base station infrastructure
- Tower-top equipment interconnections
- Outdoor wireless equipment cabinet connections
- Macro cell and small cell network installations
- Telecom infrastructure expansion and modernization projects
FAQ
Q: What are the advantages of using AARC-to-AARC cables compared to using adapters with standard connectors?
A: AARC-to-AARC cables eliminate adapter assemblies, reducing insertion loss, potential failure points, and installation complexity. This direct connection approach provides superior environmental sealing, improved mechanical stability, and faster installation times at tower-top locations where working conditions are challenging. The integrated design also reduces the total number of components that require inspection and maintenance over the equipment lifecycle.
Q: Can this cable be used for both 4G and 5G network deployments?
A: Yes, this AARC patch cable supports both 4G LTE CPRI protocols and 5G eCPRI protocols. The single mode OS2 fiber provides sufficient bandwidth and low latency for current and future wireless standards. The cable’s specifications meet the stringent requirements of both technologies, making it suitable for network modernization projects where 4G infrastructure is being upgraded to support 5G services.
Q: Do you offer custom cable lengths and can you verify compatibility with our specific RRU models?
A: Absolutely. FiberMania manufactures AARC cables in any length from 0.5 meters to 50+ meters based on your tower configuration and equipment spacing. Our engineering team can verify compatibility with your specific RRU models from any manufacturer and provide connector configuration recommendations. With 1-piece MOQ and 3-7 day lead time, custom solutions are practical for projects of any size. Contact us with your equipment details for compatibility verification and technical guidance.
Q: What testing and quality documentation do you provide with AARC cables?
A: Every AARC patch cable undergoes comprehensive factory testing including insertion loss measurement, return loss verification, AARC connector mechanical functionality testing, and visual inspection. We provide detailed test reports with actual measured values for each cable, compliance certifications, traceable serial numbers, and complete technical documentation. Our ISO-certified manufacturing process ensures consistency, and we offer free samples for your field validation testing before placing volume orders.
Quality Qulifications and Compliance
To get the detailed certification, please go to the Compliance.
Please Note: Our products comply with all internationally recognized and industry-standard specifications. For customized or special requirement products, we carry out testing and standards in accordance with the conformity criteria specified in the contract.
